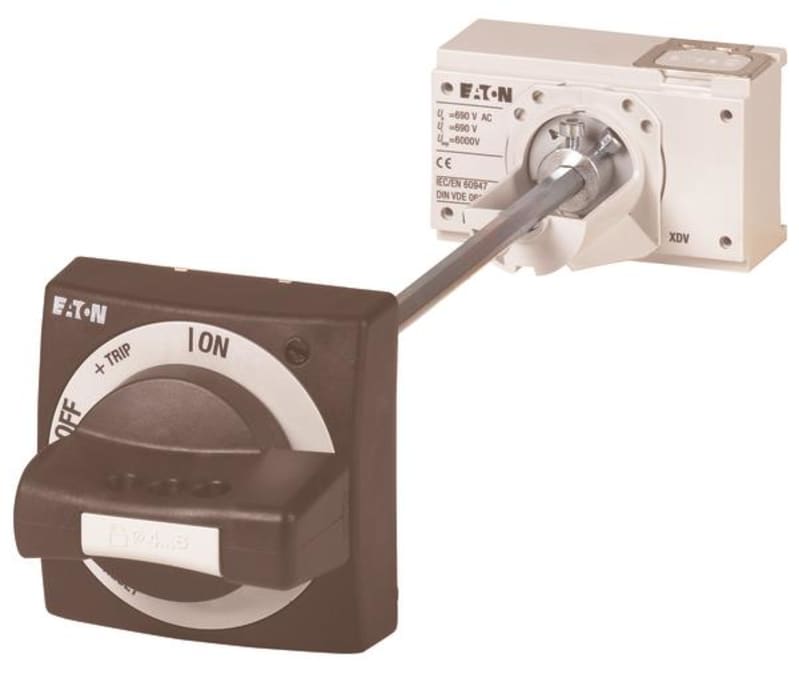

Eaton NZM1-XTVD-NA
Pricing
Request a quote
We reply within 24 hours
Overview
Eaton NZM1-XTVD-NA is listed under Electrical Components / Circuit Breaker Accessories. Sales unit: pcs; Eaton catalogue number: 271445; Depth: 75 mm; Height: 190 mm; Width: 90 mm; Weight: 0.619 kg.
Technical Specifications
- Manufacturer part number (MPN)
- NZM1-XTVD-NA
- EAN / GTIN
- 4015082714451
- Sales unit
- pcs
- Eaton catalogue number
- 271445
- Depth
- 75 mm
- Height
- 190 mm
- Width
- 90 mm
- Weight
- 0.619 kg
- Compliances
- UL/CSA; IEC; RoHS conform
- Certifications
- UL (Category Control Number DIHS); CE marking; UL listed; CSA (Class No. 1437-01); CSA (File No. 22086); CSA-C22.2 No. 5-09; IEC60947; CSA certified; UL (File No. E140305); UL489
- Features
- Lockable; Standard: black / gray
- Fitted with
- Padlock
- Frame
- NZM1
- Number of poles
- Single-pole
- Special features
- Complete including rotary drive and coupling parts Extension shaft additionally required. Cannot be combined with mechanical interlock External warning plate/designation label can be clipped on. Door coupling rotary handle for operating the switch through a closed control panel door
- Suitable for
- Power circuit breaker; Switch disconnector
- Type
- Accessory Door coupling rotary handle
- Used with
- NZM1, N1
- Color
- Black
- Cover/door type
- Door opens only with active rotation beyond the 0 position; Door interlock not defeated in the locked OFF position.
- Degree of protection / NEMA enclosure type
- IP66; 4X. 12
- Lock number
- Single lockable
- Locking facility
- Lockable on the 0 position on the handle using up to 3 padlocks; With door interlock
- Colour
- Black
- Lockable
- Yes
- Padlock locking
- Yes
- Suitable for emergency stop
- No
- With extension shaft
- No
- With restart blockage
- No
- Suitable for power circuit breaker
- Yes
- Suitable for switch disconnector
- Yes
- Degree of protection (NEMA)
- 4X, 12
- With key lock
- No
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 4015082714451
- SAP 1000252233
- Code 81131774
Product Documentation
