Eaton

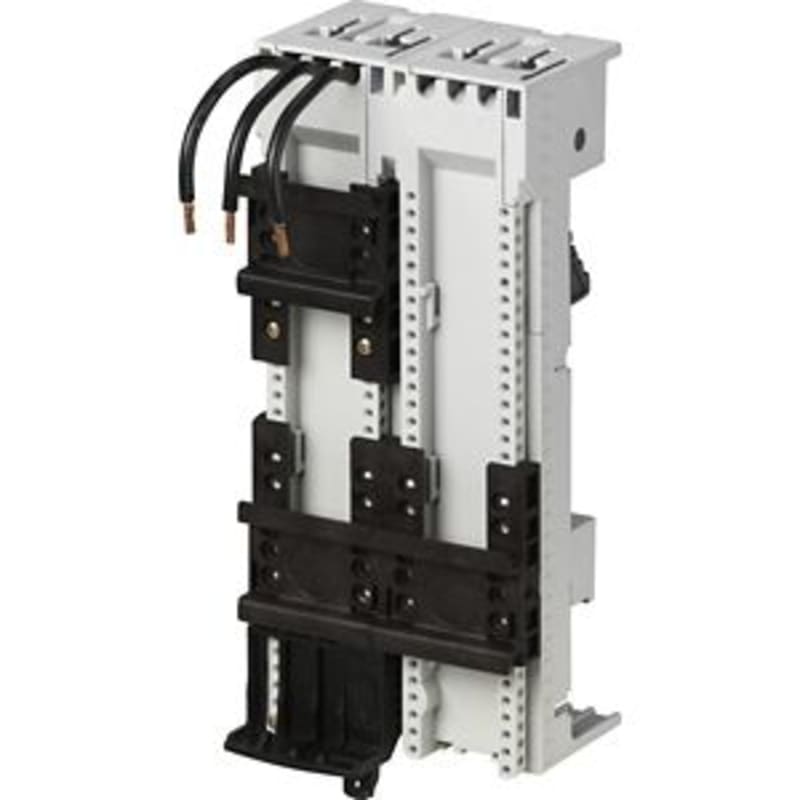

Eaton Power RAIL Adapter 90mm 32A 199470
Part numberBBA0R-32-PIEAN / GTIN4015081978762HS code8536.90
Electrical Components
Busbar Systems
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Eaton BBA0R-32-PI placeholder - to be supplied later.
Technical Specifications
- Manufacturer part number (MPN)
- BBA0R-32-PI
- EAN / GTIN
- 4015081978762
- Sales unit
- pcs
- Package quantity
- 2 pcs
- Eaton catalogue number
- 199470
- Depth
- 200 mm
- Height
- 73 mm
- Width
- 90 mm
- Weight
- 0.5 kg
- Certifications
- CE
- Special features
- Terminal capacity: 6 mm² (AWG 10)
- Nominal current
- 32 A
- Type
- Busbar adapter SASY Busbar system 60 mm
- Ambient operating temperature - max
- 55 °C
- Ambient operating temperature - min
- -25 °C
- Electric connection type
- 3 conductors AWG 10; Push in terminals
- Rated operation current (Ie)
- 32 A
- Voltage rating at AC
- 690 V
- Adapter width
- 90 mm
- Busbar distance
- 60 mm
- Busbar thickness - max
- 10 mm
- Busbar thickness - min
- 5 mm
- Mounting rail armament
- 2 mounting rails
- Number of DIN rails
- 1
- Rail width
- 35 mm
- Type of electric connection
- 3 conductors AWG 10
- Rated current In
- 32 A
- Min. busbar thickness
- 5 mm
- Max. busbar thickness
- 10 mm
- Width of the adaptor
- 90 mm
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4015081978762
- SAP 1200693663
- Code 83537260
Product Documentation
Document preview: EATON POWER RAIL ADAPTER 90MM 32A 199470 (BBA0R-32-PI) — Specification Data Sheet (OEM)
