Eaton

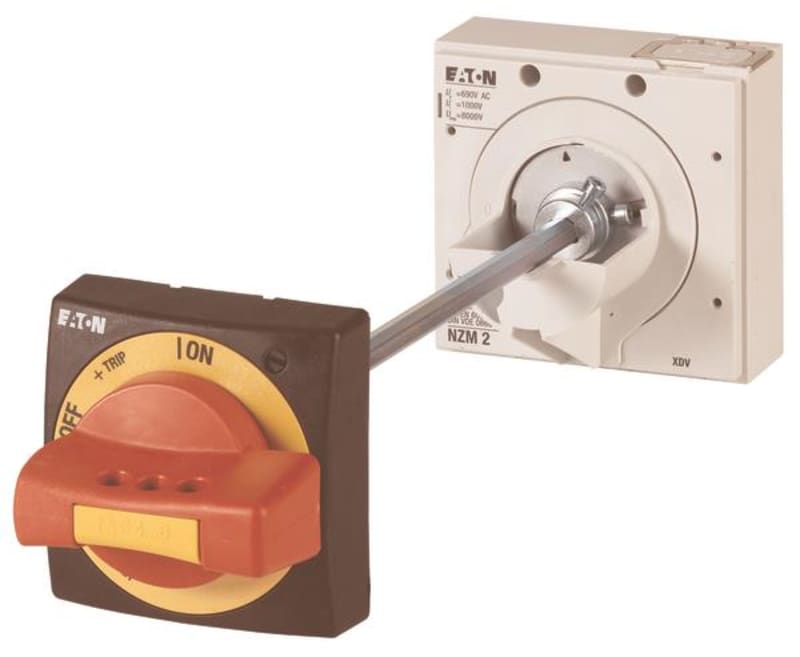

Eaton NZM2-XHBR
Part numberNZM2-XHBREAN / GTIN4015082666330HS code8538.90
Electrical Components
Circuit Breaker Accessories
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Overview
Eaton NZM2-XHBR is listed under Electrical Components / Circuit Breaker Accessories. Sales unit: pcs; Eaton catalogue number: 266633; Depth: 190 mm; Height: 110 mm; Width: 110 mm; Weight: 0.948 kg.
Technical Specifications
- Manufacturer part number (MPN)
- NZM2-XHBR
- EAN / GTIN
- 4015082666330
- Sales unit
- pcs
- Eaton catalogue number
- 266633
- Depth
- 190 mm
- Height
- 110 mm
- Width
- 110 mm
- Weight
- 0.948 kg
- Compliances
- IEC; UL/CSA; RoHS conform
- Certifications
- UL489; UL (File No. E140305); IEC60947; CSA (Class No. 1437-01); CSA (File No. 22086); UL (Category Control Number DIHS); CE marking; CSA certified; UL listed; CSA-C22.2 No. 5-09
- Features
- With red door coupling rotary handle for use of switch as emergency switching off device to IEC/EN 60204-1, VDE 0113 part 1; Lockable
- Fitted with
- Door coupling rotary handle with rotary drive; NZM...-XV4 extension shaft; Black and yellow lightning symbol; External warning plate/marking plate in German/English; Extension shaft; Padlock
- Frame
- NZM2
- Special features
- External warning plate/designation label can be clipped on. For enhanced busbar tag shroud on the incomer side, please order IP2X protection against contact with a finger. Kit for use as a main switch
- Suitable for
- Switch disconnector; Power circuit breaker; Emergency stop
- Type
- Accessory Main switch assembly kit
- Used with
- NZM2(-4); N(S)2(-4); PN2(-4)
- Color
- Red
- Degree of protection / NEMA enclosure type
- IP66; 4X. 12
- Locking facility
- Lockable on the 0 position on the handle using up to 3 padlocks; With door interlock; Lockable on the switch in the 0 position
- Colour
- Black
- Lockable
- Yes
- Padlock locking
- Yes
- Suitable for emergency stop
- Yes
- With extension shaft
- Yes
- With restart blockage
- No
- Suitable for power circuit breaker
- Yes
- Suitable for switch disconnector
- Yes
- Degree of protection (NEMA)
- 4X, 12
- With key lock
- No
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 4015082666330
- SAP 1000289372
- Code 81159378
Product Documentation
