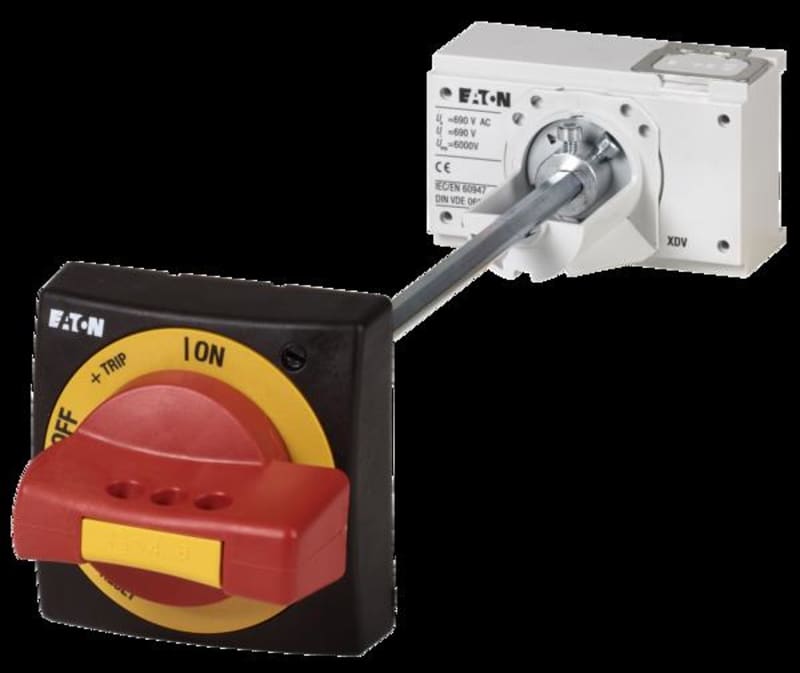

Eaton NZM1-XHBR
Pricing
Request a quote
We reply within 24 hours
Overview
Eaton NZM1-XHBR is listed under Electrical Components / Circuit Breaker Accessories. Sales unit: pcs; Eaton catalogue number: 266632; Depth: 190 mm; Height: 90 mm; Width: 90 mm; Weight: 0.786 kg.
Technical Specifications
- Manufacturer part number (MPN)
- NZM1-XHBR
- EAN / GTIN
- 4015082666323
- Sales unit
- pcs
- Eaton catalogue number
- 266632
- Depth
- 190 mm
- Height
- 90 mm
- Width
- 90 mm
- Weight
- 0.786 kg
- Compliances
- IEC; UL/CSA; RoHS conform
- Certifications
- UL (File No. E140305); CE marking; UL (Category Control Number DIHS); IEC60947; CSA (Class No. 1437-01); CSA (File No. 22086); UL listed; UL489; CSA-C22.2 No. 5-09; CSA certified
- Features
- Lockable; With red door coupling rotary handle for use of switch as emergency switching off device to IEC/EN 60204-1, VDE 0113 part 1
- Fitted with
- NZM...-XV4 extension shaft; Black and yellow lightning symbol; External warning plate/marking plate in German/English; Extension shaft; Door coupling rotary handle with rotary drive; Padlock
- Frame
- NZM1
- Special features
- External warning plate/designation label can be clipped on. For enhanced busbar tag shroud on the incomer side, please order IP2X protection against contact with a finger. Kit for use as a main switch
- Suitable for
- Emergency stop; Switch disconnector; Power circuit breaker
- Type
- Accessory Main switch assembly kit
- Used with
- N(S)1(-4); PN1(-4); NZM1(-4)
- Color
- Red
- Degree of protection / NEMA enclosure type
- IP66; 4X. 12
- Locking facility
- Lockable on the switch in the 0 position; Lockable on the 0 position on the handle using up to 3 padlocks; With door interlock
- Colour
- Black
- Lockable
- Yes
- Padlock locking
- Yes
- Suitable for emergency stop
- Yes
- With extension shaft
- Yes
- With restart blockage
- No
- Suitable for power circuit breaker
- Yes
- Suitable for switch disconnector
- Yes
- Degree of protection (NEMA)
- 4X, 12
- With key lock
- No
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 4015082666323
- SAP 1000289102
- Code 81159273
Product Documentation
More from Eaton
Eaton
Steady light, Blue, without Lamp (SL4-L-B)
Eaton
Panel board m/DIN B=600mm H=760
BP-O-600/7-C
Eaton
DG1 variable-frequency drive 230V: 45kW (DG1-32170FB-C21C)
Eaton
P3 Main switch, 80 A,4 pole, Form EA/SVB (1414030)
Eaton

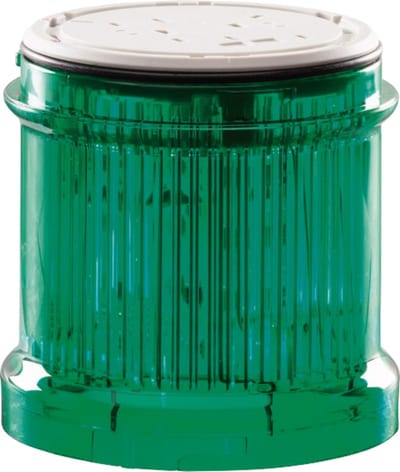

LED flashing light, Green, 230V (SL7-BL230-G)
Eaton

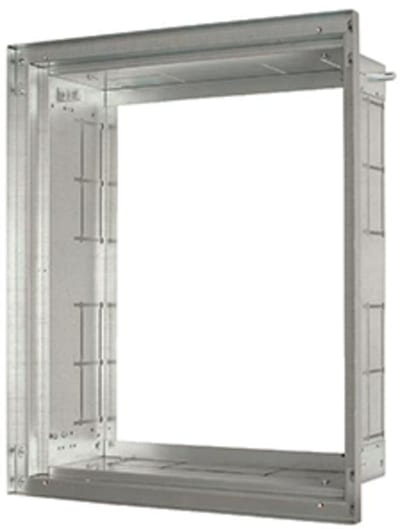

Wall box H×W×D=460X400X180MM
BPZ-WB3S-400/4/1
Eaton

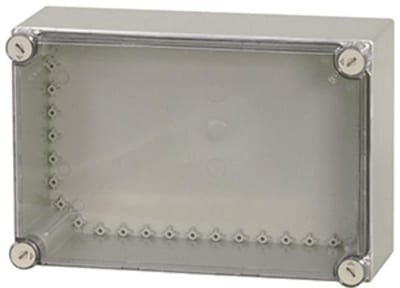

Enclosure H×W×D=250X375X150MM (CI43X-125)
Eaton

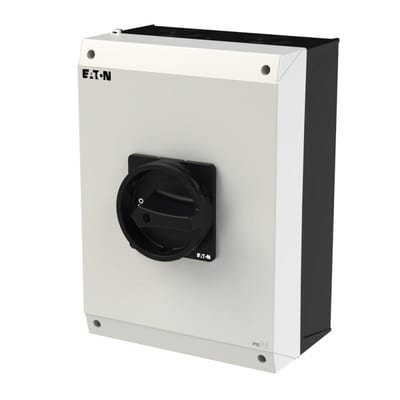

P3 Main switch, 80 A,3 pole, Form I5/SVB (1414090)
