Eaton

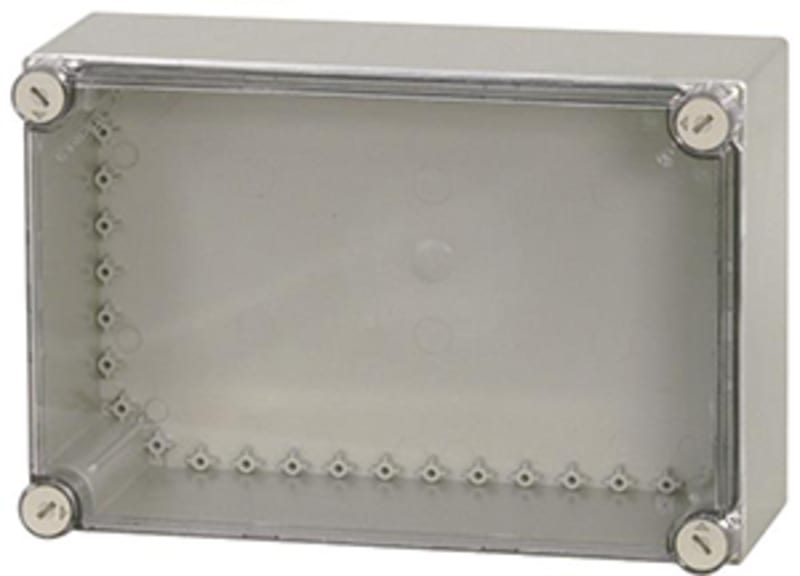

Enclosure H×W×D=250X375X150MM (CI43X-125)
Part numberCI43X-125EAN / GTIN4015080199007HS code8538.10
Enclosures
Industrial Enclosures
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Overview
Eaton Enclosure H×W×D=250X375X150MM (CI43X-125) is listed under Enclosures / Industrial Enclosures. Sales unit: pcs; Eaton catalogue number: 019900; Depth: 150 mm; Height: 250 mm; Width: 375 mm; Weight: 2.523 kg.
Technical Specifications
- Manufacturer part number (MPN)
- CI43X-125
- EAN / GTIN
- 4015080199007
- Sales unit
- pcs
- Eaton catalogue number
- 019900
- Depth
- 150 mm
- Height
- 250 mm
- Width
- 375 mm
- Weight
- 2.523 kg
- Compliances
- RoHS conform
- Certifications
- EN 61439-2; EN 62208
- Special features
- Smooth side plates, without knockouts Sealable cover fasteners Include fixing straps for wall mounting
- Type
- Basic enclosure Individual enclosures xEnergy Safety Ci
- Features
- UV resistance beneath protective shield; Cover with overpressure release
- Surface finishing
- Resistant to corrosion
- Degree of protection
- Other; IK10; IP65
- Enclosure material
- Plastic
- Surface protection
- Other
- Chemical resistance
- Resistant against: acids < 10 %, mineral oil, alcohol, gasoline, greases, salt solutions; Not resistant to: alkalis, benzene; Partly resistant to: Acids > 10 %
- Circuit integrity
- Other
- Base type
- Plain
- Unit type
- Stand-alone device
- Built-in depth
- 125 mm
- Color
- Transparent, smoky gray (cover); Light gray (RAL 7035, base); Gray
- Cover/door color
- Transparent
- Cover/door model
- Closed
- Cover/door type
- Optional; Transparent; None
- Number of openings (flange plates)
- 0
- Plate thickness (cabinet)
- 9 mm
- Plate thickness (cover/door)
- 6 mm
- RAL-number
- 7035
- Width in number of modular spacings
- 15
- Ambient operating temperature details
- -40 °C - 80 °C
- Material
- Halogen free; Glass-fibre reinforced polycarbonate (base); Non-reinforced polycarbonate (cover)
- Mounting method
- Surface mounted (plaster)
- Number of rows
- 0
- Temperature resistance
- Temperature resistant: 80 °C (gasket); Temperature resistant: 85 °C (enclosure bolt); Temperature resistant: -40 °C - 120 °C (enclosure)
- Flammability characteristics (UL)
- V1 (base) (UL94); V2 (cover) (UL94)
- Protection class
- II
- Number of modules
- 1
- Surface treatment
- Resistant to corrosion
- Internal depth
- 125 mm
- Mounting depth with mounting plate
- 125 mm
- Nominal current
- 1600 A
- Number of conduit inlets
- 0
- Suitable for
- Lightning protection; Outdoor use
- Saline spray resistance
- IEC 60068-2-11
- Enclosure material quality
- Other
- Type of coating
- Other
- Dimensions
- 250×375×150 mm
- Colour
- Grey
- With mounting plate
- No
- Impact strength
- IK10
- Country of origin
- Finland
Standards & Compliance
- HS Code
- 8538.10
Cross References
- EAN 4015080199007
- SAP 1000289575
- Code 850709
Product Documentation
Document preview: Enclosure HxBxD=250x375x150mm (CI43X-125) — Specification Data Sheet (OEM)
