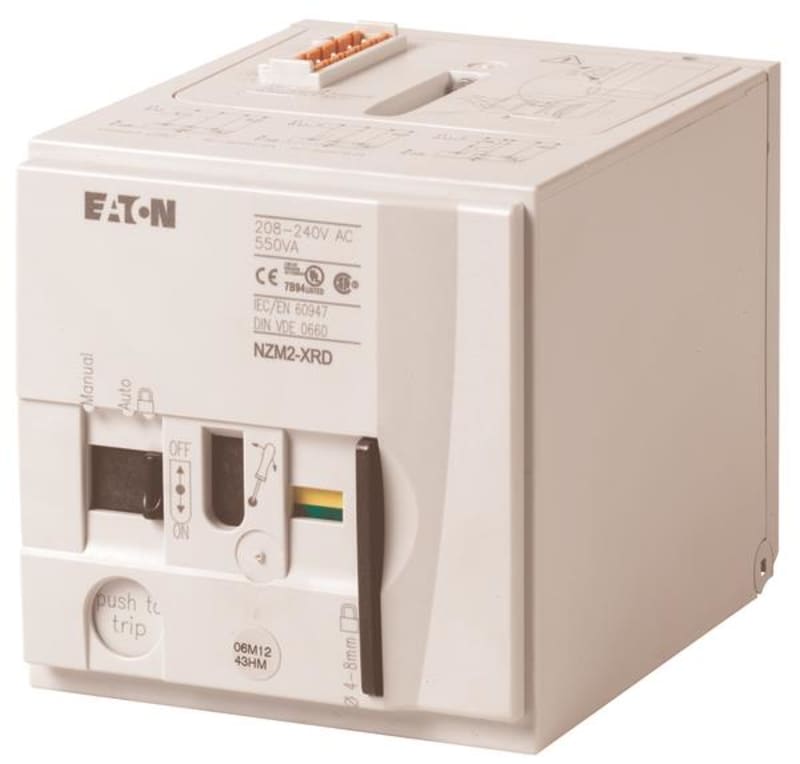

Eaton NZM2-XRD24-30DC
Pricing
Request a quote
We reply within 24 hours
Overview
Eaton NZM2-XRD24-30DC is listed under Electrical Components / Circuit Breaker Accessories. Sales unit: pcs; Eaton catalogue number: 115393; Depth: 150 mm; Height: 105 mm; Width: 105 mm; Weight: 1.25 kg.
Technical Specifications
- Manufacturer part number (MPN)
- NZM2-XRD24-30DC
- EAN / GTIN
- 4015081151257
- Sales unit
- pcs
- Eaton catalogue number
- 115393
- Depth
- 150 mm
- Height
- 105 mm
- Width
- 105 mm
- Weight
- 1.25 kg
- Compliances
- IEC; UL/CSA; RoHS conform
- Certifications
- UL (File No. E140305); CE marking; UL listed; CSA-C22.2 No. 5-09; CSA (Class No. 1437-01); UL489; CSA (File No. 22086); IEC60947; UL (Category Control Number DIHS); CSA certified
- Frame
- NZM2
- Number of poles
- Three-pole/Four-pole
- Type
- Accessory Remote operator, standard
- Used with
- NZM2(-4); N(S)2(-4)
- Breaking time
- 110 ms - 170 ms
- Closing delay
- 110 ms - 170 ms
- Number of operations per hour - max
- 120
- Operating voltage - max
- 1.1 x Us
- Operating voltage - min
- 0.85 x Us
- Power consumption
- 450 W (24 - 30 V DC)
- Rated control supply voltage (Us) at DC - max
- 30 V
- Rated control supply voltage (Us) at DC - min
- 24 V
- Signal duration of remote operator at switch off - min
- 100 ms
- Signal duration of remote operator at switch on - min
- 100 ms
- Voltage rating
- 24 - 30 V DC
- Voltage tolerance - max
- 1.1
- Voltage tolerance - min
- 0.85
- Voltage type
- DC
- Lifespan, mechanical
- 20000 operations
- Switch drive type
- Motor drive
- Terminal capacity (solid/flexible conductor)
- 18 - 14 AWG; 0.75 mm² - 2.5 mm² with ferrule
- Rated control supply voltage DC
- 24–30 V
- Type of switch drive
- Motor drive
- Voltage type for actuating
- AC
- Country of origin
- Romania
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 4015081151257
- SAP 1200237610
- Code 82210457
Product Documentation
