Eaton

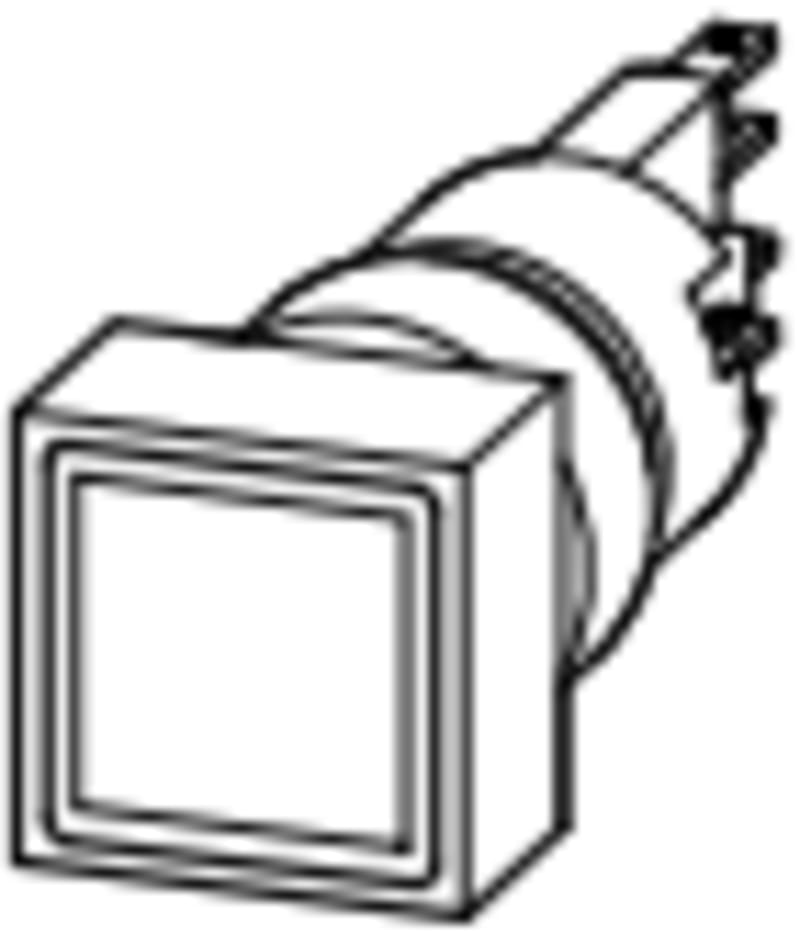

Indicator LAMP FLAT RMQ 16 Green
Part number088337EAN / GTIN4015080883371HS code8531.80
Control & Automation
Pushbuttons & Pilot Lights
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Overview
Eaton Indicator LAMP FLAT RMQ 16 Green (part number 088337) is listed under Control & Automation / Pushbuttons & Pilot Lights. Sales unit: pcs; Package quantity: 10 pcs; Eaton catalogue number: 088337; Depth: 59 mm; Height: 18 mm; Width: 18 mm.
Technical Specifications
- Manufacturer part number (MPN)
- 088337
- EAN / GTIN
- 4015080883371
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Eaton catalogue number
- 088337
- Depth
- 59 mm
- Height
- 18 mm
- Width
- 18 mm
- Weight
- 0.009 kg
- Certifications
- IEC/EN 60947-5; UL File No.: E29184; CSA; UL 508; CE; IEC/EN 60947; CSA Class No.: 3211-03; CSA File No.: 46552; UL; UL Category Control No.: NKCR; CSA-C22.2 No. 14-05
- Type
- Indicator lights
- Fitted with
- Front ring; LED W2x4, 6d, max. 30 V, 1 W
- Pollution degree
- 3
- Climatic proofing
- Damp heat, constant, to IEC 60068-2-78; Damp heat, cyclic, to IEC 60068-2-30
- Connection to SmartWire-DT
- No
- Rated impulse withstand voltage (Uimp)
- 800 V AC
- Bezel color
- Black
- Shock resistance
- Mechanical, According to IEC/EN 60068-2-27; 40 g, Mechanical, According to IEC/EN 60068-2-27, Sinusoidal shock 11 ms
- Bezel material
- Plastic
- Terminal capacity
- 0.5 - 1.0 mm²
- Lens color
- Green
- Design
- Flat
- Mounting position
- As required
- Terminal size
- 2.8 x 0.8 mm to DIN 46244, Blade terminal; 2.8 x 0.8 mm to DIN 46247 and IEC 60760, Fast-on connectors
- Overvoltage category
- III
- Degree of protection
- NEMA 1
- Ambient operating temperature - max
- 60 °C
- Ambient operating temperature - min
- -25 °C
- Ambient operating temperature (enclosed) - max
- 40 °C
- Ambient operating temperature (enclosed) - min
- 25 °C
- Opening diameter
- 16 mm
- Opening height
- 16 mm
- Rated insulation voltage (Ui)
- 250 V
- Rated operational voltage (Ue) at AC - max
- 24 V
- Suitable for number of built-in signal lights
- 1
- Product category
- RMQ16
- Size
- Front dimensions: 18 x 18 mm
- Degree of protection (front side)
- IP65
- Lens type
- Flat; Square
- Hole diameter
- 16 mm
- Colour lens
- Green
- Colour front ring
- Black
- Degree of protection (IP), front side
- IP65
- Height opening
- 6 mm
- Material front ring
- Plastic
- With front ring
- Yes
- Construction type lens
- Square
- Type of lens
- Flat
- Country of origin
- China
- Width opening
- 16 mm
Standards & Compliance
- HS Code
- 8531.80
Cross References
- EAN 4015080883371
- SAP 1000044473
- Code 8776471
Product Documentation
Document preview: INDICATOR LAMP FLAT RMQ 16 GREEN (088337) — Specification Data Sheet (OEM)
More from Eaton
Eaton
Wall box H×W×D=1760X1000X180MM
BPZ-WB3S-1000/17/1
Eaton
Eaton IZMX-MIL32C-W63-1
Eaton
Eaton IZMX40N4-V40F-1
Eaton

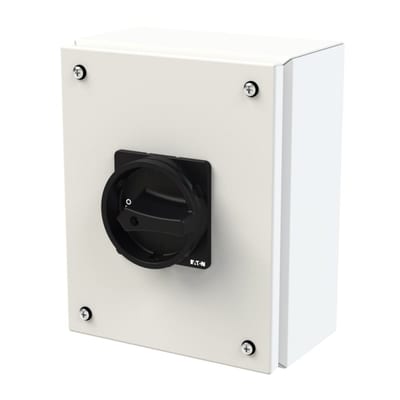

P3 Main switch, 80 A, 4 pole, Form SE (1414064)
Eaton

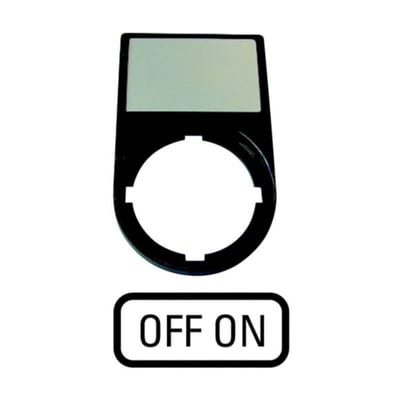

Label Holder, RMQ (M22S-ST-GB10)
Eaton

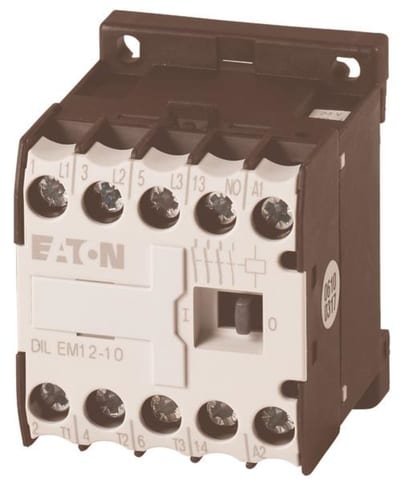

Contactor DILEM12-10-G(24VDC)
Eaton

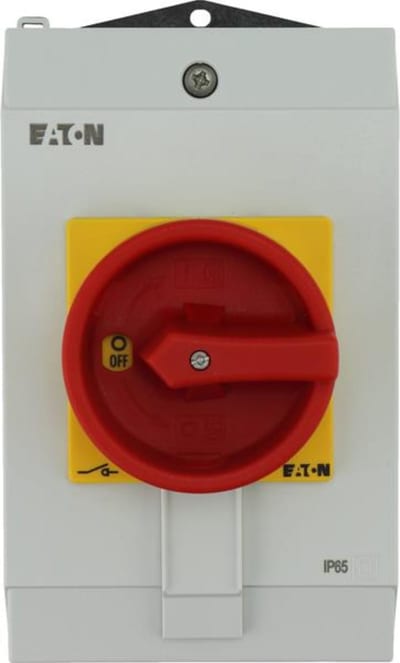

Safety Switch,P1-40/I2H/SVB/N
Eaton

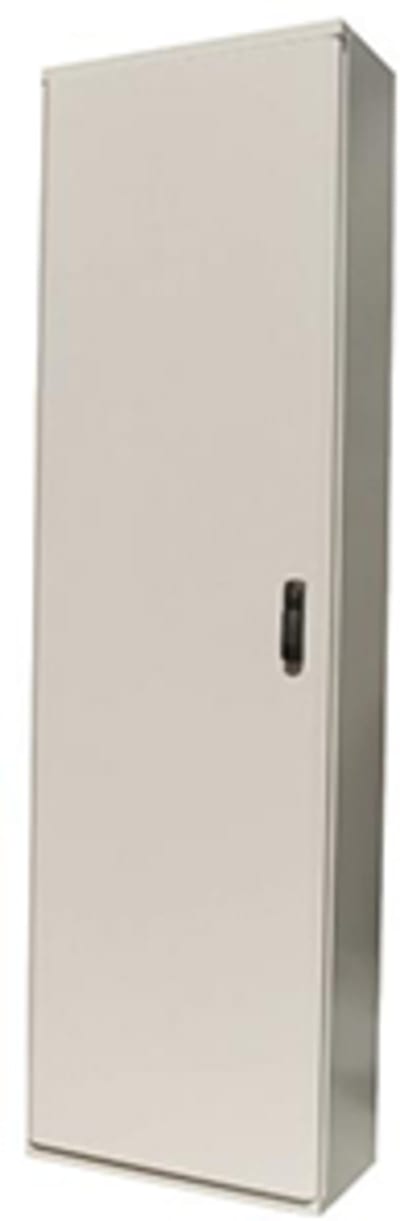

Cabinet B=800 H=1 760 D=300
