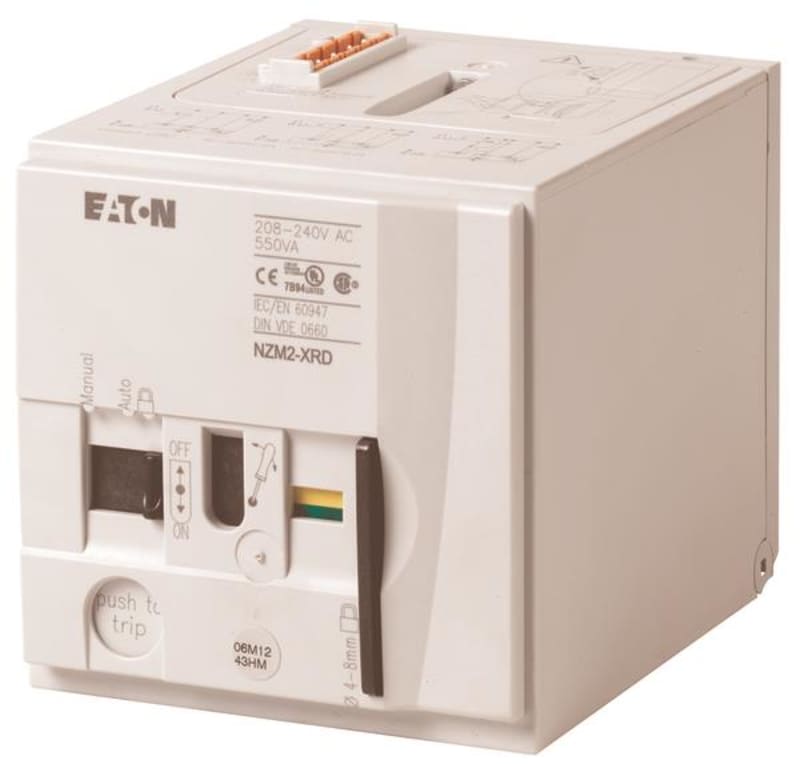

Eaton NZM2-XRD208-240AC
Pricing
Request a quote
We reply within 24 hours
Overview
Eaton NZM2-XRD208-240AC is listed under Electrical Components / Circuit Breaker Accessories. Sales unit: pcs; Eaton catalogue number: 115391; Depth: 150 mm; Height: 105 mm; Width: 105 mm; Weight: 1.25 kg.
Technical Specifications
- Manufacturer part number (MPN)
- NZM2-XRD208-240AC
- EAN / GTIN
- 4015081151233
- Sales unit
- pcs
- Eaton catalogue number
- 115391
- Depth
- 150 mm
- Height
- 105 mm
- Width
- 105 mm
- Weight
- 1.25 kg
- Compliances
- CE Marked; UL/CSA; IEC; RoHS conform
- Certifications
- IEC 60947; UL 489; UL listed; CSA-C22.2 No. 5-09; CE marking; CSA (File No. 22086); UL489; CSA certified; UL (Category Control Number DIHS); CSA (Class No. 1437-01); UL (File No. E140305)
- Frame
- NZM2
- Number of poles
- Three-pole/Four-pole
- Type
- Accessory Remote operator, standard
- Used with
- N(S)2(-4); NZM2(-4)
- Breaking time
- 110 ms - 170 ms
- Closing delay
- 110 ms - 170 ms
- Number of operations per hour - max
- 120
- Operating voltage - max
- 1.1 x Us
- Operating voltage - min
- 0.85 x Us
- Power consumption
- 550 VA (110 - 130 V AC)
- Rated control supply voltage (Us) at AC, 50 Hz - max
- 240 V
- Rated control supply voltage (Us) at AC, 50 Hz - min
- 208 V
- Rated control supply voltage (Us) at AC, 60 Hz - max
- 240 V
- Rated control supply voltage (Us) at AC, 60 Hz - min
- 208 V
- Rated operating frequency
- 50 Hz
- Signal duration of remote operator at switch off - min
- 100 ms
- Signal duration of remote operator at switch on - min
- 100 ms
- Voltage rating
- 208 - 240 V 50/60 Hz
- Voltage tolerance - max
- 1.1
- Voltage tolerance - min
- 0.85
- Voltage type
- AC
- Lifespan, mechanical
- 20000 operations
- Switch drive type
- Motor drive
- Terminal capacity (solid/flexible conductor)
- 0.75 mm² - 2.5 mm² with ferrule; 18 - 14 AWG
- Rated control supply voltage AC 50 Hz
- 208–240 V
- Rated control supply voltage AC 60 Hz
- 208–240 V
- Type of switch drive
- Motor drive
- Voltage type for actuating
- AC
- Country of origin
- Romania
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 4015081151233
- SAP 1000689684
- Code 8398814
Product Documentation
