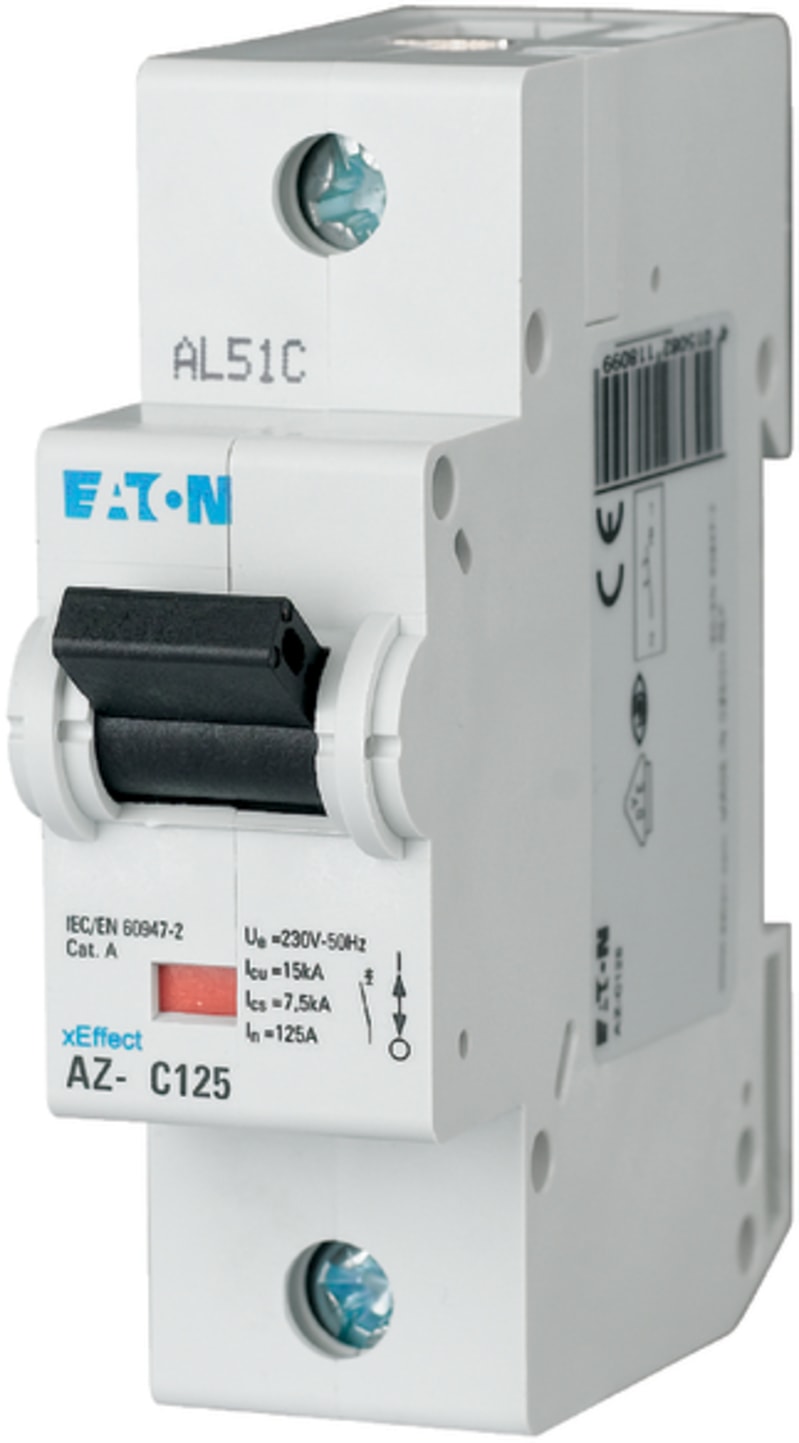

Unit breaker 1P 25A C

Eaton AZ-C25 High quality modular circuit breaker up to 125A in characteristic B,C,D and OV.

Manufacturer part number (MPN)

AZ-C25

EAN / GTIN

4015082117740

HS code

8536.90

Sales unit

pcs

Package quantity

12 pcs

Eaton catalogue number

211774

Depth

90 mm

Height

75 mm

Width

27 mm

Weight

0.225 kg

Compliances

RoHS conform

Certifications

IEC/EN 60947-2; EN45545-2; IEC 61373

Current limiting class

3

Features

Additional equipment possible

Special features

Ambient temperature hint: a 1 °C increase results in a 0.5% linear reduction of current carrying capacity

Used with

AZ; Miniature circuit breaker

Amperage Rating

25 A

Application

Switchgear for industrial and advanced commercial applications xEffect - Switchgear for industrial and advanced commercial applications

Number of poles

Single-pole

Number of poles (protected)

1

Number of poles (total)

1

Release characteristic

C

Tripping characteristic

C

Type

AZ Miniature circuit breaker

Ambient operating temperature - max

55 °C

Ambient operating temperature - min

-25 °C

Equipment heat dissipation, current-dependent

2.8 W

Heat dissipation capacity

0 W

Heat dissipation per pole, current-dependent

2.8 W

Rated operational current for specified heat dissipation (In)

25 A

Static heat dissipation, non-current-dependent

0 W

Admissible back-up fuse - max

200 A gL/gG

Direction of incoming supply

As required

Frequency rating - max

60 Hz

Frequency rating - min

50 Hz

Lifespan, electrical

10000 operations

Operational switching capacity

20 kA

Overvoltage category

III

Pollution degree

2

Rated impulse withstand voltage (Uimp)

4 kV

Rated insulation voltage (Ui)

440 V

Rated operational voltage (Ue) - max

230 V

Rated short-circuit breaking capacity (IEC 60947-2)- Icu at 230 V

25 kA

Rated short-circuit breaking capacity (IEC 60947-2)- Icu at 400 V

25 kA

Rated switching capacity (IEC/EN 60947-2)

25 kA

Selectivity class

3

Voltage rating

230 V AC / 400 V AC

Voltage rating at DC

60 V DC (per pole)

Voltage type

AC

Built-in depth

75 mm

Connectable conductor cross section (multi-wired) - max

50 mm²

Connectable conductor cross section (multi-wired) - min

2.5 mm²

Connectable conductor cross section (solid-core) - max

50 mm²

Connectable conductor cross section (solid-core) - min

2.5 mm²

Degree of protection

IP20; IP40 (when fitted)

Enclosure width

90 mm

Frame

45 mm

Mounting Method

Top-hat rail IEC/EN 60715

Mounting width

27 mm

Mounting width per pole

27 mm

Terminal capacity (control cable)

2.5 mm² - 50 mm²

Terminal protection

Finger and hand touch safe, DGUV VS3, EN 50274

Terminals (top and bottom)

Lift terminals

Width in number of modular spacings

1.5

HS Code

8536.90

• EAN 4015082117740
• SAP 1200293290
• Code 82264377
