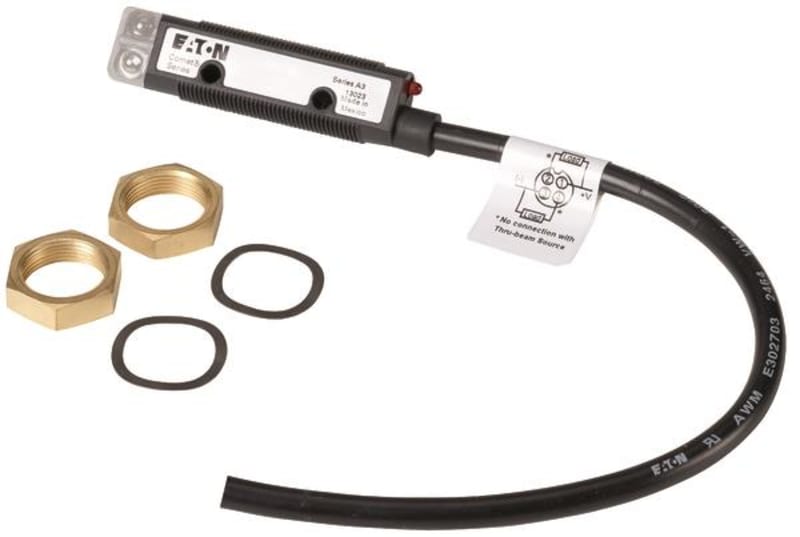

Opt. sensor, DC, 18mm (14102AQD07)
Pricing
Request a quote
We reply within 24 hours
Overview
Eaton Opt. sensor, DC, 18mm (14102AQD07) is listed under Sensors & Instrumentation / Photoelectric Sensors. HS code: 8536.90; Sales unit: pcs; Pre failure notice: No; With time function: No; Rated switching distance: 7600 mm; Max. output current: 100 mA.
Technical Specifications
- Manufacturer part number (MPN)
- 14102AQD07
- EAN / GTIN
- 4015081324507
- HS code
- 8536.90
- Sales unit
- pcs
- Pre failure notice
- No
- With time function
- No
- Rated switching distance
- 7600 mm
- Max. output current
- 100 mA
- With reflector
- No
- Analogue output 0 V ... 10 V
- No
- Analogue output 0 mA ... 20 mA
- No
- Analogue output 4 mA ... 20 mA
- No
- Analogue output -10 V ... +10 V
- No
- With other analogue output
- No
- Setting procedure
- Manual adjustment
- With communication interface analogue
- No
- With communication interface AS-Interface
- No
- With communication interface CANOpen
- No
- With communication interface DeviceNet
- No
- With communication interface Ethernet
- No
- With communication interface INTERBUS
- No
- With communication interface PROFIBUS
- No
- With communication interface RS-232
- No
- With communication interface RS-422
- No
- With communication interface RS-485
- No
- With communication interface SSD
- No
- With communication interface SSI
- No
- Number of semiconductor outputs with signalling function
- 2
- Type of electric connection
- Connector M12
- Type of switching output
- PNP/NPN
- Type of switch function
- Programmable/configurable
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Construction type housing
- Cylinder, screw-thread
- Diameter sensor
- 18 mm
- Length of sensor
- 66 mm
- Sensing mode
- Light-/dark switching
- Material of optical surface
- Plastic
- Housing material
- Plastic
- Min. reflector distance
- 0 mm
- Ambient temperature
- -40–70 °C
- Switching frequency
- 500 Hz
- Type of safety according to IEC 61496-1
- 1
- Rated control supply voltage DC
- 10–30 V
- Voltage type
- DC
- With monitoring function downstream switching devices
- No
- Laser protection class
- None
- Type of light
- Polarity free red light
- With restart blockage
- No
- Suitable for safety functions
- No
- Degree of protection (IP)
- IP67
- Country of origin
- Mexico
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4015081324507
- SAP 1200606868
- Code 82994749
Product Documentation
More from Eaton
Eaton
PE (pen-) rail (PEN23RS33)
Eaton
Motor protection circuit breaker, trip block (PKE-XTUWA-32)
Eaton
Eaton IZMX40B4-V40F-1
Eaton
DA1 variable-frequency drive, 3-3 230V, 55 kW (DA1-32202FB-B55C)
Eaton
Angle Cablefestejern 45mm
KKW-DIN
Eaton

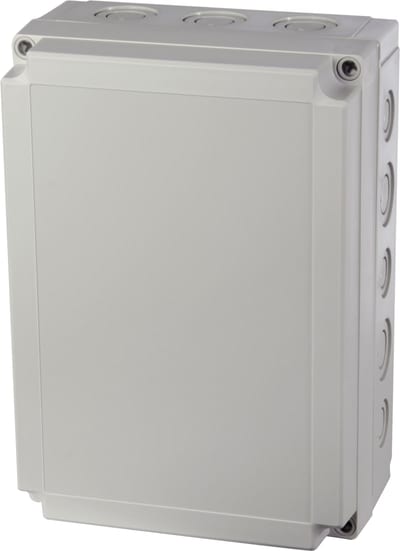

PCM 200/100 G Kunststoffkapsl
PCM200/100G
Eaton

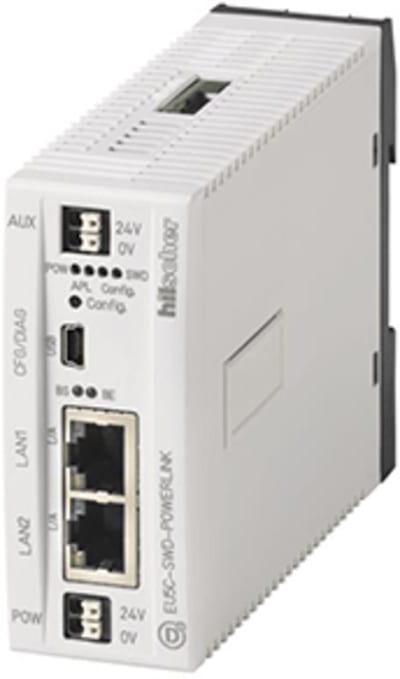

GW SWD/Powerlink (171797)
