Eaton

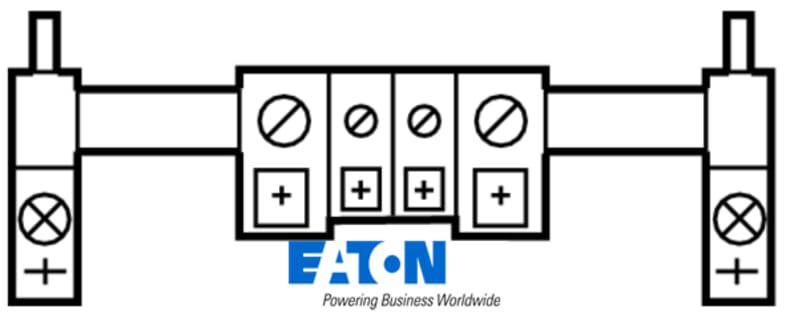

PE (pen-) rail (PEN23RS33)
Part numberPEN23RS33EAN / GTIN4015080772279HS code8538.90
Electrical Components
Terminal Blocks
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Overview
Eaton PE (pen-) rail (PEN23RS33) is listed under Electrical Components / Terminal Blocks. Sales unit: pcs; Eaton catalogue number: 077227; Depth: 50 mm; Height: 50 mm; Width: 190 mm; Weight: 0.102 kg.
Technical Specifications
- Manufacturer part number (MPN)
- PEN23RS33
- EAN / GTIN
- 4015080772279
- Sales unit
- pcs
- Eaton catalogue number
- 077227
- Depth
- 50 mm
- Height
- 50 mm
- Width
- 190 mm
- Weight
- 0.102 kg
- Compliances
- RoHS conform
- Features
- Contact safe
- Suitable for
- Useful for stranded conductors
- Used with
- RS33/I23; SE-RS-I23; Modular busbar system; Ci insulated enclosure; Prepared enclosures
- Accessory/spare part type
- PE (PEN) busbars
- Nominal current
- 63 A
- Number of poles
- Single-pole
- Type
- Ci insulated enclosure Modular busbar system Prepared enclosures
- Conductor cross section, input - max
- 35 mm²
- Conductor cross section, input - min
- 2.5 mm²
- Conductor cross section, input AWG - max
- 2 mm²
- Conductor cross section, input AWG - min
- 14 mm²
- Conductor cross section, output - max
- 16 mm²
- Conductor cross section, output - min
- 1.5 mm²
- Conductor cross section, output AWG - max
- 6 mm²
- Conductor cross section, output AWG - min
- 16 mm²
- Number of connections (Less Than 6 mm squared)
- 0
- Number of connections (Less Than AWG 6)
- 0
- Number of connections (Greater Than 25 mm squared)
- 2
- Number of connections (Greater Than 250 kcmil)
- 0
- Number of connections (10 mm squared)
- 0
- Number of connections (16 mm squared)
- 2
- Number of connections (25 mm squared)
- 0
- Number of connections (250 kcmil)
- 0
- Number of connections (AWG 2)
- 0
- Number of connections (AWG 4)
- 0
- Number of connections (AWG 4/0)
- 0
- Number of connections (AWG 6)
- 0
- Number of connections (total)
- 0
- Number of inputs
- 1
- Number of outputs
- 3
- Terminal capacity (solid wire)
- 1.5 mm² - 16 mm² (2x); 2.5 mm² - 35 mm² (2x)
- Terminal capacity (stranded cable)
- 1.5 mm² - 16 mm² (2x); 2.5 mm² - 25 mm² (2x)
- Unit type
- Modular system
- Connection type
- Clamp; Screwing
- Mounting method
- Screw
- Contact safe
- Yes
- Suitable for fine strand conductors
- No
- Suitable for solid conductors
- No
- Suitable for stranded conductors
- Yes
- Suitable for fine strand conductors without cable end sleeve
- No
- Suitable for extra fine-strand conductors
- No
- Conductor cross section, input
- 2.5–35 mm²
- Conductor cross section, output
- 1.5–16 mm²
- Conductor cross section, input AWG
- 14
- Conductor cross section, output AWG
- 16
- Country of origin
- Poland
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 4015080772279
- SAP 1000788262
- Code 81399555
Product Documentation
Document preview: PE (pen-) rail (PEN23RS33) — Specification Data Sheet (OEM)
