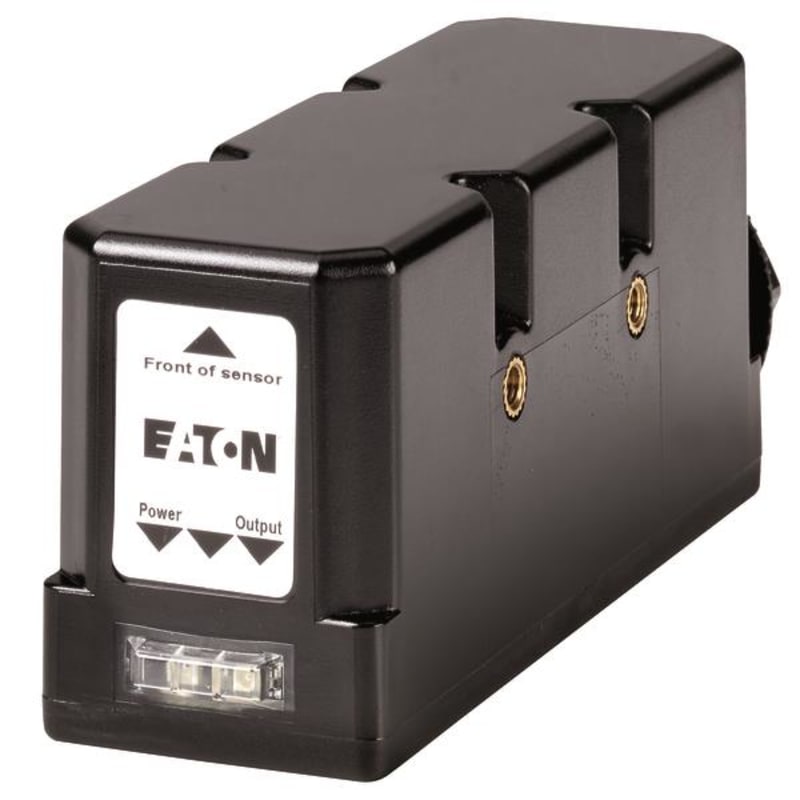

Area switch E67-LRDP100-HDD

Eaton E67-LRDP100-HDD Area switch, optical range 100cm, 18-30VDC, NPN, PNP, dark, micro.

Manufacturer part number (MPN)

E67-LRDP100-HDD

EAN / GTIN

4015081900206

Sales unit

pcs

Eaton catalogue number

100547

Depth

160 mm

Height

57 mm

Width

42 mm

Weight

0.21 kg

Certifications

CE

Type

Optical sensors

Electric connection type

Other

Fitted with

Background suppression (Perfect Prox)

Enclosure material

Plastic

Enclosure type

Cuboid

Operating mode

Switching principle: Dark switching

Explosion safety category for dust

None

Explosion safety category for gas

None

Functions

Reflected-light beam

Voltage type

DC

Wire size

0

Connection type

4-wire; Plug-in connection M12 x 1

Cable sheath material

Other

Light type

Infrared light

Degree of protection

IP67; NEMA Other

Interface type

Other

LED indicator

Status indication of Operating voltage: Green LED; Status indication of Switching state: Red LED

Switch function type

Other

Load current

Max. 100 mA (Ie)

Laser protection class

None

Operation agent-safety class

Safety class 2

Shock resistance

30 g, Mechanical, Shock duration 6 ms

Optical surface material

Plastic

Output current (mA) - max

100 mA

Rated control supply voltage (Us) at DC - max

30 V

Rated control supply voltage (Us) at DC - min

18 V

Rated switching distance (Sn)

1000 mm

Sensor height

59 mm

Sensor length

166 mm

Switching distance - max

1300 mm

Switching voltage of OSSD at state high

30 V

Voltage rating - max

30 V

Safety type (IEC 61496-1)

1

Sensing mode

Dark switching

Switching output type

PNP

Vibration resistance

10 Hz - 2 kHz, 10 g

Triangulation

Background fade-out

Width sensor

43 mm

Product category

E67 Long Range Series

Response time

15 ms

Adjustment range - max

1000 mm

Ambient operating temperature - max

55 °C

Ambient operating temperature - min

-35 °C

Ambient storage temperature - max

70 °C

Ambient storage temperature - min

-40 °C

Number of contact energized outputs with signalling function

0

Number of outputs (protected contact energized)

0

Number of outputs (protected semiconductor)

0

Number of outputs (semiconductor with signaling function)

2

Operating temperature - max

55 °C

Operating temperature - min

-35 °C

Adjustment type

Other

Adjustment range

0–1000 mm

Pre failure notice

No

With time function

No

Max. switching distance

1300 mm

Max. output current

100 mA

With reflector

No

Analogue output 0 V ... 10 V

No

Analogue output 0 mA ... 20 mA

No

Analogue output 4 mA ... 20 mA

No

Analogue output -10 V ... +10 V

No

With other analogue output

No

With communication interface analogue

No

With communication interface AS-Interface

No

With communication interface CANOpen

No

With communication interface DeviceNet

No

With communication interface Ethernet

No

With communication interface INTERBUS

No

With communication interface PROFIBUS

No

With communication interface RS-232

No

With communication interface RS-422

No

With communication interface RS-485

No

With communication interface SSD

No

With communication interface SSI

No

Number of semiconductor outputs with signalling function

2

Type of switching output

PNP/NPN

Construction type housing

Cuboid

Height of sensor

59 mm

Length of sensor

166 mm

Material of optical surface

Plastic

Housing material

Plastic

Ambient temperature

-35–55 °C

Type of safety according to IEC 61496-1

1

Rated control supply voltage DC

18–30 V

With monitoring function downstream switching devices

No

Min. reflector distance

0 mm

Type of light

Infrared light

With restart blockage

No

Suitable for safety functions

No

Country of origin

Mexico

HS Code

8536.50
