Eaton

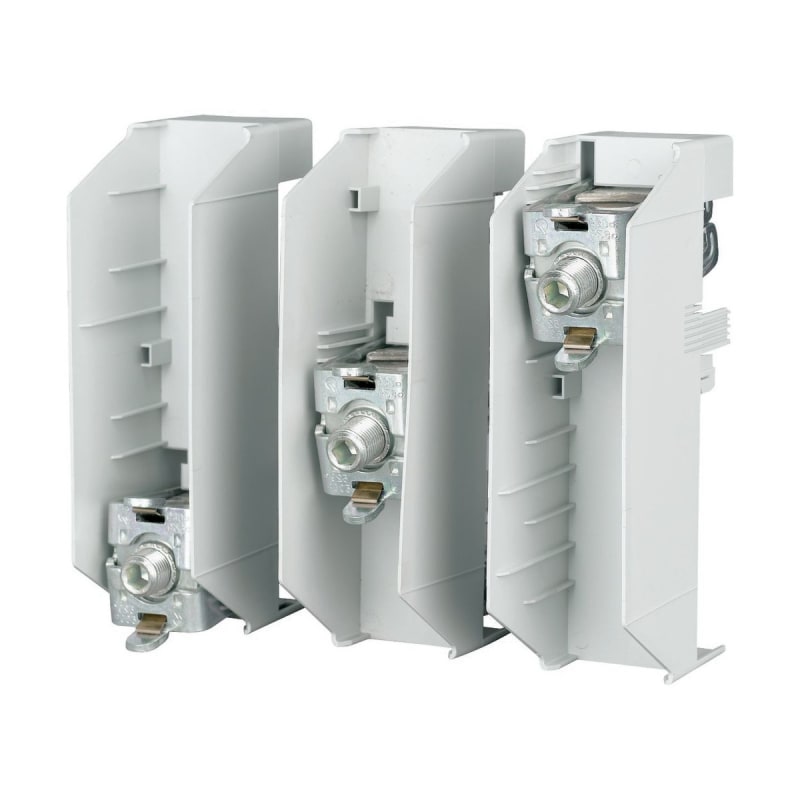

Connection.box Cu-band MAX.32X20
Part numberBBA-TP3/CU-BANDEAN / GTIN4015081069491HS code8536.90
Electrical Components
Terminal Blocks
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Overview
Eaton Connection.box Cu-band MAX.32X20 (part number BBA-TP3/CU-BAND) is listed under Electrical Components / Terminal Blocks. Sales unit: pcs; Eaton catalogue number: 107186; Depth: 130 mm; Height: 205 mm; Width: 255 mm; Weight: 1.79 kg.
Technical Specifications
- Manufacturer part number (MPN)
- BBA-TP3/CU-BAND
- EAN / GTIN
- 4015081069491
- Sales unit
- pcs
- Eaton catalogue number
- 107186
- Depth
- 130 mm
- Height
- 205 mm
- Width
- 255 mm
- Weight
- 1.79 kg
- Compliances
- RoHS conform
- Features
- Self-extinguishing acc. UL 94
- Functions
- Connections; Connection kit
- Special features
- Pole pitch adjustable Fixing direct over busbar terminals Including shroud with adjustable width Looping is possible
- Suitable for
- Flat rail; Three-pole; Strip conductor connection
- Used with
- 25 mm x 5/10 mm rail; Double T profile; 30 mm x 5/10 mm rail; 20 mm x 5/10 mm rail; Connection; 60 mm system
- Type
- 60 mm system Connection
- Temperature resistance
- Temperature resistant to 120 °C
- Creepage resistance
- CTI 200
- Rated operation current (Ie)
- 800 A
- Rated operational current
- 800 A
- Rated operational current (Ie) - max
- 800 A
- Busbar thickness - max
- 10 mm
- Busbar thickness - min
- 5 mm
- Busbar width - max
- 30 mm
- Busbar width - min
- 20 mm
- Conductor cross section - max
- 750 mm²
- Material
- Silicon free, chlorine free
- Terminal capacity (conductor)
- 32 mm x 1 mm (10x); 30 mm x 25 mm
- Terminal contact area
- 32 mm x 25 mm
- Width clamp
- 240 mm
- Max. conductor cross section
- 750 mm²
- Busbar thickness
- 5–10 mm
- Suitable for strip conductor connection
- Yes
- Suitable for round conductor connection
- No
- Suitable for sector conductor connection
- No
- Max. rated operation current Ie
- 800 A
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4015081069491
- SAP 1200607323
- Code 82995632
Product Documentation
Document preview: Tilk.box Cu-band max.32x20 (BBA-TP3/CU-BAND) — Specification Data Sheet (OEM)
More from Eaton
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
