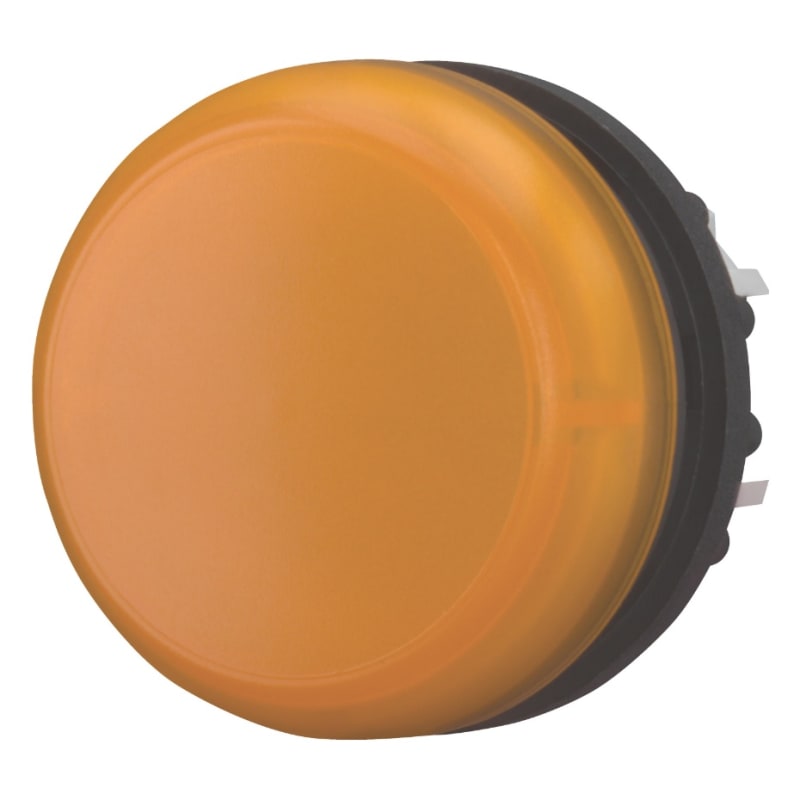

Lysindikator, RMQ (M22-L-A)
Pricing
Request a quote
We reply within 24 hours
Overview
Eaton Lysindikator, RMQ (M22-L-A) is listed under Control & Automation / Pushbuttons & Pilot Lights. Sales unit: pcs; Package quantity: 10 pcs; Eaton catalogue number: 164374; Depth: 30 mm; Height: 30 mm; Width: 30 mm.
Technical Specifications
- Manufacturer part number (MPN)
- M22-L-A
- EAN / GTIN
- 4015081608805
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Eaton catalogue number
- 164374
- Depth
- 30 mm
- Height
- 30 mm
- Width
- 30 mm
- Weight
- 0.007 kg
- Compliances
- CE Marked; Bureau Veritas; GoST-R
- Certifications
- CSA Certified; CCC Marked; Lloyd's Register Certified; IEC/EN 60947; VDE 0660
- Catalog Notes
- Includes contact block mounting adapter.
- Bezel color
- Chrome
- Bezel material
- Other
- Design
- Flat
- Lens color
- Orange
- Lens type
- Flat; Round
- Ambient operating temperature - max
- 70 °C
- Ambient operating temperature - min
- -25 °C
- Climatic proofing
- Damp heat, constant, to IEC 60068-2-78; Damp heat, cyclic, to IEC 60068-2-30
- Connection to SmartWire-DT
- With SWD-RMQ connections; Yes
- Rated insulation voltage (Ui)
- 250 V
- Degree of protection
- NEMA 4X, 13
- Degree of protection (front side)
- IP67/IP69K
- Mounting position
- As required
- Opening diameter
- 22.5 mm
- Overvoltage category
- III
- Pollution degree
- 3
- Product category
- RMQ-Titan
- Rated impulse withstand voltage (Uimp)
- 4000 V AC
- Type
- Indicator lights
- Terminal capacity
- 0.5 - 1.5 mm², solid; 0.5 - 1.5 mm², stranded
- Hole diameter
- 22.5 mm
- Colour front ring
- Chrome
- Degree of protection (IP), front side
- IP67/IP69K
- Material front ring
- Plastic
- With front ring
- No
- Construction type lens
- Round
- Suitable for number of built-in signal lights
- 1
- Type of lens
- Flat
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8531.80
Cross References
- EAN 4015081608805
- SAP 1200150151
- Code 82040935
Product Documentation
More from Eaton
Eaton
Analog input module;6 analog inputs
178789
Eaton
Overload relay ZBT12-4
Eaton
Contactor, DILEM12-10(110V50HZ) (DILEM12-10(110V50HZ,120V60HZ))
Eaton
Phase monitoring relay (EMR6-A500-D-1)
Eaton
VRIBR. with LIGHT, IMP. 1-0, RED
M22-WLK-R
Eaton
Styrecontactor 4S 24VDC (DILER-40-G(24VDC))
Eaton
Front plate xE Light (XLMFGC44)
Eaton

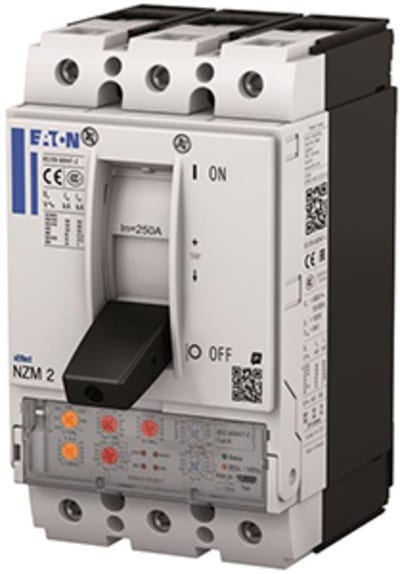

Eaton NZMH2-VX160-T Molded-Case Circuit Breaker 3-Pole 160A 150KA
