Eaton
VRIBR. with LIGHT, IMP. 1-0, RED
Part numberM22-WLK-REAN / GTIN4015082168148HS code8536.90
Control & Automation
Pushbuttons & Pilot Lights
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description

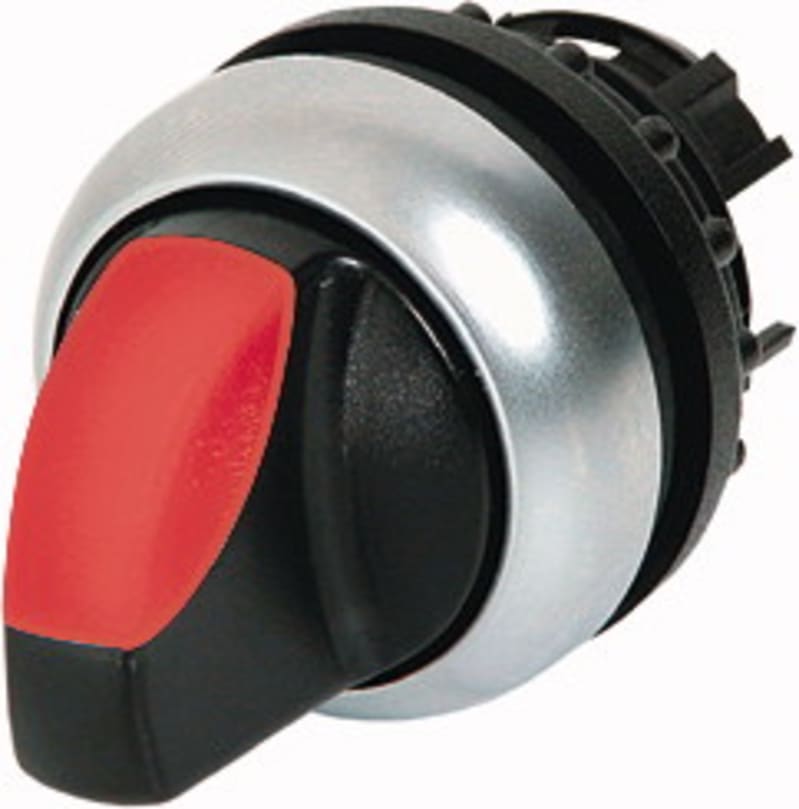

Eaton M22-WLK-R Illuminated selector switch actuator, 2 positions, red, momentary.
Technical Specifications
- Manufacturer part number (MPN)
- M22-WLK-R
- EAN / GTIN
- 4015082168148
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 5 pcs
- Eaton catalogue number
- 216814
- Depth
- 46 mm
- Height
- 30 mm
- Width
- 30 mm
- Weight
- 0.013 kg
- Compliances
- CE Marked
- Certifications
- IEC 60947-5; EN 60947-5; UL 508; CSA Std. C22.2 No. 94-91; CSA Std. C22.2 No. 14-05; VDE; CE; CSA-C22.2 No. 14-05; VDE 0660; CSA File No.: 012528; IEC/EN 60947; CSA Class No.: 3211-03; UL; UL File No.: E29184; CSA; IEC/EN 60947-5; UL Category Control No.: NKCR; CSA-C22.2 No. 94-91; DNV; GL; LR
- Actuator color
- Black
- Actuator function
- Momentary; Spring-return
- Actuator type
- Toggle
- Bezel color
- Titanium
- Bezel material
- Plastic
- Design
- With thumb-grip; Classical
- Fitted with
- Front ring
- Functions
- Stay-put/spring-return function, can be changed with coding parts M22-XC-Y
- Indicator color
- Red
- Lens type
- Round
- Number of switch positions
- 2
- Ambient operating temperature - max
- 70 °C
- Ambient operating temperature - min
- -25 °C
- Climatic proofing
- Damp heat, cyclic, to IEC 60068-2-30; Damp heat, constant, to IEC 60068-2-78
- Connection to SmartWire-DT
- Yes; With SWD-RMQ connections
- Equipment heat dissipation, current-dependent Pvid
- 0 W
- Heat dissipation capacity Pdiss
- 0 W
- Heat dissipation per pole, current-dependent Pvid
- 0 W
- Rated operational current for specified heat dissipation (In)
- 0 A
- Static heat dissipation, non-current-dependent Pvs
- 0 W
- Accessories
- Thumb grip
- Degree of protection
- NEMA 4X, 13
- Degree of protection (front side)
- IP66
- Lifespan, mechanical
- 100,000 Operations
- Mounting position
- As required
- Opening diameter
- 22.5 mm
- Operating frequency
- 2000 Operations/h
- Operating torque
- 0.3 Nm
- Overvoltage category
- III
- Pollution degree
- 3
- Product category
- RMQ-Titan
- Size
- Front diameter: 29.7 mm
- Suitable for
- Illumination
- Switching angle
- 40 °
- Type
- Illuminated selector switch actuator
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4015082168148
- SAP 1000048575
- Code 8724514
Product Documentation
Document preview: VRIBR. M/LYS, IMP. 1-0, RED (M22-WLK-R) — Specification Data Sheet (OEM)
