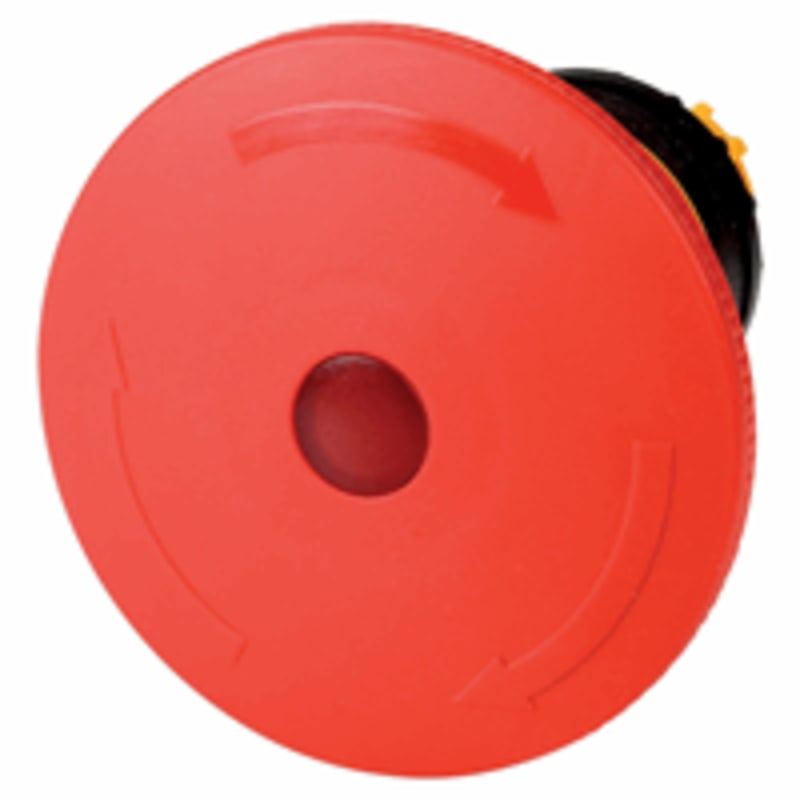

Emergency stopswitch, RMQ (M22-PVLT60P)
Pricing
Request a quote
We reply within 24 hours
Overview
Eaton Emergency stopswitch, RMQ (M22-PVLT60P) is listed under Control & Automation / Pushbuttons & Pilot Lights. Sales unit: pcs; Eaton catalogue number: 121461; Depth: 67 mm; Height: 60 mm; Width: 60 mm; Weight: 0.051 kg.
Technical Specifications
- Manufacturer part number (MPN)
- M22-PVLT60P
- EAN / GTIN
- 4015081192816
- Sales unit
- pcs
- Eaton catalogue number
- 121461
- Depth
- 67 mm
- Height
- 60 mm
- Width
- 60 mm
- Weight
- 0.051 kg
- Certifications
- IEC/EN 60947; VDE 0660; DNV; GL; LR
- Catalog Notes
- Max. Configuration: 4 x M22-(C)K01, …10 or 2 x M22-(C)K02, …20, …11 and 1 x M22-(F)LED... - When using M22-PVL… with 1 x M22-K01SMC10 (single channel), article M22-XSMC (order no.: 173030) is required. Order this item separately.
- Actuating force
- 50 N
- Actuator color
- Red
- Actuator diameter
- 60 mm
- Actuator function
- Turn-to-release; Switching function latching
- Color
- Red
- Design
- Palm-tree shaped; Classical
- Illumination
- Illuminated with LED element
- Unlocking method
- Turn-release
- Ambient operating temperature - max
- 70 °C
- Ambient operating temperature - min
- -25 °C
- Climatic proofing
- Damp heat, constant, to IEC 60068-2-78; Damp heat, cyclic, to IEC 60068-2-30
- Connection to SmartWire-DT
- No
- Base color
- Yellow
- Bezel color
- Other
- Bezel material
- Other
- Features
- Tamper-proof (according to ISO 13850, EN 418)
- RAL-number
- 3000
- Degree of protection
- IP67/IP69K; NEMA 4X
- Lifespan, mechanical
- 100,000 Operations
- Mounting position
- As required
- Opening diameter
- 22.5 mm
- Operating frequency
- 600 Operations/h
- Product category
- RMQ-Titan
- Suitable for
- Emergency stop; Illumination
- Type
- Controlled stop pushbutton/emergency-stop button
- Hole diameter
- 22.5 mm
- Colour button
- Red
- Suitable for lighting
- No
- Spring-return
- No
- Diameter cap
- 60 mm
- Suitable for emergency stop
- Yes
- Type of button
- High
- Colour front ring
- Black
- With lighting
- No
- Material front ring
- Plastic
- With front ring
- No
- Construction type lens
- Round
- Switching function latching
- Yes
- Country of origin
- Hungary
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 4015081192816
- SAP 1000640005
- Code 8411992
Product Documentation
More from Eaton
Eaton
Eaton FAZT-C6/3 Miniature Circuit Breaker — 3P, Type C, 6 A, 25 kA
Eaton
Emergency stopswitch, RMQ (M22-PV45P-MPI)
Eaton

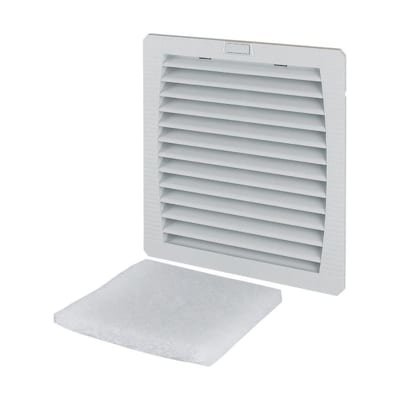

Fan with filter 292 m³/h 223X223
E-FAN5
Eaton

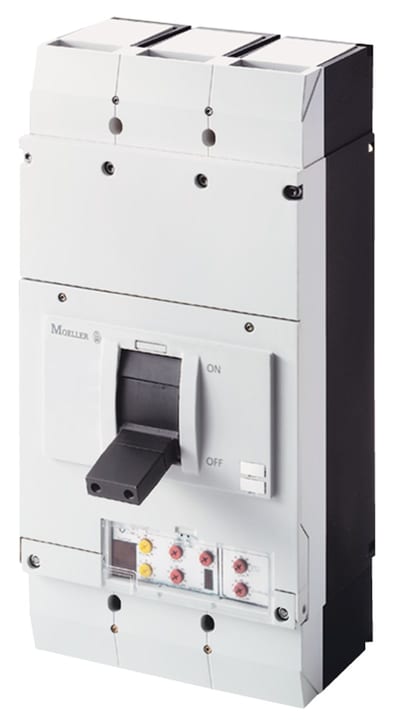

Eaton NZMN4-VE1600 Molded-Case Circuit Breaker 3-Pole 1600A 50KA
Eaton

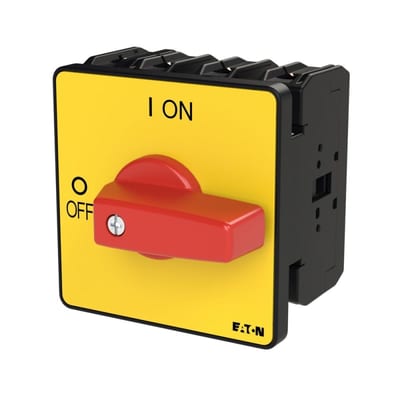

P3 Of/On-switch, 80 A, 4 pole, Form E (1414035)
Eaton
Eaton FAZ-Z63/3 Miniature Circuit Breaker — 3P, Type Z, 63 A, 15 kA
Eaton

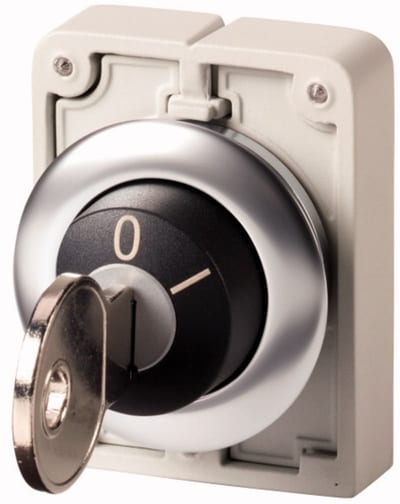

Key switch, Flat Front (M30C-FWRS-MS10)
