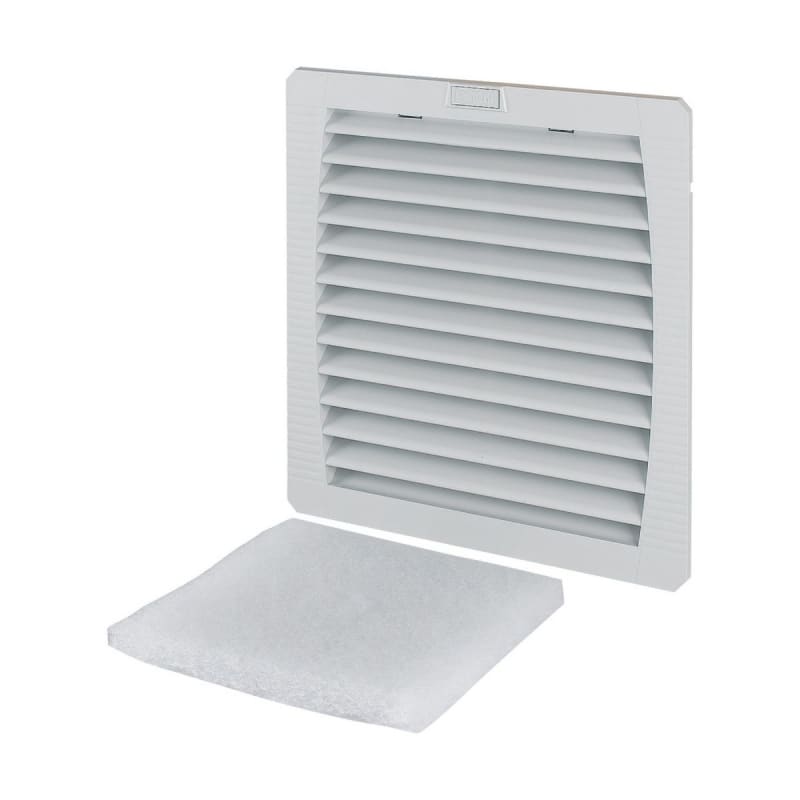

Fan with filter 292 m³/h 223X223
Pricing
Request a quote
We reply within 24 hours
Overview
Eaton Fan with filter 292 m³/h 223X223 (part number E-FAN5) is listed under Enclosures / Enclosure Cooling. Sales unit: pcs; Eaton catalogue number: 167291; Depth: 113 mm; Height: 252 mm; Width: 252 mm; Weight: 1.85 kg.
Technical Specifications
- Manufacturer part number (MPN)
- E-FAN5
- EAN / GTIN
- 4015081637942
- Sales unit
- pcs
- Eaton catalogue number
- 167291
- Depth
- 113 mm
- Height
- 252 mm
- Width
- 252 mm
- Weight
- 1.85 kg
- Compliances
- RoHS conform
- Features
- Wall build in
- Fitted with
- Filter
- Functions
- Air circulator
- Noise emission
- 42 dBA
- RAL-number
- 7035
- Suitable for
- 19 inch rack mounting
- Volume flow (freeblowing)
- 292 m³/h
- Color
- Gray
- Rated power
- 45 W
- Voltage rating at AC 50 Hz - max
- 240 V
- Voltage rating at AC 50 Hz - min
- 230 V
- Voltage rating at AC 60 Hz - max
- 240 V
- Voltage rating at AC 60 Hz - min
- 230 V
- Voltage type
- AC
- Degree of protection
- IP54; 12 (NEMA)
- Mounting method
- Snap mounting
- Number of fans
- 1
- Colour
- Grey
- Suitable for 19 inch rack mounting
- Yes
- EMC-version
- No
- With protective cover
- No
- With filter
- Yes
- Roof fan
- No
- Built as slide-in fan
- No
- Volume flow, freeblowing
- 292 m³/h
- Air circulator
- Yes
- Suitable for wall built-in
- Yes
- Operating voltage AC 50 Hz
- 230–240 V
- Operating voltage AC 60 Hz
- 230–240 V
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8414.59
Cross References
- EAN 4015081637942
- SAP 1000750571
- Code 8472091
Product Documentation
