Eaton

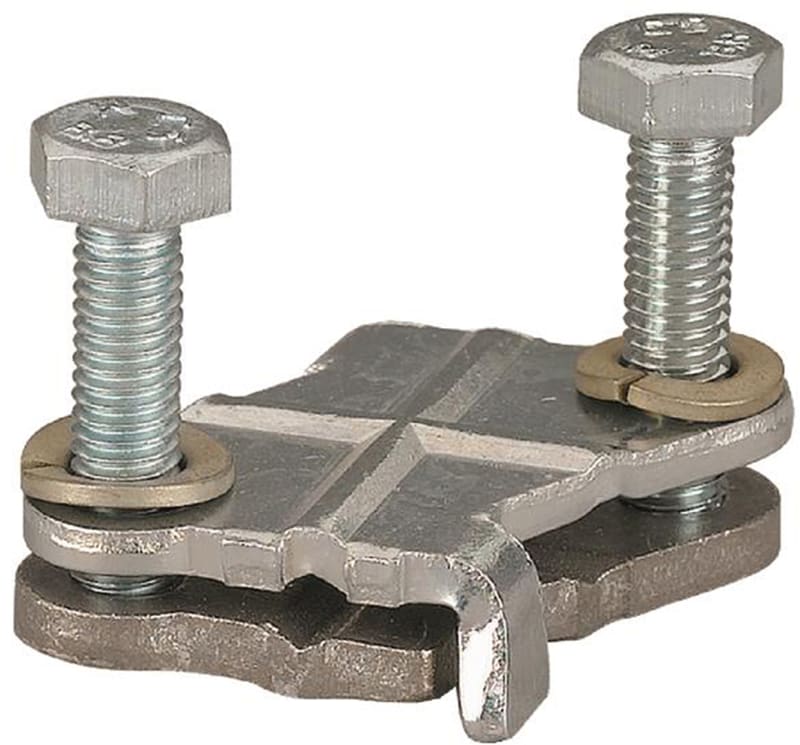

Busbar terminal f. CU20X5
Part numberK20X15/40-AEAN / GTIN4015080127833HS code8538.90
Electrical Components
Terminal Blocks
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Overview
Eaton Busbar terminal f. CU20X5 (part number K20X15/40-A) is listed under Electrical Components / Terminal Blocks. Sales unit: pcs; Package quantity: 10 pcs; Eaton catalogue number: 012783; Depth: 42 mm; Height: 50 mm; Width: 42 mm.
Technical Specifications
- Manufacturer part number (MPN)
- K20X15/40-A
- EAN / GTIN
- 4015080127833
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Eaton catalogue number
- 012783
- Depth
- 42 mm
- Height
- 50 mm
- Width
- 42 mm
- Weight
- 0.075 kg
- Compliances
- RoHS conform
- Functions
- For fuse enclosures and busbar fuse enclosures as well as SE-RS-I43 busbar assemblies
- Special features
- 4 mm² - 10 mm² (solid) Terminal capacity for flat strip: from 3 x 9 x 0.8 mm Up to 10 x 16 x 0.8 mm
- Suitable for
- Round conductor connection; Strip conductor connection; Flat rail
- Used with
- Cu 20 x 10 mm; Cu 20 x 15 mm; Cu 20 x 5 mm; Ci insulated enclosure; Modular busbar system; Prepared enclosures
- Accessory/spare part type
- Terminal
- Type
- Ci insulated enclosure Modular busbar system Prepared enclosures
- Rated operational current
- 400 A
- Rated operational current (Ie) - max
- 400 A
- Busbar thickness - max
- 10 mm
- Busbar thickness - min
- 5 mm
- Busbar width - max
- 20 mm
- Busbar width - min
- 20 mm
- Conductor cross section - max
- 124 mm²
- Unit type
- Modular system
- Width clamp
- 32 mm
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 4015080127833
- SAP 1000289047
- Code 895667
Product Documentation
Document preview: Busbar terminal f. CU20x5 (K20X15/40-A) — Specification Data Sheet (OEM)
