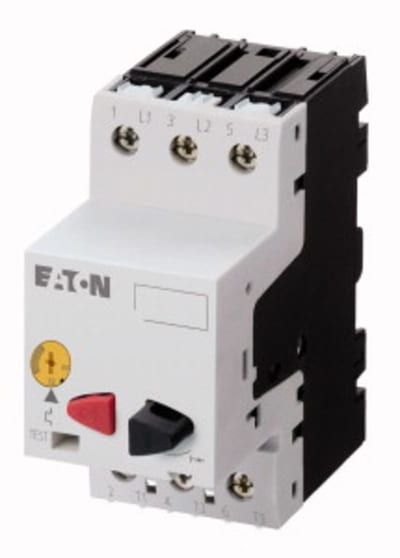

Motor protection circuit breaker,PKZM0-6,3-Pi

Eaton PKZM0-6,3-PI Motorprotective circuit breaker, 2.2 kW, 4 - 6.3 A, Push in term.

Manufacturer part number (MPN)

PKZM0-6,3-PI

EAN / GTIN

4015081972401

HS code

8536.90

Sales unit

pcs

Eaton catalogue number

199156

Depth

75 mm

Height

109 mm

Width

45 mm

Weight

0.343 kg

Certifications

IEC/EN 60947; VDE 0660; UL; CSA; IEC/EN 60947-4-1; UL 60947-4-1; CSA-C22.2 No. 60947-4-1-14; CE; UL File No.: E36332; UL Category Control No.: NLRV; CSA File No.: 165628; CSA Class No.: 3211-05

Altitude

Max. 2000 m

Ambient operating temperature - max

55 °C

Ambient storage temperature - max

80 °C

Ambient operating temperature - min

-25 °C

Ambient operating temperature (enclosed) - max

40 °C

Ambient operating temperature (enclosed) - min

-25 °C

Ambient storage temperature - min

-40 °C

Climatic proofing

Damp heat, cyclic, to IEC 60068-2-30; Damp heat, constant, to IEC 60068-2-78

Number of auxiliary contacts (change-over contacts)

0

Number of auxiliary contacts (normally closed contacts)

0

Number of auxiliary contacts (normally open contacts)

0

Rated operational current for specified heat dissipation (In)

6.3 A

Static heat dissipation, non-current-dependent Pvs

0 W

Equipment heat dissipation, current-dependent Pvid

5.68 W

Heat dissipation capacity Pdiss

0 W

Heat dissipation per pole, current-dependent Pvid

1.9 W

Rated frequency - max

60 Hz

Rated frequency - min

50 Hz

Rated operational current (Ie)

6.3 A

Rated operational power at AC-3e, 220/230 V, 50 Hz

1.1 kW

Rated operational power at AC-3e, 380/400 V, 50 Hz

2.2 kW

Rated operational power at AC-3e, 440 V, 50 Hz

3 kW

Rated operational power at AC-3e, 500 V, 50 Hz

3 kW

Rated operational power at AC-3e, 690 V, 50 Hz

4 kW

Rated operational voltage (Ue) - max

690 V

Rated operational voltage (Ue) - min

690 V

Rated uninterrupted current (Iu)

6.3 A

Actuator type

Turn button

Features

Phase-failure sensitivity (according to IEC/EN 60947-4-1, VDE 0660 Part 102)

Functions

Motor protection; Phase failure sensitive

Number of poles

Three-pole

Connection

Push in terminals

Degree of protection

IP20

Lifespan, electrical

100,000 operations

Lifespan, mechanical

100,000 Operations

Mounting Method

DIN rail (top hat rail) mounting optional

Mounting position

Can be snapped on to IEC/EN 60715 top-hat rail with 7.5 or 15 mm height.

Operating frequency

40 Operations/h

Overvoltage category

III

Pollution degree

3

Product category

Motor protective circuit breaker

Protection

Finger and back-of-hand proof, Protection against direct contact when actuated from front (EN 50274)

Rated impulse withstand voltage (Uimp)

6000 V AC

Shock resistance

25 g, Mechanical, according to IEC/EN 60068-2-27, Half-sinusoidal shock 10 ms

Suitable for

Also motors with efficiency class IE3; Branch circuit: Manual type E if used with terminal, or suitable for group installations, (UL/CSA)

Temperature compensation

≤ 0.25 %/K, residual error for T > 40°; -5 - 40 °C to IEC/EN 60947, VDE 0660; -25 - 55 °C, Operating range

Assigned motor power at 115/120 V, 60 Hz, 1-phase

0.25 HP

Assigned motor power at 200/208 V, 60 Hz, 3-phase

1 HP

Assigned motor power at 230/240 V, 60 Hz, 1-phase

0.5 HP

Assigned motor power at 230/240 V, 60 Hz, 3-phase

1.5 HP

Assigned motor power at 460/480 V, 60 Hz, 3-phase

3 HP

Assigned motor power at 575/600 V, 60 Hz, 3-phase

5 HP

Rated short-circuit breaking capacity Ics at 400 V AC

150 kA

Rated short-circuit breaking capacity Ics at 440 V AC

150 kA

Rated short-circuit breaking capacity Ics at 500 V AC

42 kA

Rated short-circuit breaking capacity Ics at 690 V AC

2 kA

Rated short-circuit breaking capacity Icu at 400 V AC

150 kA

Rated short-circuit breaking capacity Icu at 440 V AC

150 kA

Rated short-circuit breaking capacity Icu at 500 V AC

42 kA

Rated short-circuit breaking capacity Icu at 690 V AC

3 kA

Short-circuit current rating (group protection)

50 kA, 600 V High Fault, Fuse, SCCR (UL/CSA) with 600 A, 600 V High Fault, Fuse, SCCR (UL/CSA); 50 kA, 600 V High Fault, CB, SCCR (UL/CSA) with 600 A, 600 V High Fault, CB, SCCR (UL/CSA)

Short-circuit current rating (type E)

50 kA, 600 Y/347 V, SCCR (UL/CSA); 65 kA, 240 V, SCCR (UL/CSA); 65 kA, 480 Y/277 V, SCCR (UL/CSA)

Short-circuit release

Basic device fixed 15.5 x Iu; ± 20% tolerance; 97.7 A, Irm

Switching capacity

6.3 A, AC-3 up to 690 V

Stripping length (main cable)

12 mm

Terminal capacity (flexible with unisolated ferrule)

1 x (1 - 6) mm²; 2 x (1 - 6) mm²

Terminal capacity (flexible with ferrule)

1 x (1 - 6) mm², Push-in terminals, ferrule to DIN 46228-1; 2 x (1 - 6) mm², Push-in terminals, ferrule to DIN 46228-1; 1 x (1 - 6) mm², Push-in terminals, ferrule to DIN 46228-4; 2 x (1 - 4) mm², Push-in terminals, ferrule to DIN 46228-4

Terminal capacity (flexible)

1 x (1 - 6) mm²; 2 x (1 - 6) mm²; 1 x (1 - 6) mm², Push-in terminals; 2 x (1 - 6) mm², Push-in terminals

Terminal capacity (flexible with ultrasonic welded cable end)

1 x (1 - 10) mm²; 2 x (1 - 6) mm²

Terminal capacity (solid)

1 x (1 - 6) mm², Push-in terminals; 2 x (1 - 6) mm², Push-in terminals; 1 x (1 - 6) mm²; 2 x (1 - 6) mm²

Terminal capacity (solid/stranded AWG)

18 - 8

Overload release current setting - max

6.3 A

Overload release current setting - min

4 A

Tripping characteristic

Overload trigger: tripping class 10 A

HS Code

8536.90
