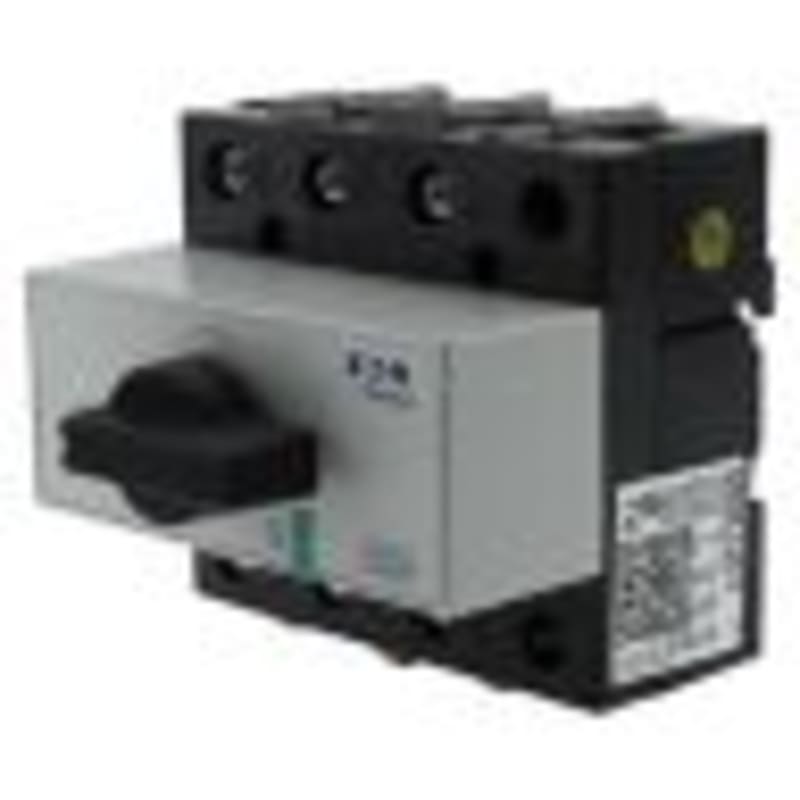

Switch-disconnector DMM-125/4+CM

Eaton DMM-125/4+CM Switch-Disconnector, DMM, 125 A, 4 pole, with blue rotary handle (Type C) and drive shaft,.

Manufacturer part number (MPN)

DMM-125/4+CM

EAN / GTIN

8711426752757

Sales unit

pcs

Eaton catalogue number

1314207

Depth

152 mm

Height

108 mm

Width

132 mm

Weight

1.04 kg

Certifications

RoHS; CE; EAC; IEC/EN 60947-3; KEMA; Lloyds; VDE 0660; IEC/EN 60204; IEC/EN 60947

Ambient operating temperature - max

55 °C

Ambient storage temperature - max

80 °C

Ambient operating temperature - min

-25 °C

Ambient storage temperature - min

-30 °C

Number of auxiliary contacts (change-over contacts)

0

Number of auxiliary contacts (normally closed contacts)

0

Number of auxiliary contacts (normally open contacts)

0

Heat dissipation per pole, current-dependent Pvid

4.5 W

Rated operational current for specified heat dissipation (In)

125 A

Rated breaking capacity at 400/415 V (cos phi to IEC 60947-3)

480 A

Rated breaking capacity at 500 V (cos phi to IEC 60947-3)

520 A

Rated breaking capacity at 660/690 V (cos phi to IEC 60947-3)

352 A

Rated insulation voltage (Ui)

1000 V

Rated operational current (Ie) at AC-21, 400 V, 415 V

125 A

Rated operational current (Ie) at AC-21, 500 V

125 A

Rated operational current (Ie) at AC-21, 690 V

125 A

Rated operational current (Ie) at AC-22, 380 V, 400 V, 415 V

125 A

Rated operational current (Ie) at AC-22, 500 V

125 A

Rated operational current (Ie) at AC-22, 690 V

125 A

Rated operational current (Ie) at AC-23A, 400 V, 415 V

63 A

Rated operational current (Ie) at AC-23A, 500 V

63 A

Rated operational current (Ie) at AC-23A, 690 V

45 A

Rated operational power at AC-23A, 400 V, 50 Hz

30 kW

Rated operational power at AC-23A, 500 V, 50 Hz

45 kW

Rated operational power at AC-23A, 690 V, 50 Hz

40 kW

Rated operational voltage (Ue) at AC - max

690 V

Rated uninterrupted current (Iu)

125 A

Uninterrupted current

Rated uninterrupted current Iu is specified for max. cross-section.

Features

Version as maintenance-/service switch; Version as main switch

Fitted with

Blue rotary handle (Type C) and drive shaft

Locking facility

Lockable in the 0 (Off) position

Number of poles

Four-pole

Accessories

Auxiliary contact fitted by user.

Actuator color

Other

Actuator type

Short thumb-grip

Connection type

Vertical

Degree of protection

NEMA Other

Degree of protection (front side)

IP20

Lifespan, mechanical

10,000 Operations

Mounting method

Flush mounting

Mounting position

As required

Overvoltage category

III

Pollution degree

3

Product Category

Main switch Switch-disconnector

Rated impulse withstand voltage (Uimp)

6000 V

Safety parameter (EN ISO 13849-1)

B10d values as per EN ISO 13849-1, table C.1

Suitable for

Ground mounting; Intermediate mounting; Distribution board installation

Breaking current

14.5 kA

Light-through energy

Max. 140 kA²s

Rated conditional short-circuit current (Iq)

50 kA

Rated short-time withstand current (Icw)

2.5 kA; 2,5 kA, Contacts, 1 second

Short-circuit protection rating

125, Fuse, Contacts

Stripping length (main cable)

21 mm

Terminal capacity

6 - 70 mm², flexible with ferrules to DIN 46228

Tightening torque

7 Nm, Screw terminals

Country of origin

United Kingdom

HS Code

8536.50
