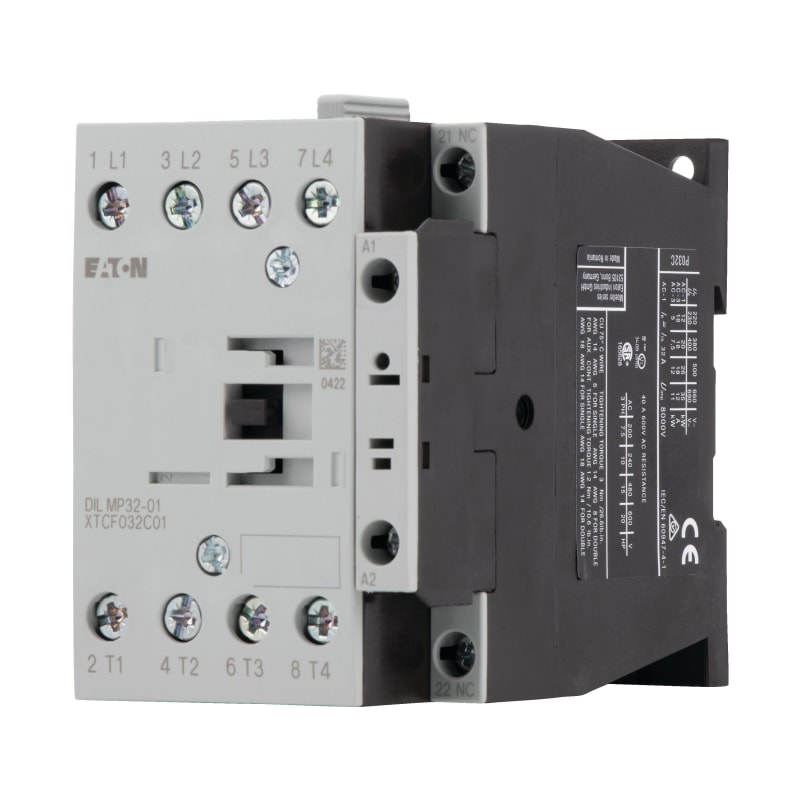

Contactor DILMP32-01(230V50HZ,240V60HZ)

Eaton DILMP32-01(230V50HZ,240V60HZ) Contactor, 4-pole, 32 A, 1 NC, 230 V 50 Hz, 240 V 60 Hz, AC operated.

Manufacturer part number (MPN)

DILMP32-01(230V50HZ,240V60HZ)

EAN / GTIN

4015081170388

HS code

8536.90

Sales unit

pcs

Eaton catalogue number

118911

Depth

97 mm

Height

85 mm

Width

58 mm

Weight

0.49 kg

Certifications

UL; CSA Class No.: 2411-03

3211-04; CSA-C22.2 No. 60947-4-1-14; UL File No.

E29096; IEC/EN 60947; UL 60947-4-1; VDE 0660; IEC/EN 60947-4-1; CE; CSA; CSA File No.: 012528; UL Category Control No.: NLDX

Catalog Notes

Contacts according to EN 50012

Shock resistance

10 g, N/O main contact, Mechanical, according to IEC/EN 60068-2-27, Half-sinusoidal shock 10 ms; 7 g, N/O auxiliary contact, Mechanical, according to IEC/EN 60068-2-27, Half-sinusoidal shock 10 ms; 5 g, N/C auxiliary contact, Mechanical, according to IEC/EN 60068-2-27, Half-sinusoidal shock 10 ms

Altitude

Max. 2000 m

Ambient operating temperature - max

60 °C

Ambient storage temperature - max

80 °C

Ambient operating temperature - min

-25 °C

Ambient operating temperature (enclosed) - max

40 °C

Ambient operating temperature (enclosed) - min

-25 °C

Ambient storage temperature - min

-40 °C

Climatic proofing

Damp heat, constant, to IEC 60068-2-3; Damp heat, cyclic, to IEC 60068-2-30

Connection to SmartWire-DT

No

Number of main contacts (normally open contact)

4

Number of auxiliary contacts (normally closed contacts)

1

Number of auxiliary contacts (normally open contacts)

0

Number of contacts (normally closed contacts)

1

Number of contacts (normally closed) as main contact

0

Conventional thermal current Ith (1-pole, enclosed)

76 A

Conventional thermal current Ith (3-pole, enclosed)

27 A

Conventional thermal current Ith at 55°C (3-pole, open)

29 A

Conventional thermal current Ith at 60°C (3-pole, open)

28 A

Conventional thermal current Ith of main contacts (1-pole, open)

84 A

Equipment heat dissipation, current-dependent Pvid

6.6 W

Heat dissipation capacity Pdiss

0 W

Heat dissipation per pole, current-dependent Pvid

2.2 W

Rated operational current for specified heat dissipation (In)

32 A

Static heat dissipation, non-current-dependent Pvs

2.1 W

Rated breaking capacity at 220/230 V

180 A

Rated breaking capacity at 380/400 V

180 A

Rated breaking capacity at 500 V

180 A

Rated breaking capacity at 660/690 V

120 A

Rated insulation voltage (Ui)

690 V

Rated making capacity up to 690 V (cos phi to IEC/EN 60947)

238 A

Rated operational current (Ie) at AC-1, 380 V, 400 V

415 V

32 A

Rated operational current (Ie) at AC-3, 220 V, 230 V

240 V

18 A

Rated operational current (Ie) at AC-3, 380 V, 400 V

415 V

18 A

Rated operational current (Ie) at AC-3

440 V

18 A

Rated operational current (Ie) at AC-3

500 V

18 A

Rated operational current (Ie) at AC-3, 660 V

690 V

12 A

Rated operational current (Ie) at DC-1

110 V

32 A

Rated operational current (Ie) at DC-1

220 V

32 A

Rated operational current (Ie) at DC-1

60 V

32 A

Rated operational power at AC-1, 220/230 V

50 Hz

12 kW

Rated operational power at AC-1, 240 V

50 Hz

13 kW

Rated operational power at AC-1, 380/400 V

50 Hz

20 kW

Rated operational power at AC-1, 415 V

50 Hz

22 kW

Rated operational power at AC-1, 440 V

50 Hz

23 kW

Rated operational power at AC-1, 500 V

50 Hz

26 kW

Rated operational power at AC-1, 690 V

50 Hz

35 kW

Rated operational power at AC-3, 240 V

50 Hz

5.5 kW

Rated operational power at AC-3, 380/400 V

50 Hz

7.5 kW

Rated operational power at AC-3, 415 V

50 Hz

10 kW

Rated operational power at AC-3, 440 V

50 Hz

10.5 kW

Rated operational power at AC-3, 500 V

Rated operational power at AC-3, 690 V

50 Hz

11 kW

Rated operational voltage (Ue) at AC - max

690 V

Interference immunity

According to EN 60947-1

Fitted with

Mirror contact

Number of poles

Four-pole

Application

Contactors for 4 pole electric consumers

Connection

Screw terminals

Degree of protection

IP00

Lifespan, mechanical

10,000,000 Operations (AC operated); 10,000,000 Operations (DC operated)

Operating frequency

5000 mechanical Operations/h (AC operated); 5000 mechanical Operations/h (DC operated)

Overvoltage category

III

Pollution degree

3

Product category

Contactors

Protection

Finger and back-of-hand proof, Protection against direct contact when actuated from front (EN 50274)

Rated impulse withstand voltage (Uimp)

8000 V AC

Residual current

1 mA (with actuation of A1 - A2 by the electronics with "0" signal)

Resistance per pole

2.7 mΩ

Utilization category

AC-1: Non-inductive or slightly inductive loads, resistance furnaces; AC-3: Normal AC induction motors: starting, switch off during running

Voltage type

AC

Drop-out voltage

AC operated: 0.6 - 0.4 x UC, AC operated

Duty factor

100 %

Pick-up voltage

0.8 - 1.1 V AC x Uc; 0.85 - 1.1 V AC/DC x Us

Power consumption, pick-up

50 Hz

50 VA, Dual-frequency coil in a cold state and 1.0 x Us

Power consumption, pick-up

60 Hz

50 VA, Dual-frequency coil in a cold state and 1.0 x Us; 40 W, Dual-frequency coil in a cold state and 1.0 x Us, at 60 Hz

Power consumption, sealing

50 Hz

2.1 W, Dual-frequency coil in a cold state and 1.0 x Us

Power consumption, sealing

60 Hz

8 VA, Dual-frequency coil in a cold state and 1.0 x Us, at 60 Hz; 2.1 W, Dual-frequency coil in a cold state and 1.0 x Us

Rated control supply voltage (Us) at AC

50 Hz - max

230 V

Rated control supply voltage (Us) at AC

50 Hz - min

230 V

Rated control supply voltage (Us) at AC

HS Code

8536.90

• EAN 4015081170388
• SAP 1000252312
• Code 81131866
