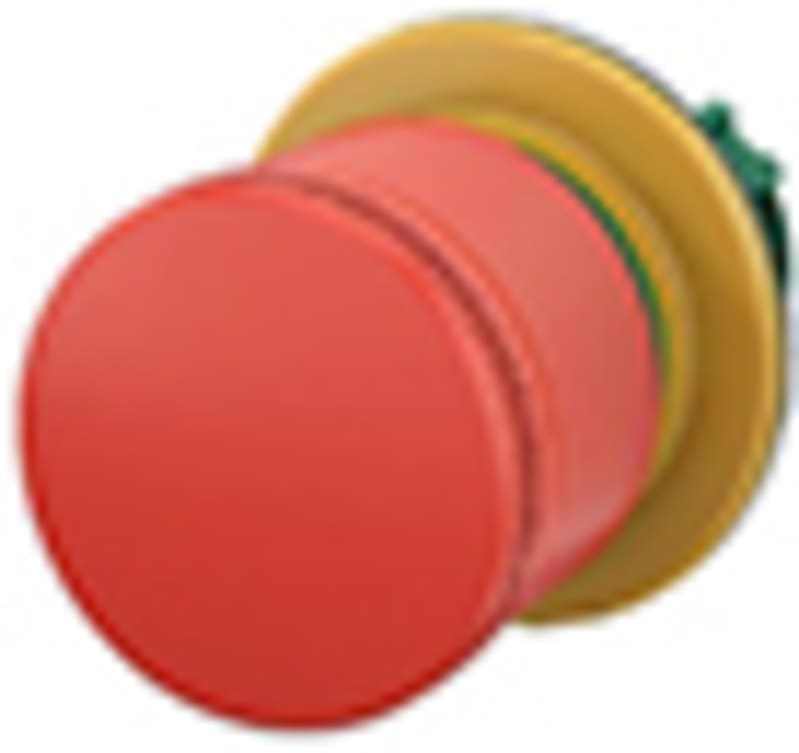

Emergency stop button M30-PV30

Eaton M30-PV30 Emergency stop button, RMQ-Titan, Soppform, pull-ut function.

Manufacturer part number (MPN)

M30-PV30 EAN / GTIN: 4015081942596 Sales unit: pcs Package quantity: 5 pcs Eaton catalogue number: 197543 Depth: 30 mm Height: 32 mm Width: 30 mm Weight: 0.03 kg Certifications: CCC; CSA; EN ISO 13850; CE; EAC; EN 50581; EN 60947-5-1; Machines 2006/42/EG Actuating force: 50 N Actuator color: Red Actuator diameter: 30 mm Actuator function: Pull-to-release; Switching function latching Design: Mushroom-shaped; Classical Illumination: Non-illuminated Unlocking method: Pull-release Ambient operating temperature - max: 70 °C Ambient operating temperature - min: -25 °C Climatic proofing: Damp heat, cyclic, to IEC 60068-2-30; Damp heat, constant, to IEC 60068-2-78 Connection to SmartWire-DT: No Base color: Yellow Bezel color: Other Bezel material: Other Features: Tamper-proof (according to ISO 13850, EN 418) Degree of protection: NEMA 4X; IP66; IP69 Lifespan, mechanical: 70,000 Operations Mounting position: As required Opening diameter: 30.5 mm Operating frequency: 600 Operations/h Product category: RMQ-Titan Size: Front dimensions: 35 mm Suitable for: Emergency stop Type: Controlled stop pushbutton/emergency-stop button Hole diameter: 30.5 mm Colour button: Red Suitable for lighting: No Spring-return: No Diameter cap: 30 mm Suitable for emergency stop: Yes Type of button: High With lighting: No With front ring: No Construction type lens: Round Switching function latching: Yes Country of origin: Germany

HS Code

8538.90

• EAN 4015081942596
• SAP 1200519935
• Code 82667657
