Eaton

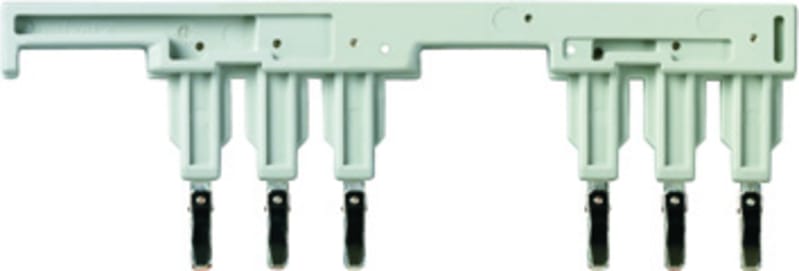

Y/D Connection SET for DILM7..12
Part numberDILM12-XSLEAN / GTIN4015082831301HS code8538.90
Electrical Components
Circuit Breaker Accessories
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Eaton DILM12-XSL Y/D Coupling.Set For Dilm7.12.
Technical Specifications
- Manufacturer part number (MPN)
- DILM12-XSL
- EAN / GTIN
- 4015082831301
- Sales unit
- pcs
- Eaton catalogue number
- 283130
- Depth
- 90 mm
- Height
- 20 mm
- Width
- 30 mm
- Weight
- 0.04 kg
- Certifications
- CE; CSA-C22.2 No. 14-05; CSA; CSA Class No.: 3211-05; CSA File No.: 012528; IEC/EN 60947-4-1; UL 508
- Ambient operating temperature - max
- 60 °C
- Ambient operating temperature - min
- -25 °C
- Equipment heat dissipation, current-dependent Pvid
- 6.6 W
- Heat dissipation per pole, current-dependent Pvid
- 2.2 W
- Rated operational current for specified heat dissipation (In)
- 22 A
- Fitted with
- Star-point bridge
- Model
- Star-delta switching
- Product category
- Accessories
- Suitable for number of poles
- 3
- Country of origin
- Czechia
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 4015082831301
- SAP 1000014381
- Code 8114466
Product Documentation
Document preview: Y/D KOBL.SET FOR DILM7..12 (DILM12-XSL) — Specification Data Sheet (OEM)
More from Eaton
Eaton
Eaton NZMH1-M63-SVE
Eaton
Enclosure Bottom G2 SideBySide 5-Row 150 mm
EP-501130
Eaton
P3 Main switch, 80 A,3 pole,Form M4/K2-G (1414043)
Eaton
Led Flashing light, Blue, 24V (SL7-BL24-B)
Eaton
Minikamswitch 1-0-2 1-Pole
TM-1-8210/EZ
Eaton
Eaton IZMX-THVL164-1
Eaton
Main switch,P1-40/I2H/MBS/SVB-SW/HI11
Eaton

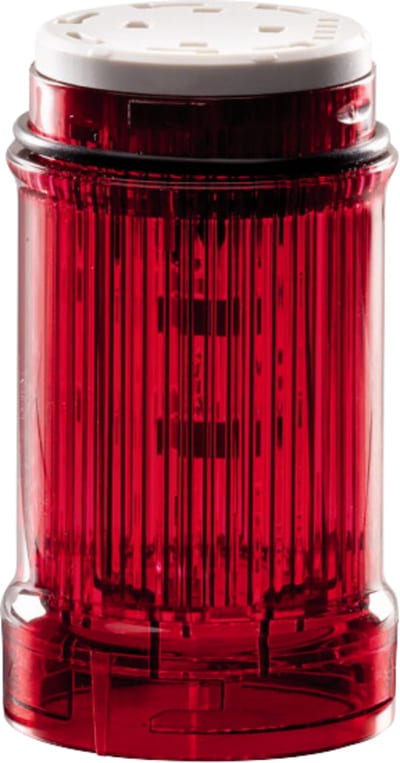

LED Strobe light, Red, 120V (SL4-FL120-R)
