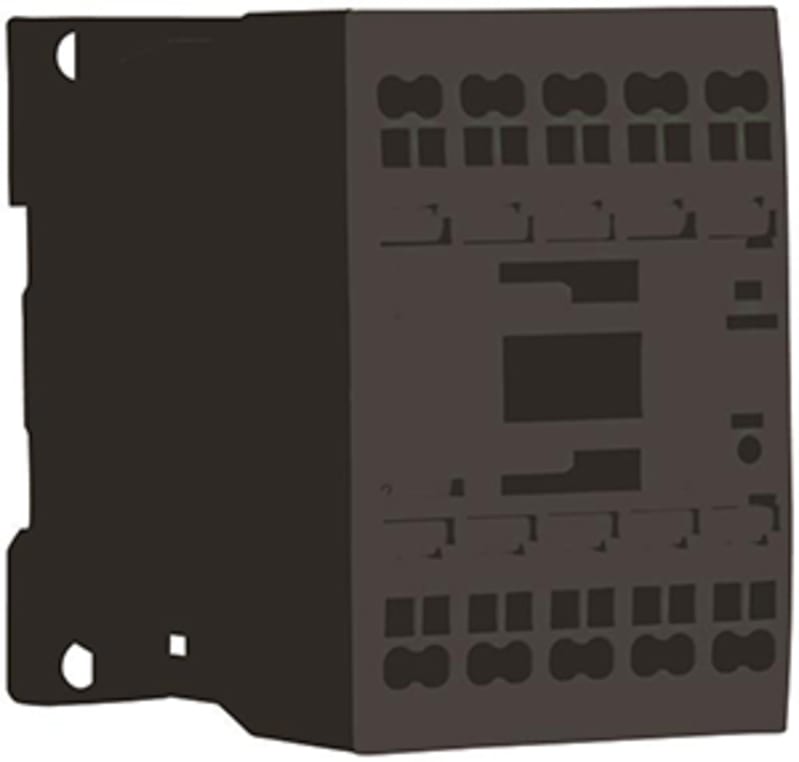

Contactor DILM9-10(24V50/60HZ)-PI

Eaton DILM9-10(24V50/60HZ)-PI Contactor, 3-pole, 380 V 400 V 4 kW, 1 N/O, 24 V 50/60 Hz, AC -Control, PI.

Manufacturer part number (MPN)

DILM9-10(24V50/60HZ)-PI

EAN / GTIN

4015081973156

HS code

8536.90

Sales unit

pcs

Eaton catalogue number

199231

Depth

75 mm

Height

68 mm

Width

45 mm

Weight

0.225 kg

Certifications

IEC/EN 60947; VDE 0660; UL Listed; CSA certified; UL Category Control No.: NLDX; CE marking; UL File No.: E29096; CSA Class No.: 2411-03

3211-04; CSA File No.

012528

Catalog Notes

Also tested according to AC-3e.

Ambient operating temperature - max

60 °C

Ambient storage temperature - max

80 °C

Ambient operating temperature - min

-25 °C

Ambient operating temperature (enclosed) - max

40 °C

Ambient operating temperature (enclosed) - min

-25 °C

Ambient storage temperature - min

-40 °C

Climatic proofing

Damp heat, cyclic, to IEC 60068-2-30; Damp heat, constant, to IEC 60068-2-78

Connection to SmartWire-DT

No

Number of main contacts (normally open contact)

3

Number of auxiliary contacts (normally closed contacts)

0

Number of auxiliary contacts (normally open contacts)

1

Number of contacts (normally open contacts)

1

Number of contacts (normally closed) as main contact

0

Conventional thermal current Ith (1-pole, enclosed)

45 A

Conventional thermal current Ith (3-pole, enclosed)

18 A

Conventional thermal current Ith at 55°C (3-pole, open)

21 A

Conventional thermal current Ith of main contacts (1-pole, open)

50 A

Heat dissipation capacity Pdiss

0 W

Rated breaking capacity at 220/230 V

90 A

Rated breaking capacity at 380/400 V

90 A

Rated breaking capacity at 500 V

70 A

Rated breaking capacity at 660/690 V

50 A

Rated insulation voltage (Ui)

690 V

Rated making capacity up to 690 V (cos phi to IEC/EN 60947)

112 A

Rated operational current (Ie) at AC-1, 380 V, 400 V

415 V

22 A

Rated operational current (Ie) at AC-3, 220 V, 230 V

240 V

9 A

Rated operational current (Ie) at AC-3, 380 V, 400 V

415 V

9 A

Rated operational current (Ie) at AC-3

440 V

9 A

Rated operational current (Ie) at AC-3

500 V

7 A

Rated operational current (Ie) at AC-3, 660 V

690 V

5 A

Rated operational current (Ie) at AC-4, 220 V, 230 V

240 V

6 A

Rated operational current (Ie) at AC-4

440 V

6 A

Rated operational current (Ie) at AC-4

500 V

5 A

Rated operational current (Ie) at AC-4, 660 V

690 V

4.5 A

Rated operational current (Ie) at DC-1

110 V

20 A

Rated operational current (Ie) at DC-1

220 V

15 A

Rated operational current (Ie) at DC-1

60 V

20 A

Rated operational power at AC-3, 240 V

50 Hz

3 kW

Rated operational power at AC-3, 380/400 V

50 Hz

4 kW

Rated operational power at AC-3, 415 V

50 Hz

5.5 kW

Rated operational power at AC-4, 220/230 V

50 Hz

1.5 kW

Rated operational power at AC-4, 240 V

50 Hz

1.6 kW

Rated operational power at AC-4, 415 V

50 Hz

2.8 kW

Rated operational power at AC-4, 440 V

Rated operational power at AC-4, 500 V

Rated operational power at AC-4, 660/690 V

50 Hz

3.6 kW

Rated operational voltage (Ue) at AC - max

690 V

Emitted interference

According to EN 60947-1

Interference immunity

According to EN 60947-1

Number of poles

Three-pole

Application

Contactors for Motors

Connection

Push in terminals

Degree of protection

IP20

Lifespan, mechanical

10,000,000 Operations (AC operated)

Operating frequency

9000 mechanical Operations/h (AC operated)

Overvoltage category

III

Pollution degree

3

Product category

Contactors

Protection

Finger and back-of-hand proof, Protection against direct contact when actuated from front (EN 50274)

Rated impulse withstand voltage (Uimp)

6000 V AC

Resistance per pole

2.5 mΩ

Suitable for

Also motors with efficiency class IE3

Utilization category

AC-1: Non-inductive or slightly inductive loads, resistance furnaces; AC-3: Normal AC induction motors: starting, switch off during running; AC-4: Normal AC induction motors: starting, plugging, reversing, inching

Voltage type

AC

Frame size

FS1

Arcing time

10 ms

Duty factor

100 %

Pick-up voltage

0.8 - 1.1 V AC x Uc

Power consumption, pick-up

50 Hz

27 VA, Dual-frequency coil in a cold state and 1.0 x Us

Power consumption, pick-up

60 Hz

25 VA, Dual-frequency coil in a cold state and 1.0 x Us

Power consumption, sealing

50 Hz

1.2 W, Dual-frequency coil in a cold state and 1.0 x Us; 1.4 W, Dual-frequency coil in a cold state and 1.0 x Us

Power consumption, sealing

60 Hz

4.2 VA, Dual-frequency coil in a cold state and 1.0 x Us, at 60 Hz; 3.3 VA, Dual-frequency coil in a cold state and 1.0 x Us, at 60 Hz; 1.2 W, Dual-frequency coil in a cold state and 1.0 x Us; 1.4 W, Dual-frequency coil in a cold state and 1.0 x Us

Rated control supply voltage (Us) at AC

50 Hz - max

24 V

Rated control supply voltage (Us) at AC

50 Hz - min

24 V

Rated control supply voltage (Us) at AC

60 Hz - max

24 V

Rated control supply voltage (Us) at AC

60 Hz - min

24 V

Switching time (AC operated, make contacts, closing delay) - max

21 ms

Switching time (AC operated, make contacts, closing delay) - min

15 ms

Switching time (AC operated, make contacts, opening delay) - max

18 ms

Switching time (AC operated, make contacts, opening delay) - min

9 ms

HS Code

8536.90

• EAN 4015081973156
• SAP 1200588283
• Code 82966219
