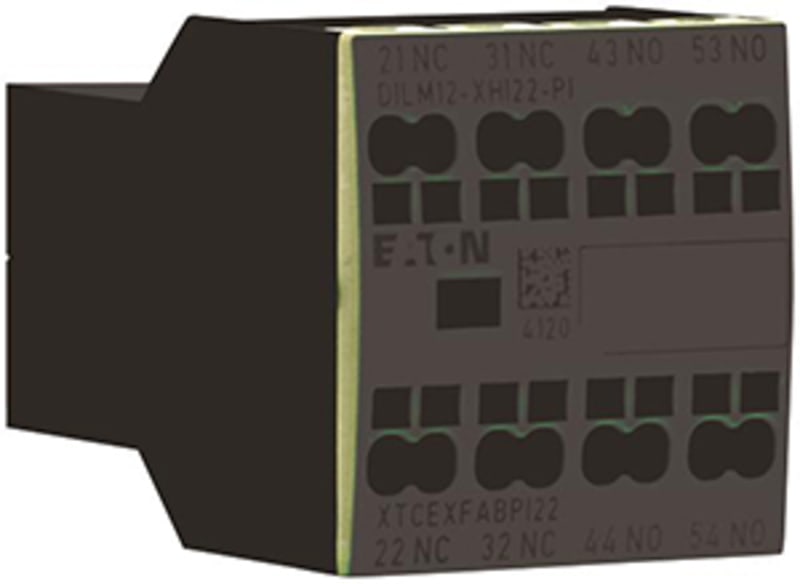

Auxiliary contactor DILM12-XHI22-PI

Eaton DILM12-XHI22-PI Auxiliary contactor, 4 pole, Ith= 16 A, 2 N/O, 2 NC, Front fixing, PI, DILM7 - DILM15.

Manufacturer part number (MPN)

DILM12-XHI22-PI

EAN / GTIN

4015081978649

HS code

8536.90

Sales unit

pcs

Package quantity

5 pcs

Eaton catalogue number

199458

Depth

54 mm

Height

38 mm

Width

36 mm

Weight

0.051 kg

Certifications

IEC/EN 60947; VDE 0660; CSA File No.: 012528; CSA Class No.: 3211-03; UL File No.: E29184; UL 508; CSA-C22.2 No. 14-05; CE marking; UL; CSA; UL Category Control No.: NKCR

Catalog Notes

Rated operational current: Switch-on and switch-off conditions based on DC-13, time constant as specified. Auxiliary contacts used as mirror contacts according to IEC/EN 60947-4-1 Appendix F (not N/C late open)

Shock resistance

7 g, N/O auxiliary contact, Basic unit with auxiliary contact module, Mechanical, according to IEC/EN 60068-2-27, Half-sinusoidal shock 10 ms; 5 g, N/C auxiliary contact, Basic unit with auxiliary contact module, Mechanical, according to IEC/EN 60068-2-27, Half-sinusoidal shock 10 ms

Ambient operating temperature - max

60 °C

Ambient storage temperature - max

80 °C

Ambient operating temperature - min

-25 °C

Ambient operating temperature (enclosed) - max

40 °C

Ambient operating temperature (enclosed) - min

-25 °C

Ambient storage temperature - min

-40 °C

Climatic proofing

Damp heat, cyclic, to IEC 60068-2-30; Damp heat, constant, to IEC 60068-2-78

Control circuit reliability

λ < 5 x 1/10⁷ (1 failure at 2,000,000 operations for Uₑ = 24 V DC, Umin = 17 V, Imin = 5.4 mA)

Number of contacts (change-over contacts)

0

Number of contacts (normally closed contacts)

2

Number of contacts (normally open contacts)

2

Conventional thermal current Ith at 60°C (3-pole, open)

16 A

Conventional thermal current Ith of auxiliary contacts (1-pole, open)

0.16 A

Rated insulation voltage (Ui)

690 V

Rated operational current (Ie)

10 A at 24 V, DC L/R ≤ 15 ms (with 1 contact in series); 6 A at 60 V, DC L/R ≤ 15 ms (with 1 contact in series); 3 A at 110 V, DC L/R ≤ 15 ms (with 1 contact in series); 1 A at 220 V, DC L/R ≤ 15 ms (with 1 contact in series)

Rated operational current (Ie) at AC-15, 220 V, 230 V, 240 V

4 A

Rated operational current (Ie) at AC-15, 380 V, 400 V, 415 V

4 A

Rated operational current (Ie) at AC-15, 500 V

1.5 A

Rated operational current (Ie) at DC-13, 110 V

0.5 A

Rated operational current (Ie) at DC-13, 220 V, 230 V

0.25 A

Rated operational current (Ie) at DC-13, 24 V

2.5 A

Rated operational current (Ie) at DC-13, 60 V

1 A

Rated operational voltage (Ue) at AC - max

500 V

Electric connection type

Push-in connection

Features

Interlocked opposing contacts within an auxiliary contact module (according to IEC 60947-5-1 Annex L)

Fitted with

Interlocked opposing contacts

Functions

For standard applications

Number of poles

Four-pole

Connection

Push in terminals

Degree of protection

IP20

Lifespan, electrical

1,300,000 Operations (at 230 V, AC-15, 3 A)

Lifespan, mechanical

10,000,000 Operations (DC operated); 10,000,000 Operations (AC operated)

Model

Top mounting

Mounting method

Front fastening

Overvoltage category

III

Pollution degree

3

Protection

Finger and back-of-hand proof, Protection against direct contact when actuated from front (EN 50274)

Rated impulse withstand voltage (Uimp)

6000 V AC

Type

Front mounting auxiliary contact

Safe isolation

400 V AC, Between coil and auxiliary contacts, According to EN 61140; 400 V AC, Between auxiliary contacts, According to EN 61140

Short-circuit protection rating without welding

10 A gG/gL, 500 V, Max. Fuse, Contacts

Switching capacity (auxiliary contacts, general use)

10 A, 600 V AC, (UL/CSA); 1 A, 250 V DC, (UL/CSA)

Switching capacity (auxiliary contacts, pilot duty)

A600, AC operated (UL/CSA); P300, DC operated (UL/CSA)

Terminal capacity (flexible with unisolated ferrule)

1 x (0.5 - 2.5) mm²; 2 x (0.5 - 2.5) mm²

Terminal capacity (flexible)

1 x (0.5 - 2.5) mm²; 2 x (0.5 - 2.5) mm²

Terminal capacity (flexible with ultrasonic welded cable end)

1 x (0.5 - 2.5) mm²; 2 x (0.5 - 2.5) mm²

Terminal capacity (solid)

1 x (0.5 - 2.5) mm²; 2 x (0.5 - 2.5) mm²

Terminal capacity (flexible with ferrule)

1 x (0.5 - 1.5) mm²; 2 x (0.5 - 1.5) mm²

Terminal capacity (solid/stranded AWG)

20 - 14
