Eaton

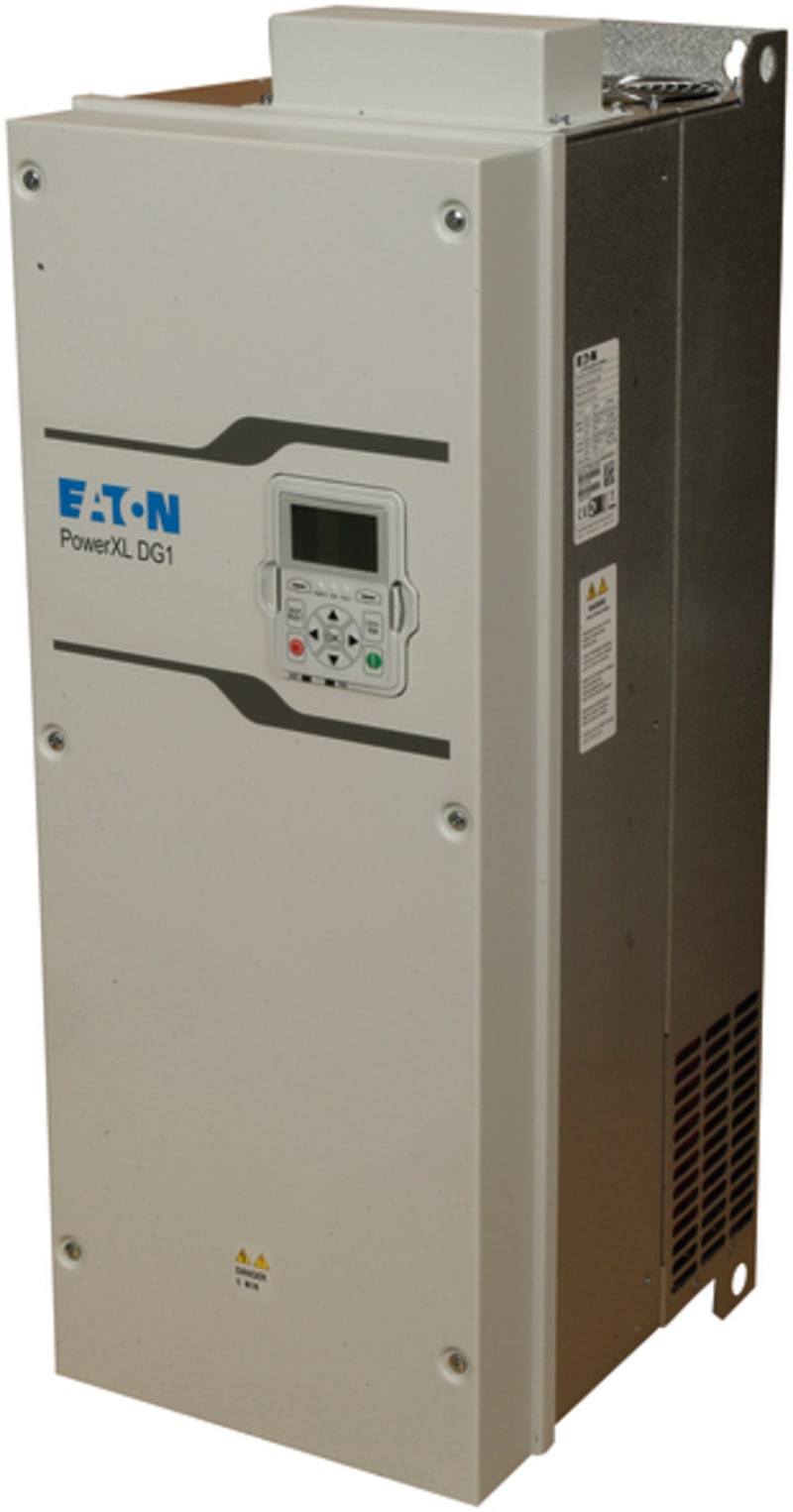

DG1 variable-frequency drive 400V: 75kW (DG1-34140FB-C21C)
Part numberDG1-34140FB-C21CEAN / GTIN4015081711048HS code8504.40
Drives & Controllers
Variable Frequency Drives
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Overview
Eaton DG1 variable-frequency drive 400V: 75kW (DG1-34140FB-C21C) is listed under Drives & Controllers / Variable Frequency Drives. HS code: 8504.40; Sales unit: pcs; Power: 75 kW; Voltage: 400 V; Width: 290 mm; Height: 888 mm.
Technical Specifications
- Manufacturer part number (MPN)
- DG1-34140FB-C21C
- EAN / GTIN
- 4015081711048
- HS code
- 8504.40
- Sales unit
- pcs
- Power
- 75 kW
- Voltage
- 400 V
- Width
- 290 mm
- Height
- 888 mm
- Depth
- 344 mm
- Power consumption
- 1594 W
- With control element
- Yes
- Number of digital inputs
- 8
- Number of digital outputs
- 1
- Number of analogue inputs
- 2
- Number of analogue outputs
- 2
- Supporting protocol for LON
- No
- Number of HW-interfaces industrial Ethernet
- 1
- Number of HW-interfaces RS-485
- 1
- Number of HW-interfaces other
- 1
- With optical interface
- No
- Supporting protocol for TCP/IP
- Yes
- Supporting protocol for ASI
- No
- Supporting protocol for PROFIBUS
- Yes
- Supporting protocol for CAN
- Yes
- Supporting protocol for INTERBUS
- No
- Supporting protocol for KNX
- No
- Supporting protocol for Modbus
- Yes
- Supporting protocol for Data-Highway
- No
- Supporting protocol for DeviceNet
- Yes
- Supporting protocol for SUCONET
- No
- Supporting protocol for other bus systems
- Yes
- Degree of protection (IP)
- IP21
- With PC connection
- Yes
- Supporting protocol for SERCOS
- No
- Supporting protocol for INTERBUS-Safety
- No
- Mains voltage
- 380–480 V
- Mains frequency
- 50/60 Hz
- 4-quadrant operation possible
- Yes
- Number of interfaces PROFINET
- 1
- Type of converter
- U converter
- Number of phases output
- 3
- Number of phases input
- 3
- Integrated breaking resistance
- Yes
- Application in industrial area permitted
- Yes
- Application in domestic- and commercial area permitted
- Yes
- Max. output frequency
- 400 Hz
- Max. output at linear load at rated output voltage
- 150 kW
- Max. output at quadratic load at rated output voltage
- 90 kW
- Relative symmetric net voltage tolerance
- 10 %
- Relative symmetric net frequency tolerance
- 10 %
- Supporting protocol for AS-Interface Safety at Work
- No
- Supporting protocol for DeviceNet Safety
- No
- Supporting protocol for EtherNet/IP
- No
- Supporting protocol for Foundation Fieldbus
- No
- Supporting protocol for PROFINET CBA
- No
- Supporting protocol for PROFINET IO
- Yes
- Supporting protocol for PROFIsafe
- No
- Supporting protocol for SafetyBUS p
- No
- Max. output voltage
- 480 V
- Nominal output current I2N
- 170 A
- Supporting protocol for BACnet
- Yes
- Country of origin
- China
Standards & Compliance
- HS Code
- 8504.40
Cross References
- EAN 4015081711048
- SAP 1200123785
- Code 81987669
Product Documentation
Document preview: DG1 variable-frequency drive 400V: 75kW (DG1-34140FB-C21C) — Specification sheet
