Eaton
Enclosure knockouts H×W×D=750X
Part numberCI44E-200-TEAN / GTIN4015080901471HS code8538.10
Enclosures
Industrial Enclosures
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Overview

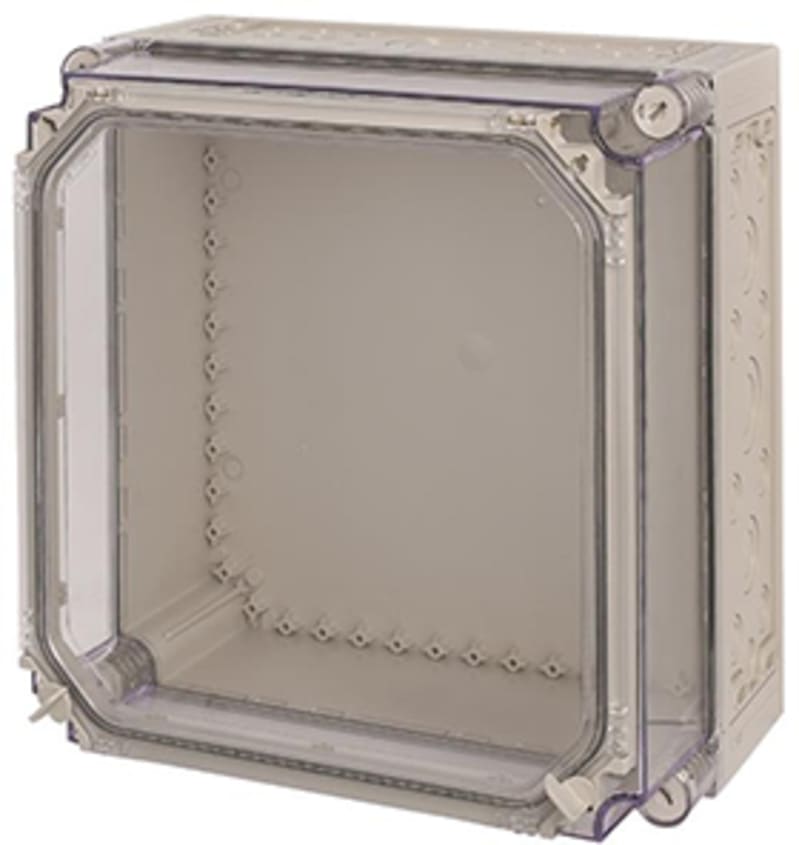

Eaton Enclosure knockouts H×W×D=750X (part number CI44E-200-T) is listed under Enclosures / Industrial Enclosures. Sales unit: pcs; Eaton catalogue number: 090147; Depth: 225 mm; Height: 375 mm; Width: 375 mm; Weight: 3.5 kg.
Technical Specifications
- Manufacturer part number (MPN)
- CI44E-200-T
- EAN / GTIN
- 4015080901471
- Sales unit
- pcs
- Eaton catalogue number
- 090147
- Depth
- 225 mm
- Height
- 375 mm
- Width
- 375 mm
- Weight
- 3.5 kg
- Compliances
- RoHS conform
- Certifications
- EN 62208; EN 61439-2
- Features
- UV resistance beneath protective shield; Cover with overpressure release
- Flammability characteristics (UL)
- V1 (base) (UL94); V2 (cover) (UL94)
- Functions
- Extension possible
- Protection class
- II
- RAL-number
- 7035
- Special features
- With metric knockouts in all sides of the enclosure Include fixing straps for wall mounting Sealable cover fasteners Full-area knockouts in the sides can be converted to a distribution board enclosure with door
- Suitable for
- Outdoor use; Lightning protection
- Used with
- Eaton Switching and protection devices
- Color
- Light gray (RAL 7035, base); Transparent, smoky gray (cover); Gray
- Nominal current
- 1600 A
- Type
- Basic enclosure Individual enclosures xEnergy Safety Ci
- Ambient operating temperature details
- -40 °C - 80 °C
- Temperature resistance
- Temperature resistant: -40 °C - 120 °C (enclosure); Temperature resistant: 80 °C (gasket); Temperature resistant: 85 °C (enclosure bolt)
- Circuit integrity
- Other
- Chemical resistance
- Resistant against: acids < 10 %, mineral oil, alcohol, gasoline, greases, salt solutions; Not resistant to: alkalis, benzene; Partly resistant to: Acids > 10 %
- Cover/door color
- Transparent
- Cover/door model
- Closed
- Cover/door type
- Transparent with transparent door; Door; Single
- Degree of protection
- IK10; IP65; Other
- Enclosure material
- Plastic
- Material
- Non-reinforced polycarbonate (cover); Glass-fibre reinforced polycarbonate (base); Halogen free
- Mounting depth with mounting plate
- 200 mm
- Number of conduit inlets
- 100
- Number of modules
- 1
- Number of openings (flange plates)
- 4
- Number of rows
- 0
- Plate thickness (cabinet)
- 6 mm
- Plate thickness (cover/door)
- 6 mm
- Saline spray resistance
- IEC 60068-2-11
- Surface finishing
- Resistant to corrosion
- Surface protection
- Other
- Surface treatment
- Resistant to corrosion
- Unit type
- Single unit
- Width in number of modular spacings
- 15
- Built-in depth
- 200 mm
- Internal depth
- 200 mm
- Mounting method
- Surface mounted (plaster)
- Colour
- Grey
- With mounting plate
- No
- Impact strength
- IK10
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8538.10
Cross References
- EAN 4015080901471
- SAP 1200396604
- Code 82518887
Product Documentation
Document preview: Enclosure knockouts HxBxD=750x (CI44E-200-T) — Specification Data Sheet (OEM)
