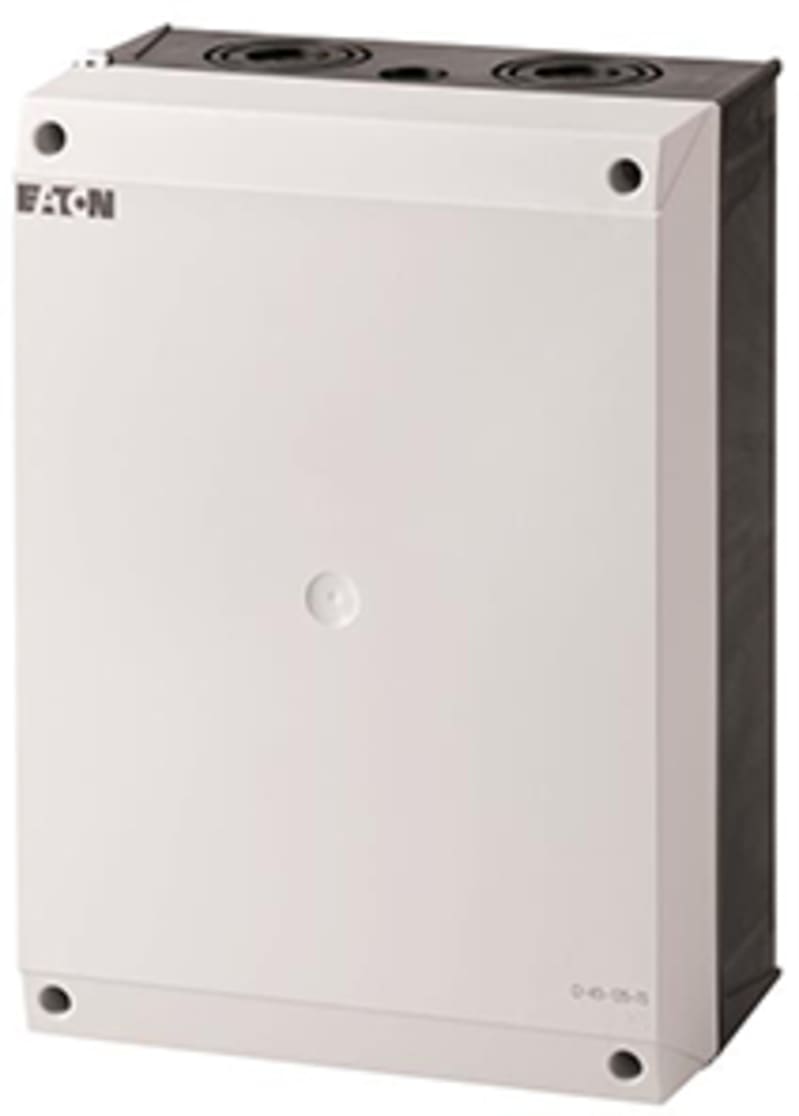

Insulated enclosure CI-K5-125-TS

Eaton CI-K5-125-TS Insulated enclosure, H×W×D=280x200x125mm, +DIN rail.

Manufacturer part number (MPN)

CI-K5-125-TS

EAN / GTIN

4015082068912

Sales unit

pcs

Eaton catalogue number

206891

Depth

125 mm

Height

280 mm

Width

200 mm

Weight

0.91 kg

Certifications

DIN EN 62208; IEC 60068-2-11; IEC/EN 60529; UL94: HB; UL94: VO/1.5 mm thickness

Catalog Notes

Lamp indicator L‐… can be mounted in base knock-out M20/M25

Type

Basic enclosure

Features

Halogen free; UV resistance beneath protective shield

Fitted with

Mounting rail to IEC/EN 60715; Weight of fitted components: max. 0.65 kg; Control cable entry

Climatic proofing

Damp heat, cyclic, to IEC 60068-2-30; Damp heat, constant, to IEC 60068-2-78

Enclosure material

1 Ω x 10¹³ (Surface resistance to IEC 60093); Plastic

Ambient operating temperature - max

70 °C

Ambient operating temperature - min

-25 °C

Heat dissipation capacity Pdiss

35 W

Mounting depth

93 mm

Mounting weight capacity - max

1 kg

Product category

Empty enclosures

Enclosure color

Light gray, Operator (RAL 7035); Light gray, Cover (RAL 7035); Black (RAL 9005)

Cover material

Glass-fiber reinforced polycarbonate

Degree of protection

IP65; NEMA Other

Model

Surface mounting

Dielectric strength

30 kV/mm, according to IEC 60243-1

Degree of protection (front side)

IP65

Temperature resistance

-40 - 80 °C (gasket); -40 - 120 °C (enclosure)

Suitable for

Emergency stop

Flammability characteristics

960 °C/1 mm thickness (base, cover; glow wire to VDE 0471 Part 2); 650 °C/1 mm thick (push-through membrane) to VDE 0471 Part 2)

Knockouts

Hard knockout version; Metric cable entry knockouts at the top, bottom and back plate

Impact resistance

IK06 (according to EN 50102)

Radiated heat dissipation with separate mounting

35 W (at an ambient temperature of 20 °C)

Surface treatment

Resistant to corrosion

Track resistance

CTI 175 (base, to IEC 60112); CTI 175 (cover, to IEC 60112)

Water consumption

0.29 % (According to DIN EN ISO 62)

With transparent cover

No

Suitable for emergency stop

Yes

Housing material

Plastic

Country of origin

Germany

HS Code

8538.90
