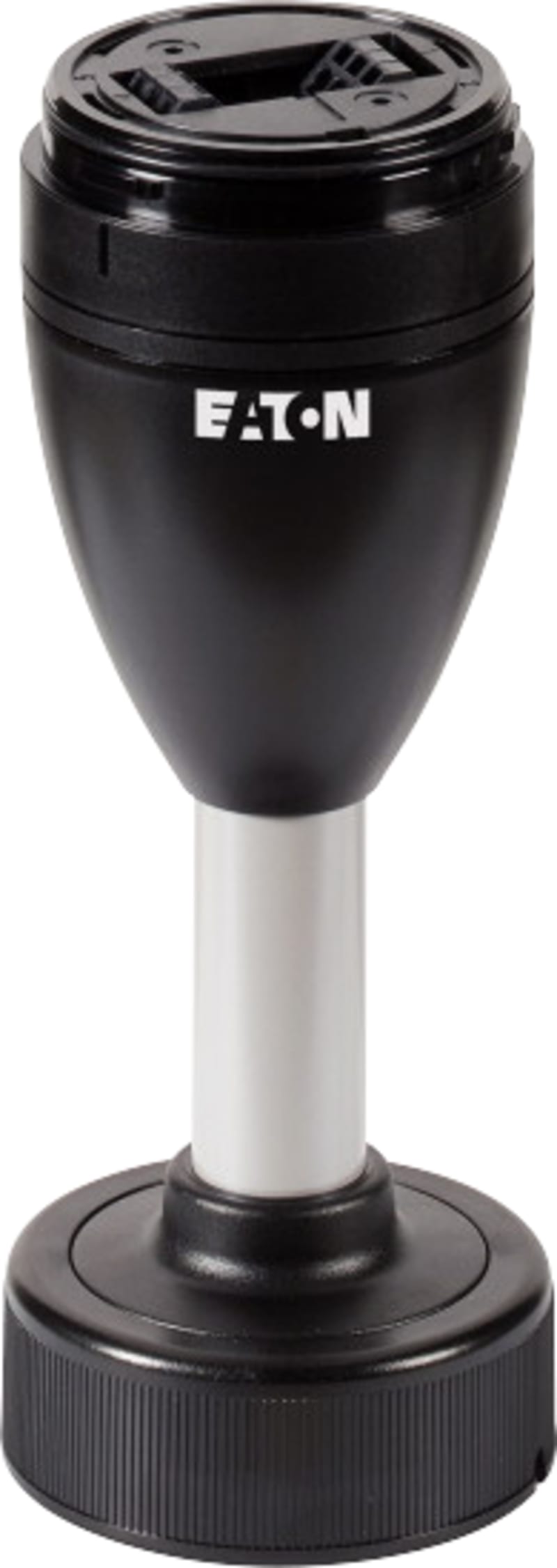

SWD Base (SL7-SWD)

Eaton SWD Base (SL7-SWD) is listed in the cBallast industrial catalogue. Sales unit: pcs; Eaton catalogue number: 171459; Depth: 81 mm; Height: 175 mm; Width: 81 mm; Weight: 0.231 kg.

Manufacturer part number (MPN)

SL7-SWD

EAN / GTIN

4015081677870

Sales unit

pcs

Eaton catalogue number

171459

Depth

81 mm

Height

175 mm

Width

81 mm

Weight

0.231 kg

Certifications

CE; IEC/EN 60529; CSA-C22.2 No. 14-10; CSA-C22.2 No. 94-91; IEC/EN 60947-5-1; UL 508

Ambient operating temperature - max

60 °C

Ambient operating temperature - min

-30 °C

Climatic proofing

Damp heat, cyclic, to IEC 60068-2-30; Damp heat, constant, to IEC 60068-2-78

Color

Other

Fitted with

Cover; Base adapter for slipping onto place (rapid mounting and wiring system)

Number of modules

Max. 5 (0.3 A per module); Max. 10 (with base for mounting on both sides); Max. 5 (with standard base)

Connection to SmartWire-DT

Yes

Degree of protection

IP66; NEMA 13; NEMA 4X; NEMA 4

Mounting Method

Floor; Horizontal; Bracket

Mounting position

As required

Product Category

SL signal towers SmartWire-DT slave

Shock resistance

15 g, Mechanical, According to IEC/EN 60068-2-27, Sinusoidal shock 11 ms; Mechanical, According to IEC/EN 60068-2-27

Tube length

100 mm

Type

Base module

Suitable for tube mounting

No

Suitable for angle mounting

Yes

Suitable for AS interface

No

Connection type auxiliary circuit

Spring clamp connection

Suitable for M12 connector

No

Suitable for IO link

No

Suitable for floor mounting

Yes

Country of origin

Austria

HS Code

8531.90
