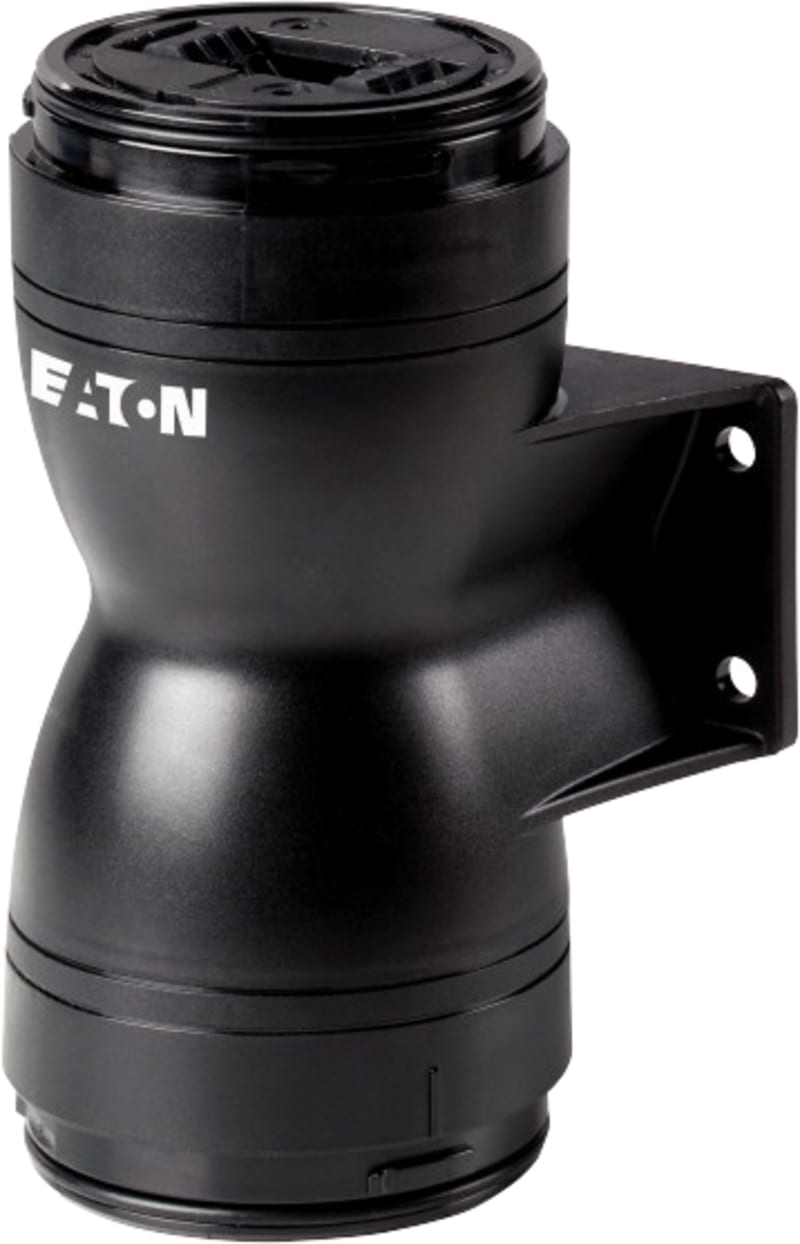

Base for vert.monering 2 sides (SL7-CB-D)
Pricing
Request a quote
We reply within 24 hours
Overview
Eaton Base for vert.monering 2 sides (SL7-CB-D) is listed in the cBallast industrial catalogue. Sales unit: pcs; Eaton catalogue number: 171451; Depth: 84 mm; Height: 141 mm; Width: 96 mm; Weight: 0.241 kg.
Technical Specifications
- Manufacturer part number (MPN)
- SL7-CB-D
- EAN / GTIN
- 4015081677801
- Sales unit
- pcs
- Eaton catalogue number
- 171451
- Depth
- 84 mm
- Height
- 141 mm
- Width
- 96 mm
- Weight
- 0.241 kg
- Certifications
- CE; UL File No.: E29184; UL 508; IEC/EN 60947-5-1; Certified by UL for use in Canada; IEC/EN 60529; UL; CSA-C22.2 No. 94-91; UL report applies to both US and Canada; UL Category Control No.: NKCR; CSA Class No.: NKCR7; CSA-C22.2 No. 14-10
- Ambient operating temperature - max
- 60 °C
- Ambient operating temperature - min
- -30 °C
- Climatic proofing
- Damp heat, cyclic, to IEC 60068-2-30; Damp heat, constant, to IEC 60068-2-78
- Rated insulation voltage (Ui)
- 250 V
- Rated operational voltage
- 110/120 V AC ± 10 %; 24 V AC/DC ± 10 %; 230/240 V AC ± 10 %
- Color
- Other
- Fitted with
- Cover; External fixing holes
- Number of modules
- Max. 2 x 5; Max. 10 (with base for mounting on both sides); Max. 5 (with standard base)
- Connection to SmartWire-DT
- No
- Degree of protection
- IP66; NEMA 4; NEMA 4X; NEMA 13
- Mounting Method
- Bracket; Vertical; Floor
- Mounting position
- As required
- Overvoltage category
- III
- Pollution degree
- 3
- Product Category
- SL signal towers
- Rated impulse withstand voltage (Uimp)
- 4000 V AC
- Shock resistance
- 15 g, Mechanical, According to IEC/EN 60068-2-27, Sinusoidal shock 11 ms; Mechanical, According to IEC/EN 60068-2-27
- Type
- Base module
- Terminal capacity (AWG)
- 24 - 14
- Terminal capacity (flexible with ferrule and plastic collar)
- 0.25 - 1.5 mm²
- Terminal capacity (solid/flexible)
- 0.13 - 2.5 mm²
- Suitable for tube mounting
- No
- Suitable for angle mounting
- Yes
- Suitable for AS interface
- No
- Connection type auxiliary circuit
- Spring clamp connection
- Suitable for M12 connector
- No
- Suitable for IO link
- No
- Suitable for floor mounting
- Yes
- Country of origin
- Austria
Standards & Compliance
- HS Code
- 8531.90
Cross References
- EAN 4015081677801
- SAP 1000492339
- Code 8282609
Product Documentation
More from Eaton
Eaton
Motor protection circuit breaker, trip block (PKE-XTUA-12)
Eaton
Hex nut M5, VZN (XNNSKM-M5)
Eaton

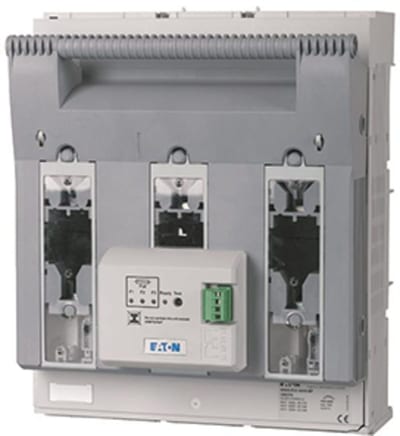

NH13 Switch-disconnector 3P630B/E (XNH3-FCE-A630-BT)
Eaton

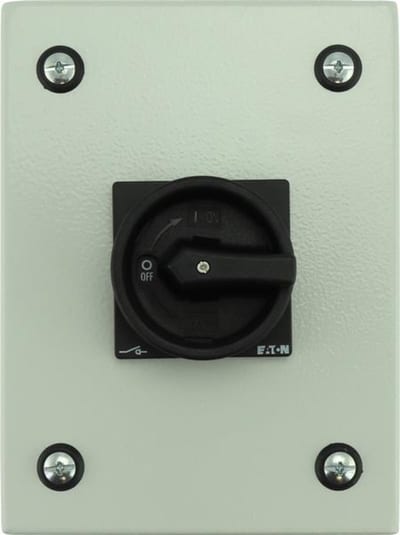

Main switch,P1-40/SE1/SVB-SW/HI11
Eaton

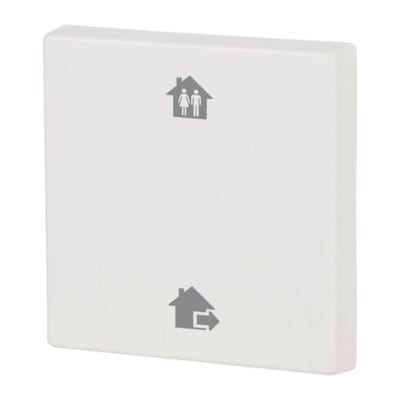

Eaton Single Rocker Signal White Home/Away
CWIZ-01/78
Eaton

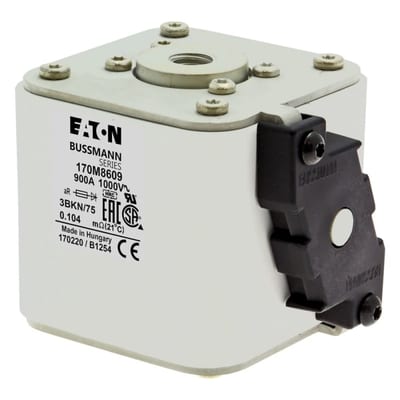

High-speed fuse 900A 1000 VAC aR
170M8609
Eaton

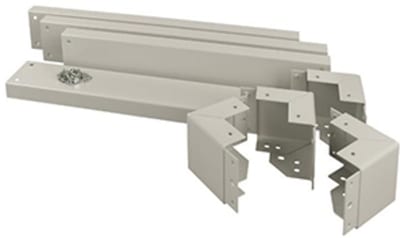

Plinth xE Light (XLSPH1858)
Eaton

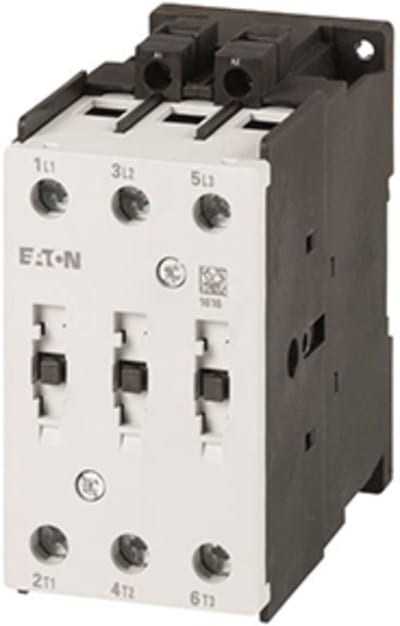

Eaton DILMT50(RDC24) Contactor, 3-Pole, 22 kW, 24 V DC Coil
