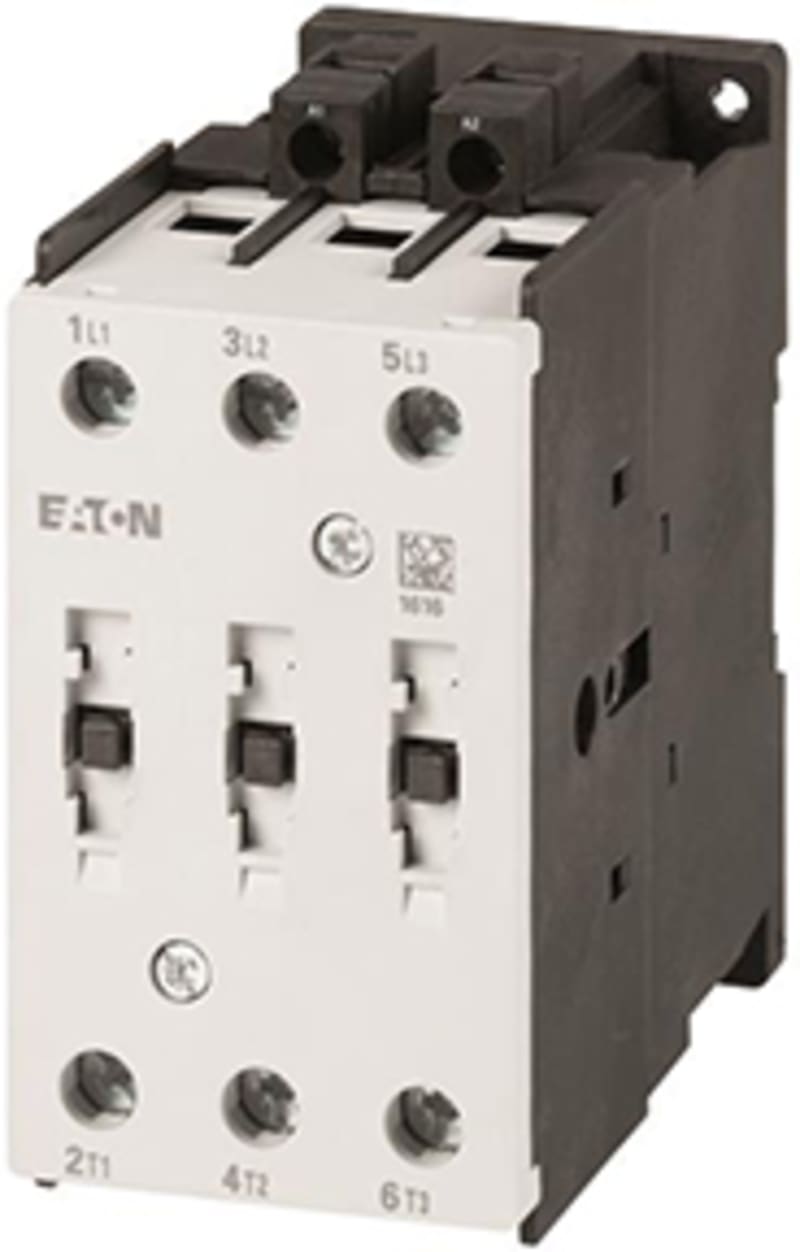

Eaton DILMT50(RDC24) Contactor, 3-Pole, 22 kW, 24 V DC Coil

Eaton DILMT50(RDC24) contactor, 3-pole, 380 V/400 V: 22 kW, 24 V DC, DC operated, screw terminals.

Manufacturer part number (MPN)

DILMT50(RDC24)

EAN / GTIN

4015081912070

HS code

8536.90

Sales unit

pcs

Eaton catalogue number

190984

Depth

108.1 mm

Height

103.6 mm

Width

55 mm

Weight

0.776 kg

Certifications

EN 60335-1; GB14048; IEC/EN 60947

Catalog Notes

Not suitable for motors with efficiency class IE3.

Ambient operating temperature - max

55 °C

Ambient storage temperature - max

80 °C

Ambient operating temperature - min

-25 °C

Ambient storage temperature - min

-40 °C

Climatic proofing

Damp heat, constant, to IEC 60068-2-78; Damp heat, cyclic, to IEC 60068-2-30

Number of auxiliary contacts (normally closed contacts)

0

Number of auxiliary contacts (normally open contacts)

0

Rated breaking capacity at 380/400 V

400 A

Rated insulation voltage (Ui)

690 V

Rated operational current (Ie) at AC-1, 380 V, 400 V, 415 V

70 A

Rated operational current (Ie) at AC-3, 220 V, 230 V, 240 V

50 A

Rated operational current (Ie) at AC-3, 380 V, 400 V, 415 V

50 A

Rated operational power at AC-3, 380/400 V, 50 Hz

22 kW

Rated operational power at AC-3, 690 V, 50 Hz

30 kW

Rated operational voltage (Ue) at AC - max

690 V

Fitted with

Varistor suppressor circuit

Number of poles

Three-pole

Application

Contactors for Motors

Connection to SmartWire-DT

No

Degree of protection

IP20

Frame size

FS3

Lifespan, mechanical

5,000,000 Operations (DC operated)

Operating frequency

3600 mechanical Operations/h (DC operated)

Overvoltage category

III

Pollution degree

3

Product category

Contactors

Rated impulse withstand voltage (Uimp)

6000 V AC

Used with

DILMT95-XHI11-SR and DILT-XHI01(10)

Utilization category

AC-1: Non-inductive or slightly inductive loads, resistance furnaces; AC-4: Normal AC induction motors: starting, plugging, reversing, inching

Voltage type

DC

Rated control supply voltage (Us) at DC - max

24 V

Rated control supply voltage (Us) at DC - min

24 V

Screw size

M6, Terminal screw; M3.5, Terminal screw

Screwdriver size

2, Terminal screw, Pozidriv screwdriver; 2, Terminal screw, Control circuit cables, Pozidriv screwdriver

Stripping length (control circuit cable)

14 mm

Stripping length (main cable)

14 mm

Terminal capacity (solid)

2 x (0.75 - 2.5) mm²; 1 x (0.75 - 2.5) mm²; 1 x (2.5 - 25) mm², Main cables; 2 x (2.5 - 16) mm², Main cables

Terminal capacity (stranded)

1 x (2.5 - 25) mm²; 2 x (2.5 - 16) mm²

Tightening torque

1.2 Nm, Screw terminals

HS Code

8536.90

• EAN 4015081912070
• SAP 1200519992
