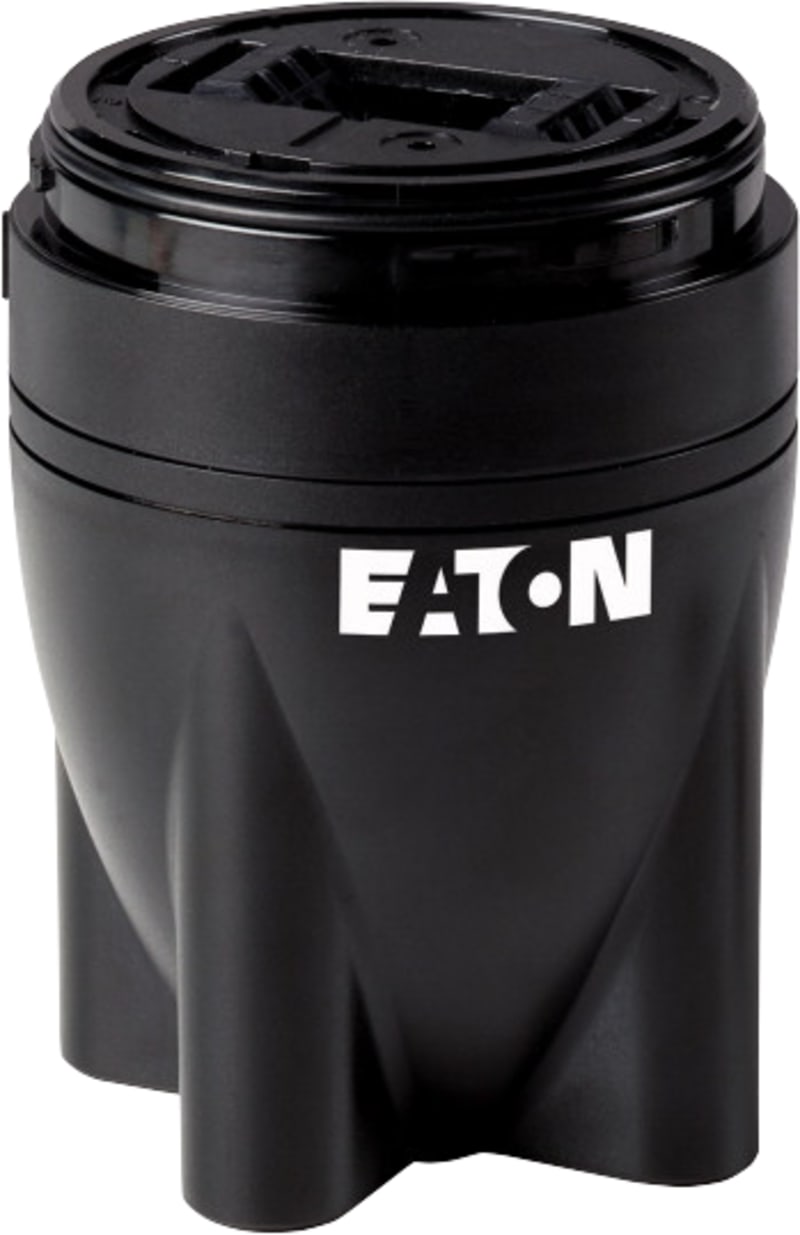

Base, prefabricated screws (SL7-CB-IMS)
Pricing
Request a quote
We reply within 24 hours
Overview
Eaton Base, prefabricated screws (SL7-CB-IMS) is listed in the cBallast industrial catalogue. Sales unit: pcs; Eaton catalogue number: 171448; Depth: 73 mm; Height: 90 mm; Width: 73 mm; Weight: 0.194 kg.
Technical Specifications
- Manufacturer part number (MPN)
- SL7-CB-IMS
- EAN / GTIN
- 4015081677788
- Sales unit
- pcs
- Eaton catalogue number
- 171448
- Depth
- 73 mm
- Height
- 90 mm
- Width
- 73 mm
- Weight
- 0.194 kg
- Certifications
- CE; IEC/EN 60947-5-1; UL; CSA-C22.2 No. 14-10; UL report applies to both US and Canada; CSA Class No.: NKCR7; CSA-C22.2 No. 94-91; UL Category Control No.: NKCR; IEC/EN 60529; UL 508; Certified by UL for use in Canada; UL File No.: E29184
- Ambient operating temperature - max
- 60 °C
- Ambient operating temperature - min
- -30 °C
- Climatic proofing
- Damp heat, constant, to IEC 60068-2-78; Damp heat, cyclic, to IEC 60068-2-30
- Rated insulation voltage (Ui)
- 250 V
- Rated operational voltage
- 110/120 V AC ± 10 %; 24 V AC/DC ± 10 %; 230/240 V AC ± 10 %
- Color
- Other
- Fitted with
- Cover; Built-in (pre-assembled) fixing screws
- Number of modules
- Max. 10 (with base for mounting on both sides); Max. 5; Max. 5 (with standard base)
- Connection to SmartWire-DT
- No
- Degree of protection
- IP66; NEMA 13; NEMA 4; NEMA 4X
- Mounting Method
- Floor; Bracket; Horizontal
- Mounting position
- As required
- Overvoltage category
- III
- Pollution degree
- 3
- Product Category
- SL signal towers
- Rated impulse withstand voltage (Uimp)
- 4000 V AC
- Shock resistance
- Mechanical, According to IEC/EN 60068-2-27; 15 g, Mechanical, According to IEC/EN 60068-2-27, Sinusoidal shock 11 ms
- Type
- Base module
- Terminal capacity (AWG)
- 24 - 14
- Terminal capacity (flexible with ferrule and plastic collar)
- 0.25 - 1.5 mm²
- Terminal capacity (solid/flexible)
- 0.13 - 2.5 mm²
- Suitable for tube mounting
- No
- Suitable for angle mounting
- Yes
- Suitable for AS interface
- No
- Connection type auxiliary circuit
- Spring clamp connection
- Suitable for M12 connector
- No
- Suitable for IO link
- No
- Suitable for floor mounting
- Yes
- Country of origin
- Austria
Standards & Compliance
- HS Code
- 8531.90
Cross References
- EAN 4015081677788
- SAP 1000492332
- Code 8951830
Product Documentation
More from Eaton
Eaton
Eaton Contactor 3-Pole 37 kW 24 V DC (DILMT80(RDC24))
Eaton
Front Cover HxB=100X1350MM
BPZ-FS-1350/1
Eaton
Y/D-Tidrele 60SEK 24-240VDC/AC
ETR4-51-A
Eaton

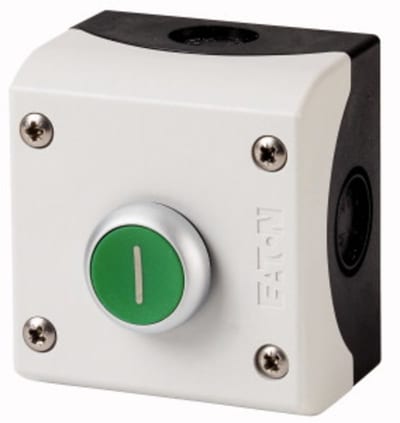

Green Push Button, Complete in Enclosure
M22-D-G-X1/KC11/I
Eaton
Residual Current CB FRCDM-63/4/03-S/A
168638
Eaton
Tettings Kit CI cover brackets
PLV200-CI
Eaton

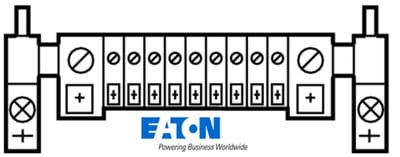

PE (pen-) rail (PEN23RS27)
Eaton

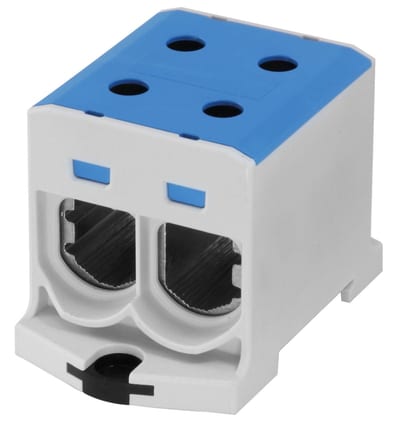

Terminal block 2X150 mm² blue
