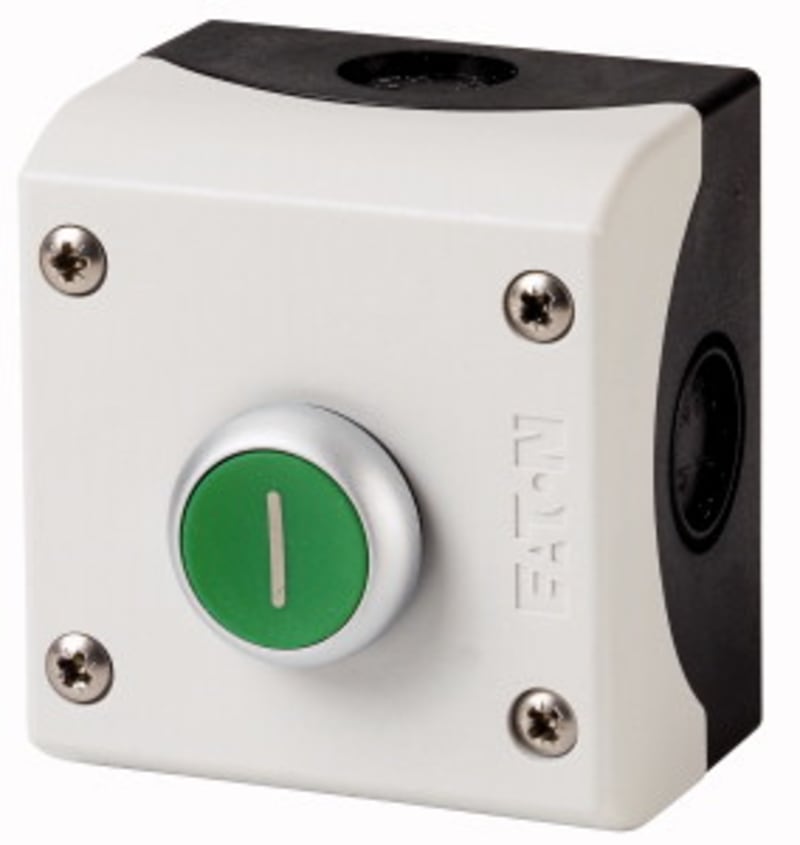

Green Push Button, Complete in Enclosure

Eaton M22-D-G-X1/KC11/I green push button, complete in surface enclosure, with 1 N/O + 1 N/C contacts.

Manufacturer part number (MPN)

M22-D-G-X1/KC11/I

EAN / GTIN

4015082165222

Sales unit

pcs

Eaton catalogue number

216522

Depth

70 mm

Height

70 mm

Width

72 mm

Weight

0.185 kg

Certifications

UL Category Control No.: NKCR; UL; CE; CSA-C22.2 No. 14-05; CSA Class No.: 3211-03; CSA-C22.2 No. 94-91; UL 508; IEC/EN 60947-5; IEC/EN 60947; CSA File No.: 012528; VDE 0660; CSA

Catalog Notes

Contacts with safety function, by positive opening to IEC/EN 60947-5-1

Actuating force

5 N

Actuator color

Green

Actuator function

Momentary

Actuator travel and actuation force (DIN EN 60947-5-1)

4.8 mm

Bezel color

Titanium

Design

Enclosure

Enclosure color

Gray

Enclosure material

Plastic

Inscription

Inscribed

Knob travel

5.7 mm

Knockouts

2 x M25/20 (cable entry knockouts at the side); 1 x M20 (cable entry knockout at the side); 2 x M16 (cable entry knockouts at the base)

Number of command positions

1

Number of locations

1

RAL-number

7035

Ambient operating temperature - max

70 °C

Ambient operating temperature - min

-25 °C

Climatic proofing

Damp heat, cyclic, to IEC 60068-2-30; Damp heat, constant, to IEC 60068-2-78

Connection to SmartWire-DT

No

Heat dissipation per pole, current-dependent Pvid

0.11 W

Rated operational current for specified heat dissipation (In)

6 A

Rated control supply voltage (Us) at AC, 50 Hz - max

500 V

Rated control supply voltage (Us) at AC, 50 Hz - min

115 V

Rated control supply voltage (Us) at AC, 60 Hz - max

500 V

Rated control supply voltage (Us) at AC, 60 Hz - min

115 V

Rated control supply voltage (Us) at DC - max

220 V

Rated control supply voltage (Us) at DC - min

24 V

Degree of protection

IP67/IP69K; NEMA 4X, 13

Lifespan

1,000,000 mechanical Operations

Mounting position

As required

Operating frequency

1800 Operations/h

Product category

RMQ-Titan

Size

Front dimensions: 22 x 22 mm

Type

Pushbutton actuator

Rated conditional short-circuit current (Iq)

1 kA

Housing colour

Grey

Colour housing cover

Grey

Suitable for emergency stop

No

Housing material

Plastic

Rated control supply voltage AC 50 Hz

115–500 V

Rated control supply voltage AC 60 Hz

115–500 V

Rated control supply voltage DC

24–220 V

Explosion-tested version

No

Number of push buttons

1

Number of contacts as normally closed contact

1

Number of contacts as normally open contact

1

Country of origin

Germany

HS Code

8538.90
