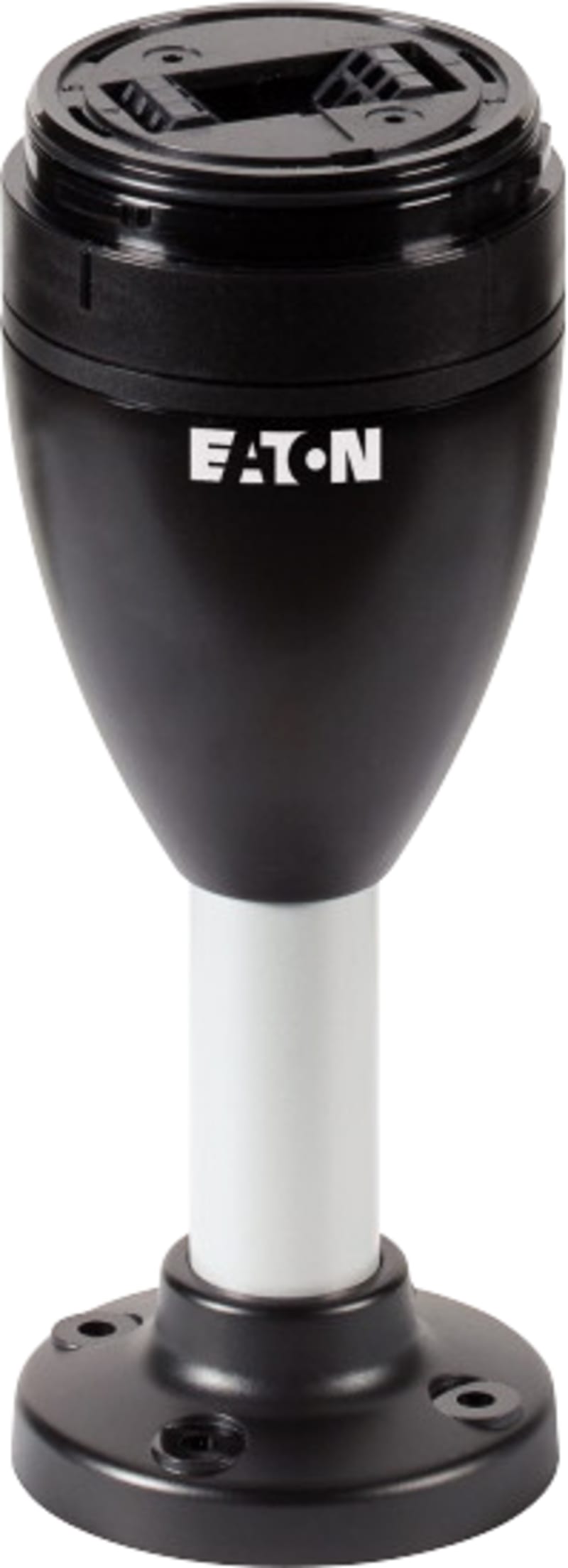

Base 100mm Aluminium Tube with Foot (SL7-CB-100)
Pricing
Request a quote
We reply within 24 hours
Overview
Eaton Base 100mm Aluminium Tube with Foot (SL7-CB-100) is listed under Metals & Profiles / Bars, Plates & Profiles. Sales unit: pcs; Eaton catalogue number: 171443; Depth: 73 mm; Height: 184 mm; Width: 73 mm; Weight: 0.264 kg.
Technical Specifications
- Manufacturer part number (MPN)
- SL7-CB-100
- EAN / GTIN
- 4015081677733
- Sales unit
- pcs
- Eaton catalogue number
- 171443
- Depth
- 73 mm
- Height
- 184 mm
- Width
- 73 mm
- Weight
- 0.264 kg
- Certifications
- UL 508; UL; Certified by UL for use in Canada; CSA Class No.: NKCR7; IEC/EN 60947-5-1; CE; CSA-C22.2 No. 94-91; UL report applies to both US and Canada; UL Category Control No.: NKCR; CSA-C22.2 No. 14-10; IEC/EN 60529; UL File No.: E29184
- Ambient operating temperature - max
- 60 °C
- Ambient operating temperature - min
- -30 °C
- Climatic proofing
- Damp heat, constant, to IEC 60068-2-78; Damp heat, cyclic, to IEC 60068-2-30
- Rated insulation voltage (Ui)
- 250 V
- Rated operational voltage
- 24 V AC/DC ± 10 %; 110/120 V AC ± 10 %; 230/240 V AC ± 10 %
- Color
- Other
- Fitted with
- Aluminum tube; Plastic foot; Cover
- Number of modules
- Max. 10 (with base for mounting on both sides); Max. 5 (with standard base); Max. 5
- Connection to SmartWire-DT
- No
- Degree of protection
- IP66; NEMA 13; NEMA 4X; NEMA 4
- Mounting Method
- Floor; Bracket; Horizontal
- Mounting position
- As required
- Overvoltage category
- III
- Pollution degree
- 3
- Product Category
- SL signal towers
- Rated impulse withstand voltage (Uimp)
- 4000 V AC
- Shock resistance
- Mechanical, According to IEC/EN 60068-2-27; 15 g, Mechanical, According to IEC/EN 60068-2-27, Sinusoidal shock 11 ms
- Tube length
- 100 mm
- Type
- Base module
- Terminal capacity (AWG)
- 24 - 14
- Terminal capacity (flexible with ferrule and plastic collar)
- 0.25 - 1.5 mm²
- Terminal capacity (solid/flexible)
- 0.13 - 2.5 mm²
- Suitable for tube mounting
- No
- Suitable for angle mounting
- Yes
- Suitable for AS interface
- No
- Connection type auxiliary circuit
- Spring clamp connection
- Suitable for M12 connector
- No
- Suitable for IO link
- No
- Suitable for floor mounting
- Yes
- Country of origin
- Austria
Standards & Compliance
- HS Code
- 8531.90
Cross References
- EAN 4015081677733
- SAP 1000492325
- Code 8605787
Product Documentation
More from Eaton
Eaton
Eaton AZ-2-D100 Miniature Circuit Breaker — 2P, Type D, 100 A, up to 25 kA
Eaton
Unit breaker 1P 50A C
AZ-C50
Eaton
Insert G2 OvU 2-Row 83 - 106 mm
EP-501163
Eaton
Motor Protection NZMN1-M63
Eaton
Contactor, lyslast, DILL12(230V50HZ) (DILL12(230V50HZ,240V60HZ))
Eaton
Eaton FAZ-Z10/1 Miniature Circuit Breaker — 1P, Type Z, 10 A, 15 kA
Eaton
Eaton NZM2-XAD250
Eaton

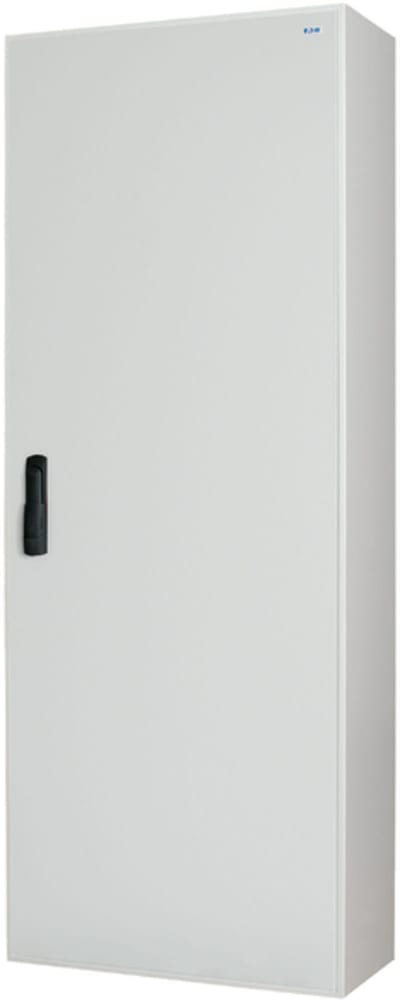

Wall-mount cabinet IP55 xE Basic H1060 B600 D270
