Eaton

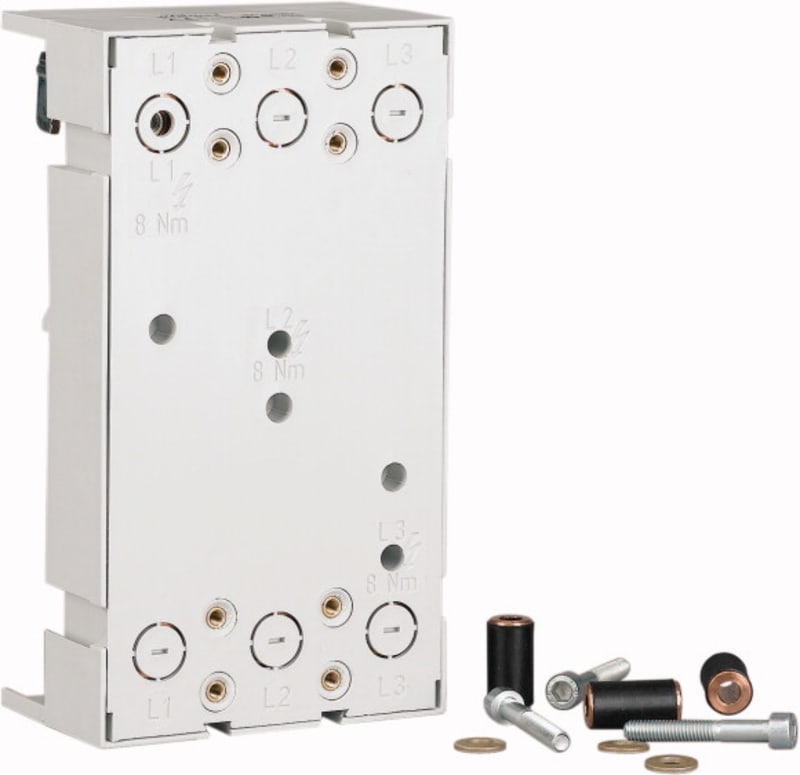

Eaton NZM2-XAD250
Part numberNZM2-XAD250EAN / GTIN4015081043736HS code8536.90
Electrical Components
Busbar Systems
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Overview
Eaton NZM2-XAD250 is listed under Electrical Components / Busbar Systems. Sales unit: pcs; Eaton catalogue number: 104555; Depth: 192 mm; Height: 35 mm; Width: 106 mm; Weight: 0.828 kg.
Technical Specifications
- Manufacturer part number (MPN)
- NZM2-XAD250
- EAN / GTIN
- 4015081043736
- Sales unit
- pcs
- Eaton catalogue number
- 104555
- Depth
- 192 mm
- Height
- 35 mm
- Width
- 106 mm
- Weight
- 0.828 kg
- Compliances
- CE marking; CSA-C22.2 No. 14; IEC 60439-1; UL CSA09 (refer to approbation report); UL508A; RoHS conform
- Certifications
- UL (File No. E300273); North America (UL listed, CSA certified); CSA (Class No. 3211-37); CSA (File No. 236217); UL (Category Control Number NMTR, NMTR7)
- Features
- Self-extinguishing acc. UL 94
- Functions
- Busbar adapters for NZM; Current limiting circuit breaker, refer to approbation report; Component adapter for circuit breakers and switch-disconnector
- Suitable for
- Surface mounting on flat copper busbars 12 – 30 x 5 – 10, double T and triple T profile
- Used with
- N(S)2; PN2,; Feeder circuits; NZM2; Busbar adapters for NZM; Compact system; 60 mm system
- Nominal current
- 250 A
- Number of poles
- Three-pole
- Type
- 60 mm system Busbar adapters for NZM Compact system
- Equipment heat dissipation, current-dependent Pvid
- 10 W
- Temperature resistance
- Up to 120 °C
- Creepage resistance
- CTI 200
- Electric connection type
- Other
- Rated operation current (Ie)
- 250 A
- Voltage rating (UL CSA 13)
- Max. 600 V AC
- Voltage rating at AC
- 690 V AC
- Adapter width
- 106 mm
- Busbar adapter width
- 106 mm
- Busbar distance
- 60 mm
- Busbar thickness - max
- 10 mm
- Busbar thickness - min
- 5 mm
- Degree of protection
- Feeder circuits
- Mounting rail armament
- None
- Rail width
- 30 mm
- Rated current In
- 250 A
- Min. busbar thickness
- 5 mm
- Max. busbar thickness
- 10 mm
- Width of the adaptor
- 106 mm
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4015081043736
- SAP 1000083706
- Code 8799636
Product Documentation
Document preview: Eaton NZM2-XAD250 — Specification Data Sheet (OEM)
More from Eaton
Eaton
Wall-mount cabinet IP55 xE Basic H1060 B600 D270
BPM-O-600/10-P
Eaton

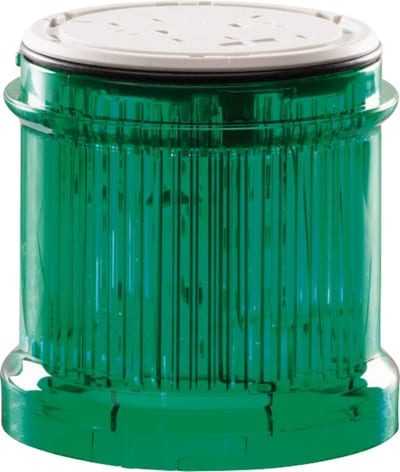

LED flashing light, Green, 120V (SL7-BL120-G)
Eaton
Eaton IZMX-THVL163-1
Eaton
Connection terminals EML28
Eaton
Kont.m Darw DILM7-38 2DI
DIL-SWD-32-001
Eaton
Soft starter DS7-342SX007N0-N
Eaton

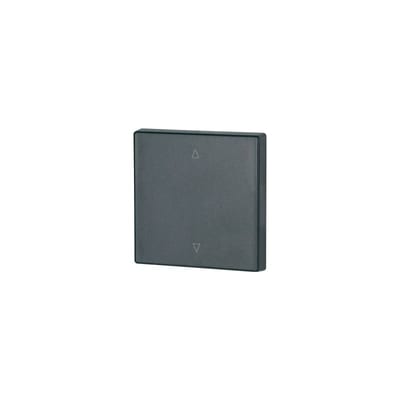

Eaton CWIZ-01/29 Single Rocker Matt Black 55x55 mm O/N
