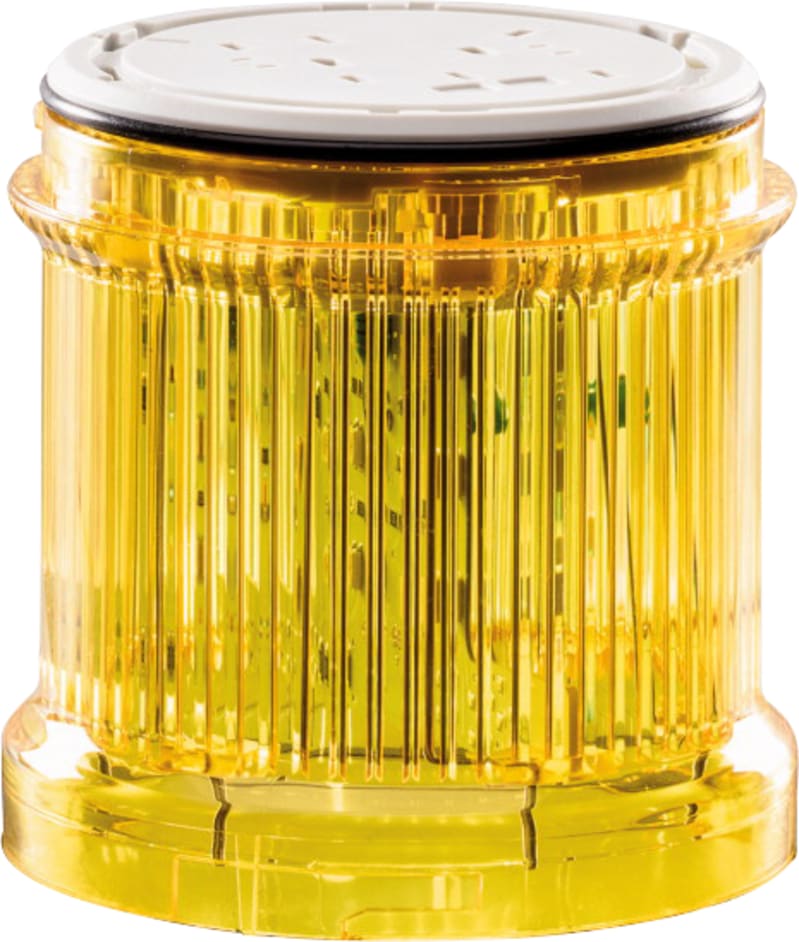

LED Strobe light, Yellow, 120V (SL7-FL120-Y)
Pricing
Request a quote
We reply within 24 hours
Overview
Eaton LED Strobe light, Yellow, 120V (SL7-FL120-Y) is listed under Control & Automation / Pushbuttons & Pilot Lights. Sales unit: pcs; Eaton catalogue number: 171412; Depth: 73 mm; Height: 73 mm; Width: 73 mm; Weight: 0.083 kg.
Technical Specifications
- Manufacturer part number (MPN)
- SL7-FL120-Y
- EAN / GTIN
- 4015081679430
- Sales unit
- pcs
- Eaton catalogue number
- 171412
- Depth
- 73 mm
- Height
- 73 mm
- Width
- 73 mm
- Weight
- 0.083 kg
- Compliances
- CE Marked
- Catalog Notes
- 0
- Ambient operating temperature - max
- 60 °C
- Ambient operating temperature - min
- -30 °C
- Climatic proofing
- Damp heat, constant, to IEC 60068-2-78; Damp heat, cyclic, to IEC 60068-2-30
- Leakage current
- 0.003 A
- Rated insulation voltage (Ui)
- 250 V
- Rated operational voltage (Ue) at AC - max
- 120 V
- Rated operational voltage (Ue) at AC - min
- 110 V
- Color
- Yellow
- Enclosure color
- Black
- Functions
- Flash light
- Light modules
- LED
- Number of modules
- Max. 5 (with standard base); Max. 10 (with base for mounting on both sides)
- Connection to SmartWire-DT
- No
- Current consumption
- 24 mA at 110/120 V AC
- Degree of protection
- NEMA 4X; IP66
- Flashing frequency
- 1.4 Hz
- Frequency rating
- 1.4 Hz
- Lifespan, electrical
- 100,000 h
- Light type
- Strobe light
- Material
- Enclosure: Polycarbonate (PC); Cap: Polycarbonate (PC)
- Mounting position
- As required
- Overvoltage category
- III
- Pollution degree
- 3
- Product Category
- SL signal towers
- Radiation angle
- 360 °
- Rated impulse withstand voltage (Uimp)
- 4000 V AC
- Shock resistance
- 15 g, Mechanical, According to IEC/EN 60068-2-27, Sinusoidal shock 11 ms; Mechanical, According to IEC/EN 60068-2-27
- Type
- Strobe light module
- Voltage type
- AC
- Colour
- Yellow
- Outer diameter
- 73 mm
- Housing colour
- Black
- Lamp type
- LED
- Operating voltage AC 50 Hz
- 110–120 V
- Operating voltage AC 60 Hz
- 110–120 V
- Repetition frequency settable
- No
- Country of origin
- Austria
Standards & Compliance
- HS Code
- 8531.80
Cross References
- EAN 4015081679430
- SAP 1000492284
