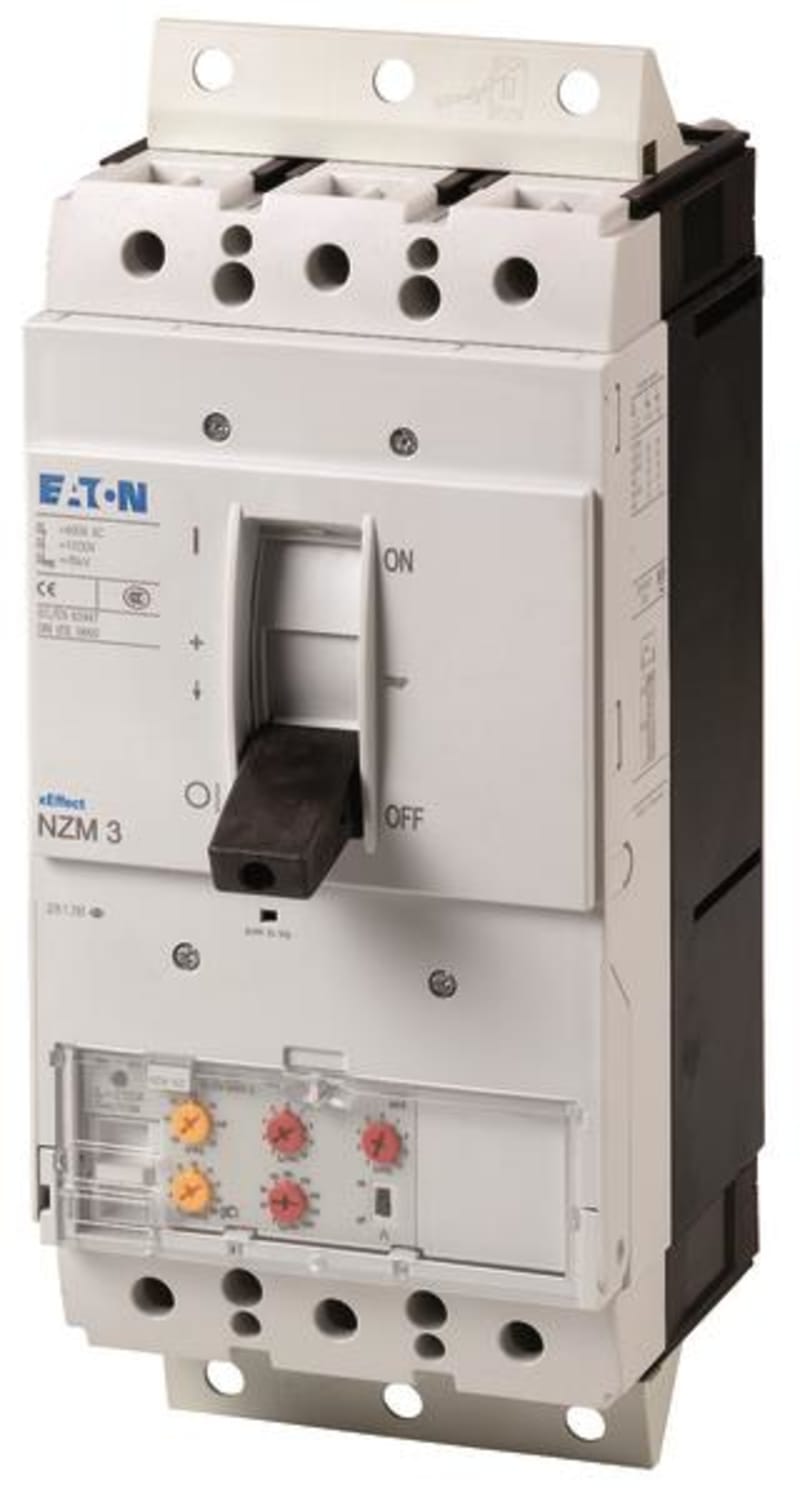

Eaton Pluggable circuit breaker 630A/3P
Part numberNZMS3-VE630-SVEEAN / GTIN4015081650040HS code8536.90
Electrical Components
Moulded Case Circuit Breakers
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Eaton NZMS3-VE630-SVE Pluggable circuit breaker 630A/3p.
Technical Specifications
- Manufacturer part number (MPN)
- NZMS3-VE630-SVE
- EAN / GTIN
- 4015081650040
- HS code
- 8536.90
- Sales unit
- pcs
- Eaton catalogue number
- 168527
- Depth
- 335 mm
- Height
- 215.2 mm
- Width
- 140 mm
- Weight
- 7.72 kg
- Compliances
- RoHS conform
- Amperage Rating
- 630 A
- Features
- Motor drive optional; Protection unit
- Number of poles
- Three-pole
- Equipment heat dissipation, current-dependent
- 119.07 W
- Electrical connection type of main circuit
- Screw connection
- Handle type
- Rocker lever
- Instantaneous current setting (Ii) - max
- 7560 A
- Instantaneous current setting (Ii) - min
- 1260 A
- Overload current setting (Ir) - max
- 630 A
- Overload current setting (Ir) - min
- 315 A
- Short delay current setting (Isd) - max
- 6300 A
- Short delay current setting (Isd) - min
- 630 A
- Voltage rating
- 690 V - 690 V
- Degree of protection
- IP20
- Mounting Method
- Built-in device plug-in technique
- Number of auxiliary contacts (change-over contacts)
- 0
- Number of auxiliary contacts (normally closed contacts)
- 0
- Number of auxiliary contacts (normally open contacts)
- 0
- Position of connection for main current circuit
- Back side
- Document Name
- Description Action
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4015081650040
- SAP 1200601043
- Code 82989511
Product Documentation
Document preview: Eaton Pluggable circuit breaker 630A/3p — Specification Data Sheet (OEM)
More from Eaton
Eaton
Eaton NZML2-VE160 Molded-Case Circuit Breaker 3-Pole 160A 150KA
Eaton
Contactor DILM9-01(220V50/60HZ)-PI
Eaton
Auxiliary contact,DILA-XHI10-S-PI
Eaton
Eaton IZMX16H4-V12W-1
Eaton
Cover for LeakageStop Water Sensor (CWGZ-CB/09)
Eaton
Front plate PSL xE Light (XLMFAVW6)
Eaton
Auxiliary contactor DILM32-XHI31-PI
Eaton

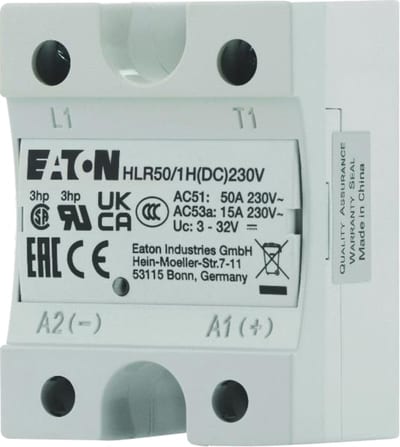

Solid-State Relay, Hockey Puck, 50A, 230V
