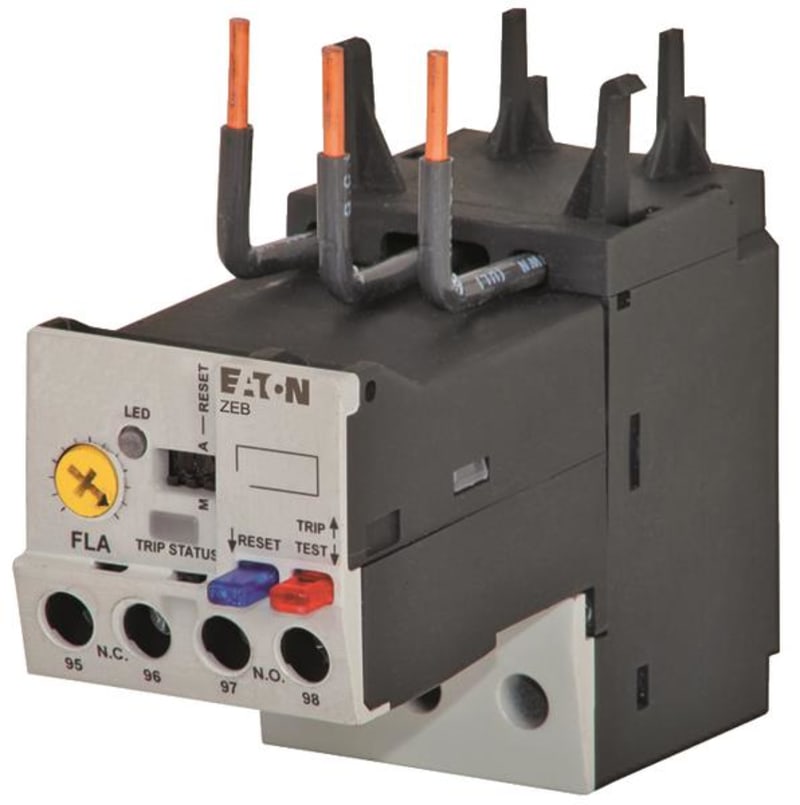

Eaton ZEB Electronic Overload Relay 0.33–1.65 A, Earth Fault Protection (ZEB32-1,65-GF)

Eaton ZEB Electronic Overload Relay 0.33–1.65 A, Earth Fault Protection (ZEB32-1,65-GF) is listed under Switchgear & Protection / Overload Relays. HS code: 8536.30.

Manufacturer part number (MPN)

ZEB32-1,65-GF EAN / GTIN: 4015081332700 Sales unit: pcs Eaton catalogue number: 136490 Depth: 108 mm Height: 110 mm Width: 45 mm Weight: 0.24 kg Certifications: UL 508; CSA Class No.: 3211-03; UL Category Control No.: NKCR; UL File No.: E1230; CSA File No.: 2290956; IEC/EN 60947-4-1; UL; IEC/EN 60947; CSA-C22.2 No. 14; VDE 0660; CE; CSA Catalog Notes: Rated operational current: Switch-on and switch-off conditions based on DC-13, time constant as specified. Ambient operating temperature - max: 65 °C Ambient operating temperature - min: -25 °C Ambient operating temperature (enclosed) - max: 65 °C Climatic proofing: Damp heat, constant, to IEC 60068-2-78; Damp heat, cyclic, to IEC 60068-2-30 Number of auxiliary contacts (change-over contacts): 0 Number of auxiliary contacts (normally closed contacts): 1 Number of auxiliary contacts (normally open contacts): 1 Number of contacts (normally closed contacts): 1 Number of contacts (normally open contacts): 1 Equipment heat dissipation, current-dependent Pvid: 0.5 W Heat dissipation per pole, current-dependent Pvid: 0.17 W Rated operational current for specified heat dissipation (In): 1.65 A Conventional thermal current Ith of auxiliary contacts (1-pole, open): 5 A Rated frequency - max: 60 Hz Rated frequency - min: 50 Hz Rated operational current (Ie) at AC-15, 120 V: 1.5 A Rated operational current (Ie) at AC-15, 220 V, 230 V, 240 V: 1.5 A Rated operational current (Ie) at AC-15, 380 V, 400 V, 415 V: 0.9 A Rated operational current (Ie) at DC-13, 110 V: 0.4 A Rated operational current (Ie) at DC-13, 220 V, 230 V: 0.2 A Rated operational current (Ie) at DC-13, 24 V: 0.9 A Rated operational current (Ie) at DC-13, 60 V: 0.75 A Rated operational voltage (Ue) at AC - max: 690 V Safe isolation: 440 V, Between auxiliary contacts and main contacts, According to EN 61140; 240 V AC, Between auxiliary contacts, According to EN 61140; 600 V AC, Between main circuits, According to EN 61140 Short-circuit current rating (basic rating): 6 A RK5, max. Fuse, SCCR (UL/CSA); 1 kA, SCCR (UL/CSA) Short-circuit protection rating: Max. 6 A gG/gL, fuse, Without welding, Auxiliary and control circuits Switching capacity (auxiliary contacts, pilot duty): R300, DC operated (UL/CSA); B600, AC operated (UL/CSA) Voltage rating - max: 600 V Earth fault protection: Trip at approx. > 0.5 x Ir in 2 s; Yes; Trip at approx. > 1.5 x Ir in 1 s Features: Phase-failure sensitivity (according to IEC/EN 60947, VDE 0660 Part 102) Functions: Filament bulb (24 V) Class: Adjustable Degree of protection: IP20 Mounting method: Direct attachment; Direct mounting Overload release current setting - max: 1.65 A Overload release current setting - min: 0.33 A Overvoltage category: III Pollution degree: 3 Product Category: Electronic overload relays ZEB Protection: Finger and back-of-hand proof, Protection against direct contact when actuated from front (EN 50274) Rated impulse withstand voltage (Uimp): 6000 V (auxiliary circuits); 6000 V AC Shock resistance: Mechanical, According to IEC/EN 60068-2-27; 15 g, Mechanical, According to IEC/EN 60068-2-27, Shock duration 10 ms Suitable for: Branch circuits, (UL/CSA) Voltage type: Self powered; AC Screw size: M3.5, Terminal screw, Control circuit cables Screwdriver size: 1 x 6 mm, Terminal screw, Standard screwdriver; 2, Terminal screw, Pozidriv screwdriver Stripping length (control circuit cable): 8 mm Stripping length (main cable): 13 mm Terminal capacity (flexible with ferrule): 2 x (0.75 - 2.5) mm², Control circuit cables Terminal capacity (solid): 1 x (1.5 - 16) mm², Main cables; 2 x (0.75 - 4) mm², Control circuit cables Terminal capacity (solid/stranded AWG): 2 x (18 - 12), Control circuit cables; 1 x (14 - 4), Main cables Tightening torque: 0.8 - 1.2 Nm, Screw terminals, Control circuit cables; 7 lb-in, Screw terminals Number of auxiliary contacts as normally open contact: 1 Number of auxiliary contacts as normally closed contact: 1 External power supply required: No Release class: Adjustable Type of electrical connection of main circuit: Screw connection Operating voltage AC 50 Hz: 230–690 V Operating voltage AC 60 Hz: 230–690 V Adjustable current range: 0.33–1.65 A Voltage type for actuating: AC Reset function input: No Reset function automatic: Yes Reset function push-button: Yes

HS Code

8536.30

• EAN 4015081332700
• SAP 1200607293
• Code 82994589
