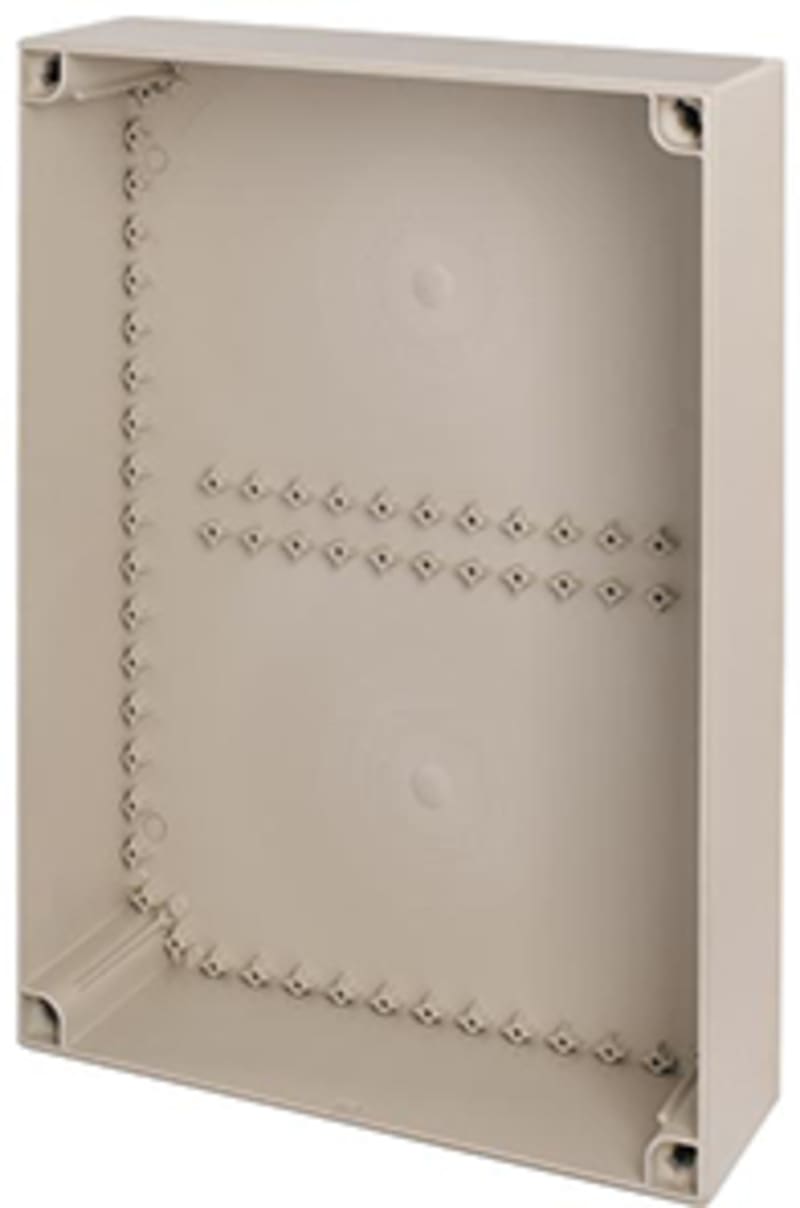

Plinth sides H×W×D=500X375X120
Pricing
Request a quote
We reply within 24 hours
Overview
Eaton Plinth sides H×W×D=500X375X120 (part number U-CI45X) is listed under Enclosures / Industrial Enclosures. Sales unit: pcs; Eaton catalogue number: 098470; Depth: 120 mm; Height: 500 mm; Width: 375 mm; Weight: 5.1 kg.
Technical Specifications
- Manufacturer part number (MPN)
- U-CI45X
- EAN / GTIN
- 4015080984702
- Sales unit
- pcs
- Eaton catalogue number
- 098470
- Depth
- 120 mm
- Height
- 500 mm
- Width
- 375 mm
- Weight
- 5.1 kg
- Compliances
- RoHS conform
- Certifications
- EN 60947-3; CSA Std. C22.2 No. 14-05; UL 508; IEC 60947; VDE; EN 61439-2; EN 62208
- Special features
- Flanges ￫#024355 Distance frame for CI45... ￫#110103 Smooth sides without knockouts
- Type
- Basic enclosure Enclosure bases xEnergy Safety Ci
- Features
- Cover with overpressure release
- Accessory/spare part type
- Individual enclosure bottoms
- Degree of protection
- IK10; Other; IP65
- Enclosure material
- Plastic
- Surface protection
- Other
- Circuit integrity
- Other
- Base type
- Plain
- Unit type
- Modular system
- Built-in depth
- 200 mm
- Color
- Gray
- Cover/door model
- Closed
- Cover/door type
- Optional; None
- Number of openings (flange plates)
- 0
- Plate thickness (cabinet)
- 9 mm
- Plate thickness (cover/door)
- 6 mm
- RAL-number
- 7035
- Width in number of modular spacings
- 17
- Cable entry type
- Top and bottom; Drill as required; Transverse
- Mounting method
- Surface mounted (plaster)
- Number of rows
- 0
- Protection class
- II
- Number of modules
- 1
- Internal depth
- 100 mm
- Nominal current
- 1600 A
- Number of conduit inlets
- 0
- Suitable for
- Lightning protection; Outdoor use
- Enclosure material quality
- Other
- Type of coating
- Other
- Dimensions
- 500×375×120
- Colour
- Grey
- With mounting plate
- No
- Impact strength
- IK10
- Country of origin
- Finland
Standards & Compliance
- HS Code
- 8538.10
Cross References
- EAN 4015080984702
- SAP 1000788314
- Code 81399276
Product Documentation
