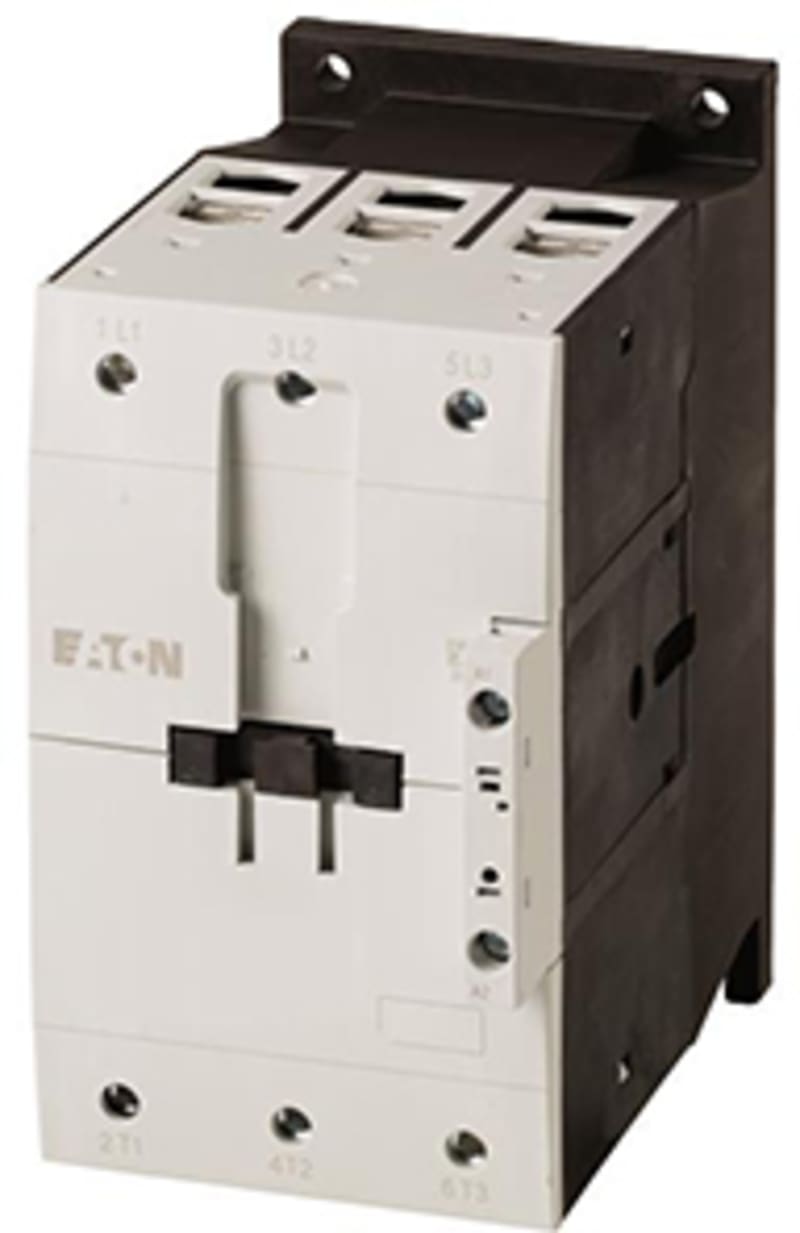

Contactor 150A 24-27V DC (DILM150(RDC24))

Eaton DILM150(RDC24) Contactor 3-pole, 24 VDC.

Manufacturer part number (MPN)

DILM150(RDC24)

EAN / GTIN

4015082395919

HS code

8536.90

Sales unit

pcs

Eaton catalogue number

239591

Depth

160 mm

Height

170 mm

Width

90 mm

Weight

2.25 kg

Certifications

CE; CSA; CSA File No.: 012528; VDE 0660; UL File No.: E29096; IEC/EN 60947-4-1; CSA-C22.2 No. 60947-4-1-14; UL; UL 60947-4-1; UL Category Control No.: NLDX; IEC/EN 60947; CSA Class No.: 2411-03, 3211-04

Catalog Notes

Contacts according to EN 50012

Altitude

Max. 2000 m

Ambient operating temperature - max

60 °C

Ambient storage temperature - max

80 °C

Ambient operating temperature - min

-25 °C

Ambient operating temperature (enclosed) - max

40 °C

Ambient operating temperature (enclosed) - min

-25 °C

Ambient storage temperature - min

-40 °C

Climatic proofing

Damp heat, cyclic, to IEC 60068-2-30; Damp heat, constant, to IEC 60068-2-78

Connection to SmartWire-DT

No

Number of main contacts (normally open contact)

3

Number of auxiliary contacts (normally closed contacts)

0

Number of auxiliary contacts (normally open contacts)

0

Number of contacts (normally closed) as main contact

0

Conventional thermal current Ith (1-pole, enclosed)

360 A

Conventional thermal current Ith (3-pole, enclosed)

144 A

Conventional thermal current Ith at 55°C (3-pole, open)

170 A

Conventional thermal current Ith at 60°C (3-pole, open)

160 A

Conventional thermal current Ith of main contacts (1-pole, open)

400 A

Equipment heat dissipation, current-dependent Pvid

32.1 W

Heat dissipation capacity Pdiss

0 W

Heat dissipation per pole, current-dependent Pvid

10.7 W

Rated operational current for specified heat dissipation (In)

150 A

Static heat dissipation, non-current-dependent Pvs

1.9 W

Rated breaking capacity at 220/230 V

1500 A

Rated breaking capacity at 380/400 V

1500 A

Rated breaking capacity at 500 V

1500 A

Rated breaking capacity at 660/690 V

1200 A

Rated insulation voltage (Ui)

690 V

Rated making capacity up to 690 V (cos phi to IEC/EN 60947)

2100 A

Rated operational current (Ie) at AC-1, 380 V, 400 V, 415 V

190 A

Rated operational current (Ie) at AC-3, 220 V, 230 V, 240 V

150 A

Rated operational current (Ie) at AC-3, 380 V, 400 V, 415 V

150 A

Rated operational current (Ie) at AC-3, 440 V

150 A

Rated operational current (Ie) at AC-3, 500 V

150 A

Rated operational current (Ie) at AC-3, 660 V, 690 V

100 A

Rated operational current (Ie) at AC-4, 220 V, 230 V, 240 V

65 A

Rated operational current (Ie) at AC-4, 440 V

65 A

Rated operational current (Ie) at AC-4, 500 V

65 A

Rated operational current (Ie) at AC-4, 660 V, 690 V

50 A

Rated operational current (Ie) at DC-1, 110 V

160 A

Rated operational current (Ie) at DC-1, 220 V

90 A

Rated operational current (Ie) at DC-1, 60 V

160 A

Rated operational power at AC-3, 240 V, 50 Hz

52 kW

Rated operational power at AC-3, 380/400 V, 50 Hz

75 kW

Rated operational power at AC-3, 415 V, 50 Hz

91 kW

Rated operational power at AC-3, 440 V, 50 Hz

95 kW

Rated operational power at AC-3, 500 V, 50 Hz

110 kW

Rated operational power at AC-3, 690 V, 50 Hz

96 kW

Rated operational power at AC-4, 220/230 V, 50 Hz

20 kW

Rated operational power at AC-4, 240 V, 50 Hz

22 kW

Rated operational power at AC-4, 415 V, 50 Hz

39 kW

Rated operational power at AC-4, 440 V, 50 Hz

41 kW

Rated operational power at AC-4, 500 V, 50 Hz

47 kW

Rated operational power at AC-4, 660/690 V, 50 Hz

48 kW

Rated operational voltage (Ue) at AC - max

690 V

Emitted interference

According to EN 60947-1

Interference immunity

According to EN 60947-1

Fitted with

Suppressor circuit in actuating electronics

Number of poles

Three-pole

Application

Contactors for Motors

Connection

Screw terminals

Degree of protection

IP00

Lifespan, mechanical

10,000,000 Operations (DC operated)

Operating frequency

3600 mechanical Operations/h (DC operated)

Overvoltage category

III

Pollution degree

3

Product category

Contactors

Protection

Finger and back-of-hand proof, Protection against direct contact when actuated from front (EN 50274)

Rated impulse withstand voltage (Uimp)

8000 V AC

Residual current

1 mA (with actuation of A1 - A2 by the electronics with "0" signal)

Resistance per pole

0.6 mΩ

Suitable for

Also motors with efficiency class IE3

Utilization category

AC-1: Non-inductive or slightly inductive loads, resistance furnaces; AC-4: Normal AC induction motors: starting, plugging, reversing, inching; AC-3: Normal AC induction motors: starting, switch off during running

Voltage type

DC

Frame size

FS4

Arcing time

15 ms

Drop-out voltage

0.6 - 0.15 x UC, DC operated; At least smoothed two-phase bridge rectifier or three-phase rectifier

Duty factor

100 %

Pick-up voltage

0.7 - 1.2 V DC x Uc; 24 - 27 V DC (RDC 24)

Power consumption (pick-up) at DC

149 W

Power consumption (sealing) at DC

1.9 W

Rated control supply voltage (Us) at DC - max

27 V

Rated control supply voltage (Us) at DC - min

24 V

Switching time (DC operated, make contacts, closing delay) - max

35 ms

Switching time (DC operated, make contacts, opening delay) - max

30 ms

Assigned motor power at 115/120 V, 60 Hz, 1-phase

10 HP

Assigned motor power at 200/208 V, 60 Hz, 3-phase

50 HP

Assigned motor power at 230/240 V, 60 Hz, 1-phase

30 HP

Assigned motor power at 230/240 V, 60 Hz, 3-phase

60 HP

Assigned motor power at 460/480 V, 60 Hz, 3-phase

125 HP

Assigned motor power at 575/600 V, 60 Hz, 3-phase

125 HP

Safe isolation

690 V AC, Between the contacts, According to EN 61140; 440 V AC, Between coil and contacts, According to EN 61140

Short-circuit current rating (basic rating)

10 kA, 600 A max. fuse, SCCR (UL/CSA); 10 kA, 600 A max. CB, SCCR (UL/CSA)

Short-circuit current rating (high fault at 480 V)

100 kA, 600 A CLASS J max. fuse, SCCR (UL/CSA)

Short-circuit current rating (high fault at 600 V)

100 kA, 600 A CLASS J max. fuse, SCCR (UL/CSA)

Short-circuit protection rating (type 1 coordination) at 400 V

250 A gG/gL

Short-circuit protection rating (type 1 coordination) at 690 V

250 A gG/gL

Short-circuit protection rating (type 2 coordination) at 400 V

250 A gG/gL

Short-circuit protection rating (type 2 coordination) at 690 V

250 A gG/gL

Special purpose rating of definite purpose rating

900 A, LRA 480 V 60 Hz 3-ph, 100,000 cycles acc. to UL 1995, (UL/CSA); 150 A, FLA 480 V 60 Hz 3-ph, 100,000 cycles acc. to UL 1995, (UL/CSA)

Special purpose rating of elevator control

75 HP, 480 V 60 Hz 3-ph, (UL/CSA); 100 HP, 600 V 60 Hz 3-ph, (UL/CSA); 92 A, 200 V 60 Hz 3-ph, (UL/CSA); 104 A, 240 V 60 Hz 3-ph, (UL/CSA); 96 A, 480 V 60 Hz 3-ph, (UL/CSA); 40 HP, 240 V 60 Hz 3-ph, (UL/CSA); 99 A, 600 V 60 Hz 3-ph, (UL/CSA); 30 HP, 200 V 60 Hz 3-ph, (UL/CSA)

Special purpose rating of refrigeration control (CSA only)

90 A, FLA 600 V 60 Hz 3phase; (CSA); 540 A, LRA 600 V 60 Hz 3phase; (CSA); 90 A, FLA 480 V 60 Hz 3phase; (CSA); 540 A, LRA 480 V 60 Hz 3phase; (CSA)

Special purpose rating of resistance air heating

160 A, 480 V 60 Hz 3phase, 277 V 60 Hz 1phase, (UL/CSA); 160 A, 600 V 60 Hz 3phase, 347 V 60 Hz 1phase, (UL/CSA)

Special purpose rating of tungsten incandescent lamps

160 A, 600 V 60 Hz 3phase, 347 V 60 Hz 1phase, (UL/CSA); 160 A, 480 V 60 Hz 3phase, 277 V 60 Hz 1phase, (UL/CSA)

Special purpose rating of ballast electrical discharge lamps

160 A (480V 60Hz 3phase, 277V 60Hz 1phase); 160 A (600V 60Hz 3phase, 347V 60Hz 1phase)

Switching capacity (main contacts, general use)

225 A, Maximum motor rating (UL/CSA)

Screw size

M10, Terminal screw, Main cables; 5 mm AF, Hexagon socket-head spanner, Terminal screw, Main cables; M3.5, Terminal screw, Control circuit cables

Screwdriver size

0.8 x 5.5/1 x 6 mm, Terminal screw, Control circuit cables, Standard screwdriver; 2, Terminal screw, Control circuit cables, Pozidriv screwdriver

Stripping length (control circuit cable)

10 mm

HS Code

8536.90

• EAN 4015082395919
• SAP 1000058290
• Code 8907070
