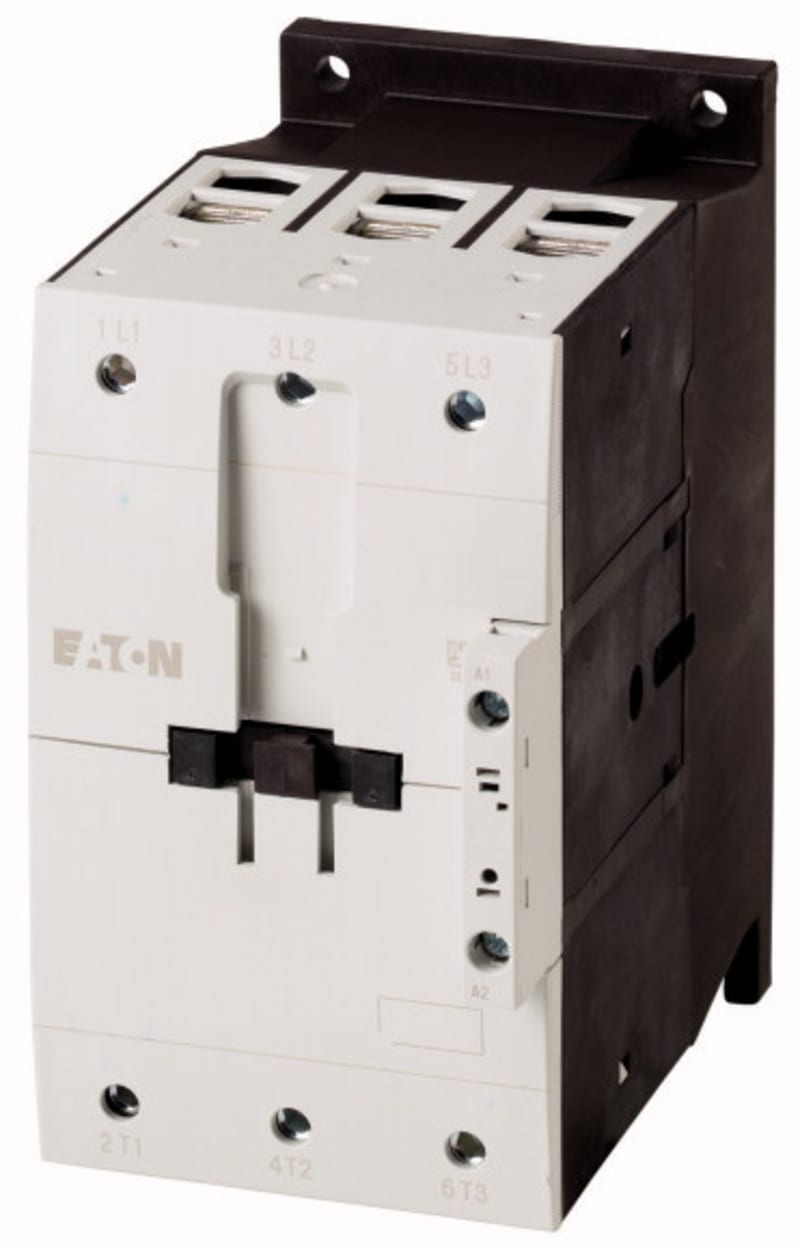

Contactor 115A 240V AC (DILM115(RAC240))

Eaton DILM115(RAC240) Contactor 3-pole, 230-240 VAC.

Manufacturer part number (MPN)

DILM115(RAC240)

EAN / GTIN

4015082395483

HS code

8536.90

Sales unit

pcs

Eaton catalogue number

239548

Depth

160 mm

Height

170 mm

Width

90 mm

Weight

2.25 kg

Certifications

CSA Class No.: 2411-03

3211-04; CSA; CSA File No.

012528; VDE 0660; UL; IEC/EN 60947-4-1; UL 60947-4-1; CSA-C22.2 No. 60947-4-1-14; UL File No.: E29096; CE; IEC/EN 60947; UL Category Control No.: NLDX

Catalog Notes

Contacts according to EN 50012

Altitude

Max. 2000 m

Ambient operating temperature - max

60 °C

Ambient storage temperature - max

80 °C

Ambient operating temperature - min

-25 °C

Ambient operating temperature (enclosed) - max

40 °C

Ambient operating temperature (enclosed) - min

-25 °C

Ambient storage temperature - min

-40 °C

Climatic proofing

Damp heat, constant, to IEC 60068-2-78; Damp heat, cyclic, to IEC 60068-2-30

Connection to SmartWire-DT

No

Number of main contacts (normally open contact)

3

Number of auxiliary contacts (normally closed contacts)

0

Number of auxiliary contacts (normally open contacts)

0

Number of contacts (normally closed) as main contact

0

Conventional thermal current Ith (1-pole, enclosed)

285 A

Conventional thermal current Ith (3-pole, enclosed)

115 A

Conventional thermal current Ith at 55°C (3-pole, open)

135 A

Conventional thermal current Ith at 60°C (3-pole, open)

130 A

Conventional thermal current Ith of main contacts (1-pole, open)

325 A

Equipment heat dissipation, current-dependent Pvid

18.9 W

Heat dissipation capacity Pdiss

0 W

Heat dissipation per pole, current-dependent Pvid

6.3 W

Rated operational current for specified heat dissipation (In)

115 A

Static heat dissipation, non-current-dependent Pvs

2.3 W

Rated breaking capacity at 220/230 V

1150 A

Rated breaking capacity at 380/400 V

1150 A

Rated breaking capacity at 500 V

1150 A

Rated breaking capacity at 660/690 V

1100 A

Rated insulation voltage (Ui)

690 V

Rated making capacity up to 690 V (cos phi to IEC/EN 60947)

1610 A

Rated operational current (Ie) at AC-1, 380 V, 400 V

415 V

160 A

Rated operational current (Ie) at AC-3, 220 V, 230 V

240 V

115 A

Rated operational current (Ie) at AC-3, 380 V, 400 V

415 V

115 A

Rated operational current (Ie) at AC-3

440 V

115 A

Rated operational current (Ie) at AC-3

500 V

115 A

Rated operational current (Ie) at AC-3, 660 V

690 V

93 A

Rated operational current (Ie) at AC-4, 220 V, 230 V

240 V

55 A

Rated operational current (Ie) at AC-4

440 V

55 A

Rated operational current (Ie) at AC-4

500 V

55 A

Rated operational current (Ie) at AC-4, 660 V

690 V

45 A

Rated operational current (Ie) at DC-1

110 V

160 A

Rated operational current (Ie) at DC-1

220 V

90 A

Rated operational current (Ie) at DC-1

60 V

160 A

Rated operational power at AC-3, 240 V

50 Hz

40 kW

Rated operational power at AC-3, 380/400 V

50 Hz

55 kW

Rated operational power at AC-3, 415 V

50 Hz

70 kW

Rated operational power at AC-3, 440 V

50 Hz

75 kW

Rated operational power at AC-3, 500 V

50 Hz

85 kW

Rated operational power at AC-3, 690 V

50 Hz

90 kW

Rated operational power at AC-4, 220/230 V

50 Hz

17 kW

Rated operational power at AC-4, 240 V

50 Hz

19 kW

Rated operational power at AC-4, 415 V

50 Hz

33 kW

Rated operational power at AC-4, 440 V

50 Hz

35 kW

Rated operational power at AC-4, 500 V

Rated operational power at AC-4, 660/690 V

50 Hz

43 kW

Rated operational voltage (Ue) at AC - max

690 V

Emitted interference

According to EN 60947-1

Interference immunity

According to EN 60947-1

Fitted with

Suppressor circuit in actuating electronics

Number of poles

Three-pole

Application

Contactors for Motors

Connection

Screw terminals

Degree of protection

IP00

Lifespan, mechanical

10,000,000 Operations (AC operated)

Operating frequency

3600 mechanical Operations/h (AC operated)

Overvoltage category

III

Pollution degree

3

Product category

Contactors

Protection

Finger and back-of-hand proof, Protection against direct contact when actuated from front (EN 50274)

Rated impulse withstand voltage (Uimp)

8000 V AC

Residual current

1 mA (with actuation of A1 - A2 by the electronics with "0" signal)

Resistance per pole

0.6 mΩ

Suitable for

Also motors with efficiency class IE3

Utilization category

AC-3: Normal AC induction motors: starting, switch off during running; AC-1: Non-inductive or slightly inductive loads, resistance furnaces; AC-4: Normal AC induction motors: starting, plugging, reversing, inching

Voltage type

AC

Frame size

FS4

Arcing time

15 ms

Drop-out voltage

AC operated: 0.6 - 0.25 x UC, AC operated

Duty factor

100 %

Pick-up voltage

0.8 - 1.15 V AC x Uc

Power consumption, pick-up

50 Hz

180 VA, Dual-frequency coil in a cold state and 1.0 x Us, at 50 Hz

Power consumption, pick-up

60 Hz

170 VA, Dual-frequency coil in a cold state and 1.0 x Us, at 60 Hz

Power consumption, sealing

HS Code

8536.90

• EAN 4015082395483
• SAP 1000087657
• Code 8873581
