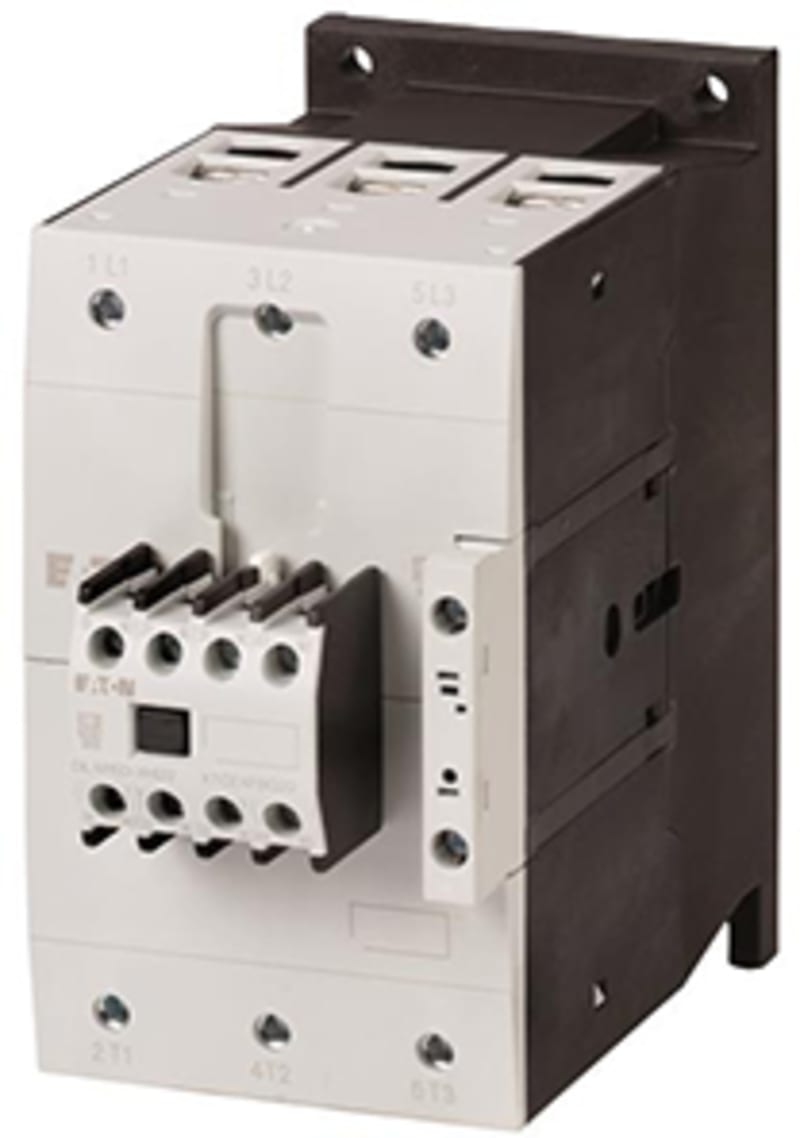

Contactor DILM115-22(RAC240)

Eaton DILM115-22(RAC240) Contactor, 400V 55 kW, 2 N/O, 2 NC, RAC 240: 190 - 240 V 50/60 Hz,.

Manufacturer part number (MPN)

DILM115-22(RAC240)

EAN / GTIN

4015082395780

HS code

8536.90

Sales unit

pcs

Eaton catalogue number

239578

Depth

175 mm

Height

170 mm

Width

90 mm

Weight

2.31 kg

Certifications

CSA File No.: 012528; IEC/EN 60947; CSA-C22.2 No. 60947-4-1-14; IEC/EN 60947-4-1; UL Category Control No.: NLDX; CSA; CE; VDE 0660; UL 60947-4-1; UL File No.: E29096; UL; CSA Class No.: 2411-03, 3211-04

Catalog Notes

Contacts according to EN 50012

Altitude

Max. 2000 m

Ambient operating temperature - max

60 °C

Ambient storage temperature - max

80 °C

Ambient operating temperature - min

-25 °C

Ambient operating temperature (enclosed) - max

40 °C

Ambient operating temperature (enclosed) - min

-25 °C

Ambient storage temperature - min

-40 °C

Climatic proofing

Damp heat, constant, to IEC 60068-2-78; Damp heat, cyclic, to IEC 60068-2-30

Number of main contacts (normally open contact)

3

Number of auxiliary contacts (normally closed contacts)

2

Number of auxiliary contacts (normally open contacts)

2

Number of contacts (normally closed contacts)

2

Number of contacts (normally open contacts)

2

Number of contacts (normally closed) as main contact

0

Conventional thermal current Ith (1-pole, enclosed)

285 A

Conventional thermal current Ith (3-pole, enclosed)

115 A

Conventional thermal current Ith at 55°C (3-pole, open)

135 A

Conventional thermal current Ith at 60°C (3-pole, open)

130 A

Conventional thermal current Ith of main contacts (1-pole, open)

325 A

Equipment heat dissipation, current-dependent Pvid

18.9 W

Heat dissipation capacity Pdiss

0 W

Heat dissipation per pole, current-dependent Pvid

6.3 W

Rated operational current for specified heat dissipation (In)

115 A

Static heat dissipation, non-current-dependent Pvs

2.3 W

Rated breaking capacity at 220/230 V

1150 A

Rated breaking capacity at 380/400 V

1150 A

Rated breaking capacity at 500 V

1150 A

Rated breaking capacity at 660/690 V

1100 A

Rated insulation voltage (Ui)

690 V

Rated making capacity up to 690 V (cos phi to IEC/EN 60947)

1610 A

Rated operational current (Ie) at AC-1, 380 V, 400 V, 415 V

160 A

Rated operational current (Ie) at AC-3, 220 V, 230 V, 240 V

115 A

Rated operational current (Ie) at AC-3, 380 V, 400 V, 415 V

115 A

Rated operational current (Ie) at AC-3, 440 V

115 A

Rated operational current (Ie) at AC-3, 500 V

115 A

Rated operational current (Ie) at AC-3, 660 V, 690 V

93 A

Rated operational current (Ie) at AC-4, 220 V, 230 V, 240 V

55 A

Rated operational current (Ie) at AC-4, 440 V

55 A

Rated operational current (Ie) at AC-4, 500 V

55 A

Rated operational current (Ie) at AC-4, 660 V, 690 V

45 A

Rated operational current (Ie) at DC-1, 110 V

160 A

Rated operational current (Ie) at DC-1, 220 V

90 A

Rated operational current (Ie) at DC-1, 60 V

160 A

Rated operational power at AC-3, 240 V, 50 Hz

40 kW

Rated operational power at AC-3, 380/400 V, 50 Hz

55 kW

Rated operational power at AC-3, 415 V, 50 Hz

70 kW

Rated operational power at AC-3, 440 V, 50 Hz

75 kW

Rated operational power at AC-3, 500 V, 50 Hz

85 kW

Rated operational power at AC-3, 690 V, 50 Hz

90 kW

Rated operational power at AC-4, 220/230 V, 50 Hz

17 kW

Rated operational power at AC-4, 240 V, 50 Hz

19 kW

Rated operational power at AC-4, 415 V, 50 Hz

33 kW

Rated operational power at AC-4, 440 V, 50 Hz

35 kW

Rated operational power at AC-4, 500 V, 50 Hz

40 kW

Rated operational power at AC-4, 660/690 V, 50 Hz

43 kW

Rated operational voltage (Ue) at AC - max

690 V

Emitted interference

According to EN 60947-1

Interference immunity

According to EN 60947-1

Fitted with

Mirror contact; Suppressor circuit in actuating electronics

Number of poles

Three-pole

Application

Contactors for Motors

Connection

Screw terminals

Degree of protection

IP00

Lifespan, mechanical

10,000,000 Operations (AC operated); 7,000,000 Operations (Coil 50/60 Hz)

Operating frequency

3600 mechanical Operations/h (AC operated)

Overvoltage category

III

Pollution degree

3

Product category

Contactors

Protection

Finger and back-of-hand proof, Protection against direct contact when actuated from front (EN 50274)

Rated impulse withstand voltage (Uimp)

8000 V AC

Residual current

1 mA (with actuation of A1 - A2 by the electronics with "0" signal)

Resistance per pole

0.6 mΩ

Suitable for

Also motors with efficiency class IE3

Utilization category

AC-1: Non-inductive or slightly inductive loads, resistance furnaces; AC-3: Normal AC induction motors: starting, switch off during running; AC-4: Normal AC induction motors: starting, plugging, reversing, inching

Voltage type

AC

Arcing time

15 ms

Drop-out voltage

AC operated: 0.6 - 0.25 x UC, AC operated

Duty factor

100 %

Pick-up voltage

0.8 - 1.15 V AC x Uc

Power consumption, pick-up, 50 Hz

180 VA, Dual-frequency coil in a cold state and 1.0 x Us, at 50 Hz

Power consumption, pick-up, 60 Hz

170 VA, Dual-frequency coil in a cold state and 1.0 x Us, at 60 Hz

Power consumption, sealing, 50 Hz

3.1 VA, Dual-frequency coil in a cold state and 1.0 x Us, at 50 Hz; 2.3 W, Dual-frequency coil in a cold state and 1.0 x Us, at 50 Hz

Power consumption, sealing, 60 Hz

2.3 W, Dual-frequency coil in a cold state and 1.0 x Us, at 60 Hz; 3.1 VA, Dual-frequency coil in a cold state and 1.0 x Us, at 60 Hz

Rated control supply voltage (Us) at AC, 50 Hz - max

240 V

Rated control supply voltage (Us) at AC, 50 Hz - min

190 V

Rated control supply voltage (Us) at AC, 60 Hz - max

240 V

Rated control supply voltage (Us) at AC, 60 Hz - min

190 V

Switching time (AC operated, make contacts, closing delay) - max

33 ms

Switching time (AC operated, make contacts, closing delay) - min

28 ms

Switching time (AC operated, make contacts, opening delay) - max

41 ms

Switching time (AC operated, make contacts, opening delay) - min

35 ms

Assigned motor power at 115/120 V, 60 Hz, 1-phase

10 HP

Assigned motor power at 200/208 V, 60 Hz, 3-phase

40 HP

Assigned motor power at 230/240 V, 60 Hz, 1-phase

25 HP

Assigned motor power at 230/240 V, 60 Hz, 3-phase

50 HP

Assigned motor power at 460/480 V, 60 Hz, 3-phase

100 HP

Assigned motor power at 575/600 V, 60 Hz, 3-phase

100 HP

Safe isolation

690 V AC, Between the contacts, According to EN 61140; 440 V AC, Between coil and contacts, According to EN 61140

Short-circuit current rating (basic rating)

10 kA, 600 A max. fuse, SCCR (UL/CSA); 10 kA, 600 A max. CB, SCCR (UL/CSA)

Short-circuit current rating (high fault at 480 V)

100 kA, 300 A CLASS J max. fuse, SCCR (UL/CSA); 30 kA, 600 A max. fuse, SCCR (UL/CSA); 65 kA, 250 A max. CB, SCCR (UL/CSA)

Short-circuit current rating (high fault at 600 V)

100 kA, 300 A CLASS J max. fuse, SCCR (UL/CSA); 30 kA, 600 A max. fuse, SCCR (UL/CSA)

Short-circuit protection rating (type 1 coordination) at 400 V

250 A gG/gL

Short-circuit protection rating (type 1 coordination) at 690 V

250 A gG/gL

Short-circuit protection rating (type 2 coordination) at 400 V

250 A gG/gL

Short-circuit protection rating (type 2 coordination) at 690 V

250 A gG/gL

Special purpose rating of definite purpose rating

690 A, LRA 480 V 60 Hz 3-ph, 100,000 cycles acc. to UL 1995, (UL/CSA); 115 A, FLA 480 V 60 Hz 3-ph, 100,000 cycles acc. to UL 1995, (UL/CSA)

Special purpose rating of elevator control

92 A, 200 V 60 Hz 3-ph, (UL/CSA); 40 HP, 240 V 60 Hz 3-ph, (UL/CSA); 30 HP, 200 V 60 Hz 3-ph, (UL/CSA); 99 A, 600 V 60 Hz 3-ph, (UL/CSA); 104 A, 240 V 60 Hz 3-ph, (UL/CSA); 75 HP, 480 V 60 Hz 3-ph, (UL/CSA); 96 A, 480 V 60 Hz 3-ph, (UL/CSA); 100 HP, 600 V 60 Hz 3-ph, (UL/CSA)

Special purpose rating of refrigeration control (CSA only)

540 A, LRA 600 V 60 Hz 3phase; (CSA); 84 A, FLA 600 V 60 Hz 3phase; (CSA); 84 A, FLA 480 V 60 Hz 3phase; (CSA); 540 A, LRA 480 V 60 Hz 3phase; (CSA)

Special purpose rating of resistance air heating

160 A, 600 V 60 Hz 3phase, 347 V 60 Hz 1phase, (UL/CSA); 160 A, 480 V 60 Hz 3phase, 277 V 60 Hz 1phase, (UL/CSA)

HS Code

8536.90
