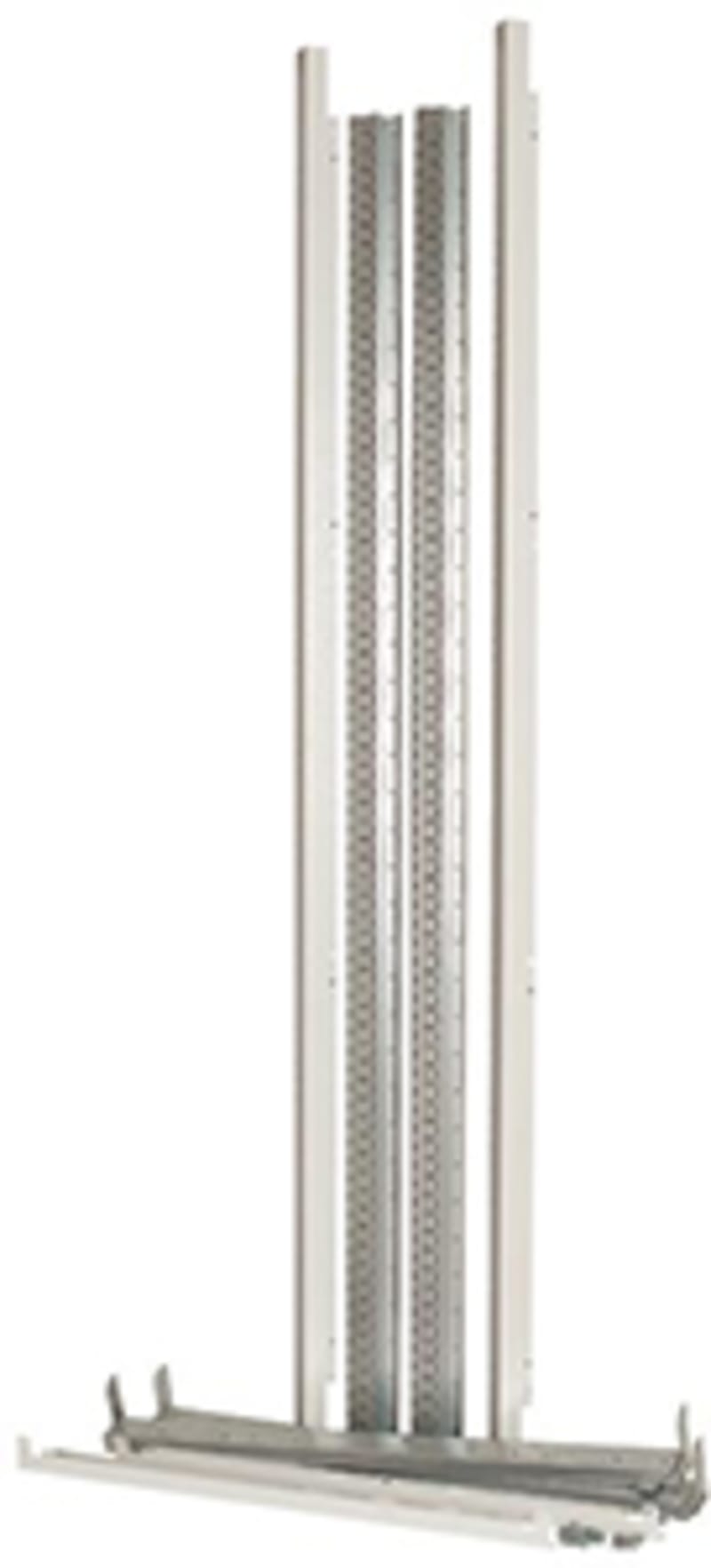

Frame B=850mm, H=1800mm
Pricing
Request a quote
We reply within 24 hours
Overview
Eaton Frame B=850mm, H=1800mm (part number XVTL-BP-F-85/18) is listed under Enclosures / Industrial Enclosures. Sales unit: pcs; Eaton catalogue number: 174284; Depth: 120 mm; Height: 1750 mm; Width: 250 mm; Weight: 14 kg.
Technical Specifications
- Manufacturer part number (MPN)
- XVTL-BP-F-85/18
- EAN / GTIN
- 4015081707461
- Sales unit
- pcs
- Eaton catalogue number
- 174284
- Depth
- 120 mm
- Height
- 1750 mm
- Width
- 250 mm
- Weight
- 14 kg
- Compliances
- RoHS conform
- Features
- Mounting plate depth-adjustable; EMC-version; Connectable
- Fitted with
- Mounting plate
- Pollution degree
- 3
- Surface finishing
- Powder coating
- Degree of protection
- IK10; Other
- Material quality
- Other
- Color
- Gray
- Permissible load of the mounting plate according to IEC 62208 - max
- 4000 N
- Number of locks
- 0
- RAL-number
- 7035
- Material
- Steel
- Mounting method
- Wall fastening
- Overvoltage category
- IV
- Installation type
- Floor standing wall model
- Protection class
- I
- Number of covers/doors
- 0
- Suitable for
- Metrical mounting
- Permissible load of the enclosure according to IEC 62208 - max
- 5000 N
- Permissible load of the door(s) according to IEC 62208 - max
- 1000 N
- Number of connector holes
- 0
- Colour
- Grey
- With mounting plate
- No
- Suitable for wall mounting
- Yes
- Pre-stamping
- No
- EMC-version
- Yes
- With glazed door
- No
- Couplable
- Yes
- Impact strength
- IK10
- Suitable for outdoor set-up
- No
- Suitable for metrical mounting
- No
- Mounting plate depth-adjustable
- Yes
- Connectable
- Yes
- With ventilation door
- No
- Wall fastening possible
- Yes
- With rear door
- No
- Suitable for wall built-in
- No
- With cover
- No
- With door
- No
- Pitched roof
- No
- Pole fastening
- No
- Transparent cover
- No
- Suitable for outdoor installation
- No
- Max. permitted load of the enclosure according to IEC 62208
- 5000 N
- Max. permitted load of the door(s) according to IEC 62208
- 1000 N
- Floor standing wall model
- Yes
- Freestanding
- No
- Corner model
- No
- Intermediate mounting
- No
- Country of origin
- Czechia
Standards & Compliance
- HS Code
- 8538.10
Cross References
- EAN 4015081707461
- SAP 1200299512
- Code 82270457
