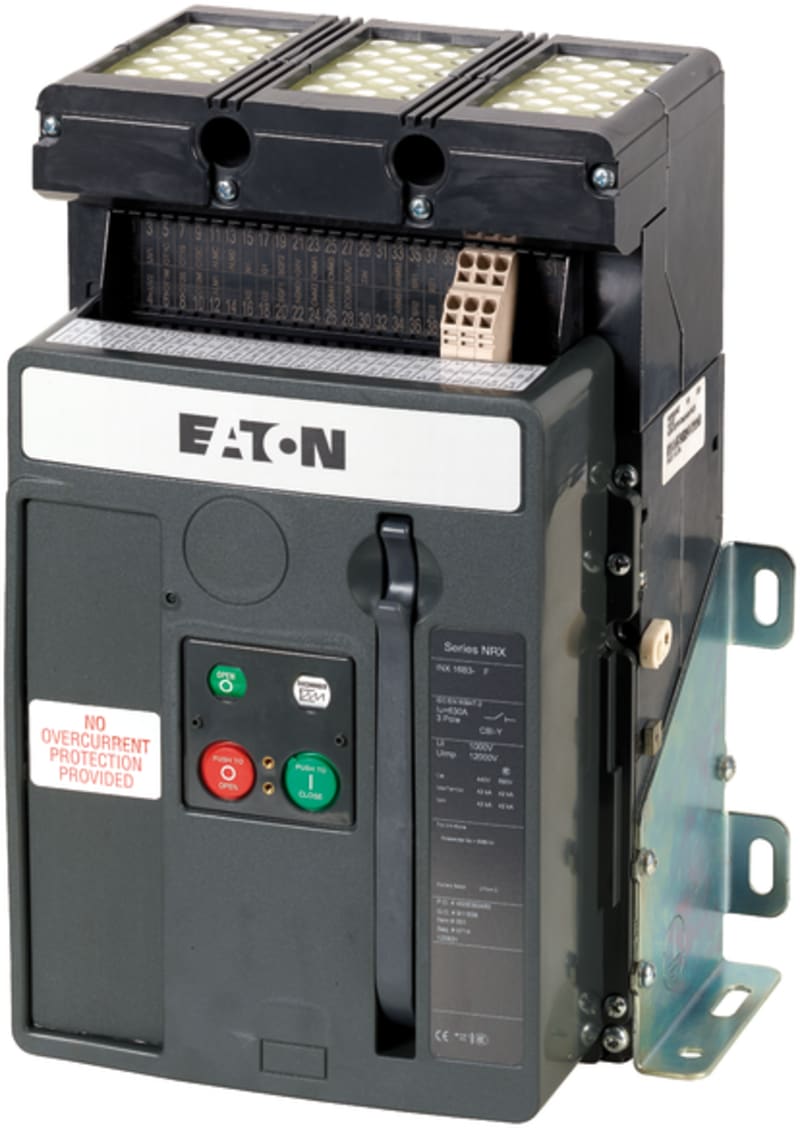

Eaton INX16B3-12F-1

Eaton INX16B3-12F-1 is listed under Switchgear & Protection / Disconnect Switches. Sales unit: pcs; Eaton catalogue number: 183450; Depth: 584 mm; Height: 597 mm; Width: 521 mm; Weight: 18.715 kg.

Manufacturer part number (MPN)

INX16B3-12F-1

EAN / GTIN

4015081791866

Sales unit

pcs

Eaton catalogue number

183450

Depth

584 mm

Height

597 mm

Width

521 mm

Weight

18.715 kg

Compliances

IEC; IEC/EN 60947; RoHS conform

Functions

Voltage release optional; Interlockable

Amperage Rating

1250 A

Features

Version as main switch; Motor drive optional; Version as maintenance-/service switch

Frame

INX16

Number of poles

Three-pole

Release system

Without releases

Suitable for

Intermediate mounting; Ground mounting; Distribution board installation

Type

Air circuit breakers/switch-disconnector Open switch-disconnector

Used with

Air circuit breakers/switch-disconnector; Open switch-disconnector

Ambient operating temperature - max

70 °C

Ambient storage temperature - max

70 °C

Ambient operating temperature - min

-25 °C

Ambient operating temperature details

-20 °C - 70 °C

Ambient storage temperature - min

-40 °C

Equipment heat dissipation, current-dependent

132 W

Heat dissipation at rated current with fixed mounting

132 W

Rated operational current for specified heat dissipation (In)

1250 A

Actuator type

Push button

Closing delay via spring release

25 ms

Direction of incoming supply

As required

Electrical connection type of main circuit

Rail connection

Lifespan, electrical

10000 operations (switching capacity); 20000 operations (switching cycles ON/OFF, with maintenance)

Number of standard mechanical operations per hour - max

60

Overvoltage category

III

Pollution degree

3

Rated conditional short-circuit current (Iq)

88 kA

Rated impulse withstand voltage (Uimp)

12 kV AC

Rated insulation voltage (Ui)

1000 V

Rated operating voltage (Ue) - max

690 V

Rated operating voltage (Ue) - min

690 V

Rated operating voltage (Ue) at AC - max

690 V

Rated permanent current at AC-23, 400 V

1250 A

Rated short-circuit making capacity up to 440 V, 50/60 Hz

88 kA

Rated short-circuit making capacity up to 690 V, 50/60 Hz

88 kA

Rated short-time withstand current (Icw)

42 kA

Rated short-time withstand current (t = 1 s)

42 kA

Rated uninterrupted current (Iu)

1250 A

Rated uninterrupted current (Iu) at 50°C

1250 A

Rated uninterrupted current (Iu) at 60°C

1250 A

Rated uninterrupted current (Iu) at 70°C

1250 A

Utilization category

B

Voltage rating at AC

690 V AC

Actuator color

Green

Degree of protection

IP31 with door seals; IP55 with protective cover; NEMA Other

Degree of protection (front side)

IP31

Device construction

Built-in device fixed built-in technique

Housing material

Plastic

Lifespan, mechanical

12500 switching cycles (ON/OFF); 25000 operations (switching capacity, with maintenance)

Mounting Method

Fixed

Number of auxiliary contacts (change-over contacts)

2

Number of auxiliary contacts (normally closed contacts)

0

Number of auxiliary contacts (normally open contacts)

0

Number of switches

1

Position of connection for main current circuit

Back side

Protection

None

Terminal capacity (copper bar)

5 mm x 80 mm (2x) for fixed mounting (black)

Country of origin

China

HS Code

8536.20
