Eaton
ISOLERSTOFFKAPSL.120X200X160MM (CI-K3-160-TS)
Part numberCI-K3-160-TSEAN / GTIN4015082068851HS code8538.90
Electrical Components
Circuit Breaker Accessories
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Eaton CI-K3-160-TS Isolerstoff enclosure with clear cover and grey base.
Technical Specifications
- Manufacturer part number (MPN)
- CI-K3-160-TS
- EAN / GTIN
- 4015082068851
- Sales unit
- pcs
- Eaton catalogue number
- 206885
- Depth
- 160 mm
- Height
- 222 mm
- Width
- 120 mm
- Weight
- 0.58 kg
- Certifications
- IEC 60068-2-11; DIN EN 62208; IEC/EN 60529; UL94: HB; UL94: VO/1.5 mm thickness
- Catalog Notes
- Lamp indicator L‐… can be mounted in base knock-out M20/M25
- Type
- Basic enclosure
- Features
- UV resistance beneath protective shield; Halogen free
- Fitted with
- Mounting rail to IEC/EN 60715; Control cable entry
- Climatic proofing
- Damp heat, cyclic, to IEC 60068-2-30; Damp heat, constant, to IEC 60068-2-78
- Enclosure material
- 1 Ω x 10¹³ (Surface resistance to IEC 60093); Plastic
- Ambient operating temperature - max
- 70 °C
- Ambient operating temperature - min
- -25 °C
- Heat dissipation capacity Pdiss
- 25.5 W
- Mounting depth
- 128 mm
- Mounting weight capacity - max
- 0.85 kg
- Product category
- Empty enclosures
- Enclosure color
- Light gray, Cover (RAL 7035); Light gray, Operator (RAL 7035); Black (RAL 9005)
- Cover material
- Glass-fiber reinforced polycarbonate
- Degree of protection
- IP65; NEMA Other
- Model
- Surface mounting
- Dielectric strength
- 30 kV/mm, according to IEC 60243-1
- Degree of protection (front side)
- IP65
- Temperature resistance
- -40 - 120 °C (enclosure); -40 - 80 °C (gasket)
- Suitable for
- Emergency stop
- Flammability characteristics
- 650 °C/1 mm thick (push-through membrane) to VDE 0471 Part 2); 960 °C/1 mm thickness (base, cover; glow wire to VDE 0471 Part 2)
- Knockouts
- Hard knockout version; Metric cable entry knockouts at the top, bottom and back plate
- Impact resistance
- IK06 (according to EN 50102)
- Radiated heat dissipation with separate mounting
- 25.5 W (at an ambient temperature of 20 °C)
- Surface treatment
- Resistant to corrosion
- Track resistance
- CTI 175 (base, to IEC 60112); CTI 175 (cover, to IEC 60112)
- Water consumption
- 0.29 % (According to DIN EN ISO 62)
- Dimensions
- 120×200×160 mm
- With transparent cover
- No
- Suitable for emergency stop
- Yes
- Housing material
- Plastic
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 4015082068851
- SAP 1000012114
- Code 8111089
Product Documentation
Document preview: ISOLERSTOFFKAPSL.120X200X160MM (CI-K3-160-TS) — Specification Data Sheet (OEM)
More from Eaton
Eaton
Enclosure 750X375X225 CLEAR
078896
Eaton
Residual current circuit breaker 16/2/05-A
170281
Eaton
VOLTM. Selector switch
T0-3-8007/E
Eaton
Eaton CWIZ-04/M7 Four-Field Rocker with Symbols, Alpine White Matt
CWIZ-04/m7
Eaton

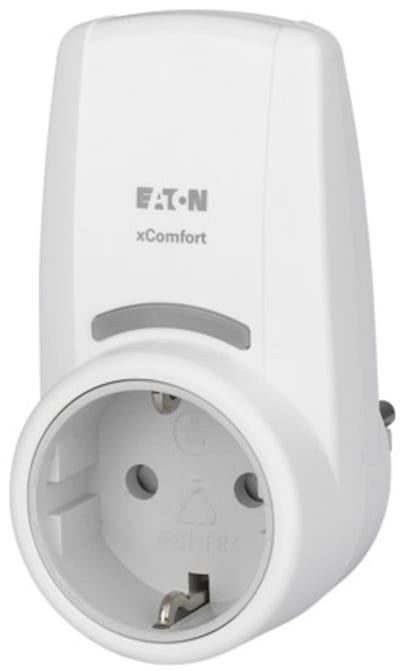

xComfort Plug-In Heating Actuator 12 A, White
