Eaton

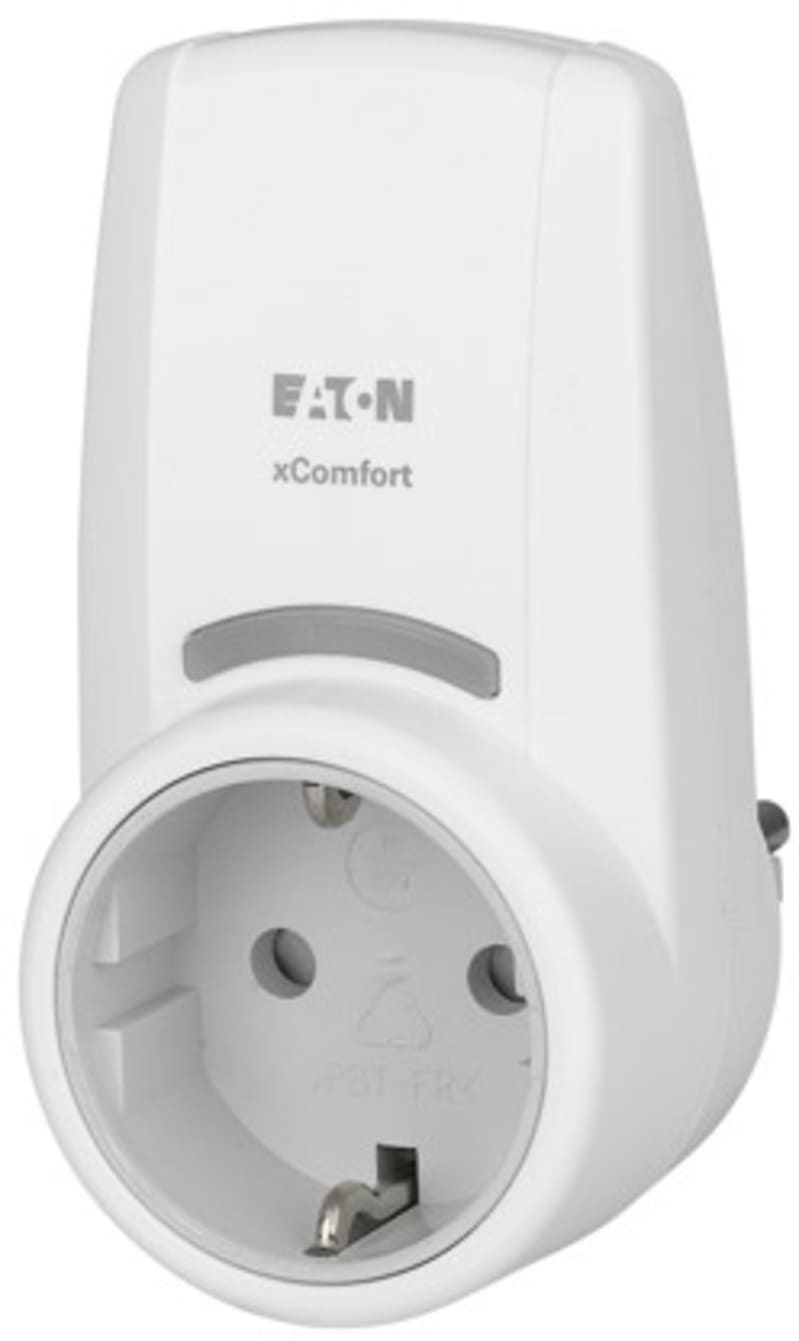

xComfort Plug-In Heating Actuator 12 A, White
Part numberCHAP-01/F5-12EEAN / GTIN9010238075580HS code8536.90
Electrical Components
Home Automation
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Eaton xComfort CHAP-01/F5-12E plug-in heating actuator, 12 A, white — plugs into the wall socket and switches an electric panel heater wirelessly from xComfort room controllers; pack of 20.
Technical Specifications
- Manufacturer part number (MPN)
- CHAP-01/F5-12E
- EAN / GTIN
- 9010238075580
- Sales unit
- pcs
- Package quantity
- 20 pcs
- Eaton catalogue number
- 195176
- Depth
- 100.3 mm
- Height
- 76 mm
- Width
- 52 mm
- Weight
- 0.167 kg
- Compliances
- RoHS conform
- Features
- Radio frequent bidirectional
- Bus system operating type
- Radio frequent; Other
- Actuation function
- Heating, valves
- Bus system product type
- Actuator
- Number of inputs (binary)
- 0
- Rated uninterrupted current (Iu) - max
- 16 A
- Fitted with
- Bus connection
- Switching voltage - max
- 253 V
- Switching voltage - min
- 196 V
- Width in number of modular spacings
- 0
- Power supply
- Mains
- Color
- Traffic white (RAL 9016)
- Number of outputs
- 1
- Degree of protection
- IP20
- Output current - max
- 12 A
- Functions
- Valve protection function; Manual switch; Correcting variable consistent
- Mounting method
- Plugged-in; Surface mounted (plaster)
- Number of linkable devices
- 32
- Bus system KNX Secure
- No
- Bus system KNX Secure-RF (Radio Frequency)
- No
- Bus system KNX
- No
- Bus system KNX-RF (Radio Frequency)
- No
- Bus system radio frequency
- Yes
- Bus system LON
- No
- Bus system Powernet
- No
- Radio frequency bidirectional
- Yes
- With bus connection
- Yes
- Bus module detachable
- No
- Correcting variable consistent
- Yes
- Correcting variable switching
- No
- Valve protection function
- Yes
- Manual switch
- Yes
- Max. switching current (resistive load)
- 16 A
- Max. output current
- 12 A
- Switching voltage
- 196–253 V
- Country of origin
- Czechia
- Min. depth of built-in installation box
- 0 mm
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 9010238075580
- SAP 1200126825
- Code 81988113
Product Documentation
Document preview: Pluggable Varmeakt. 12A, White (CHAP-01/F5-12E) — Specification Data Sheet (OEM)
