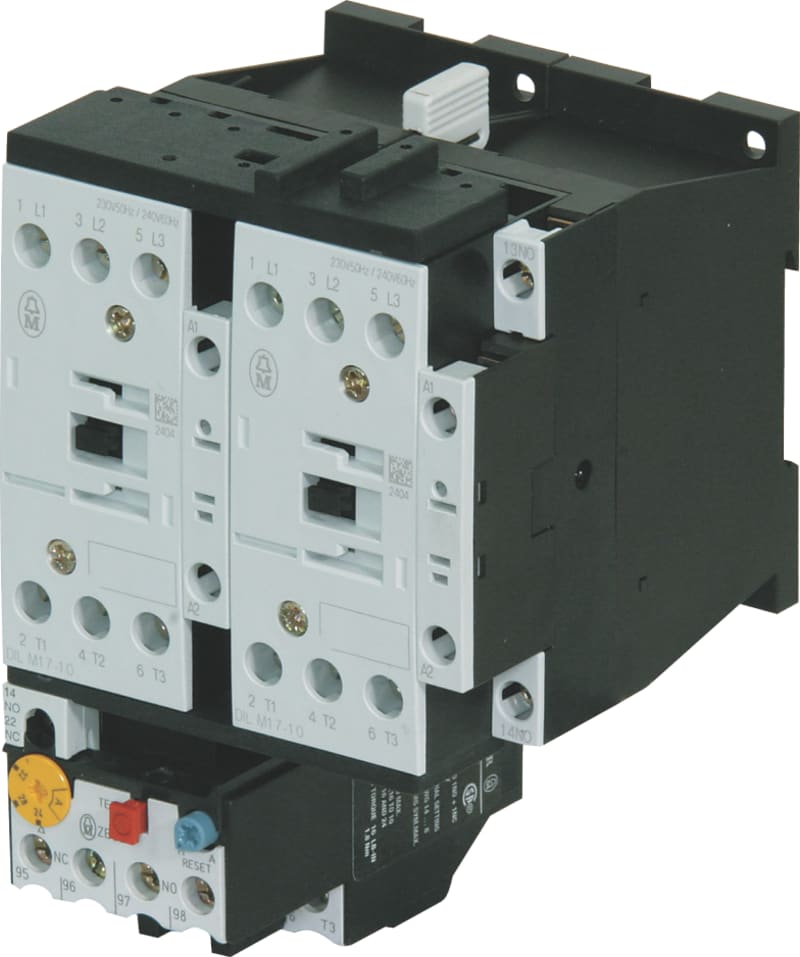

Direction of rotation, DIULM12/21(230V50HZ) (DIULM12/21(230V50HZ,240V60HZ))

Eaton DIULM12/21(230V50HZ,240V60HZ) DIULM12/21(230V50HZ,240V60HZ).

Manufacturer part number (MPN)

DIULM12/21(230V50HZ,240V60HZ)

EAN / GTIN

4015082781118

Sales unit

pcs

Eaton catalogue number

278111

Depth

117 mm

Height

68 mm

Width

90 mm

Weight

0.597 kg

Compliances

CE Marked; RoHS Compliant

Certifications

CSA Certified; UL Listed; IEC/EN 60947-4-1; UL Category Control No.: NLDX; UL File No.: E29096; CSA Class No.: 2411-03

3211-04; UL 60947-4-1; CE; CSA File No.

012528; CSA-C22.2 No. 60947-4-1-14; IEC 60947-4-1; EN 60947-4-1; UL; CSA

Ambient operating temperature - max

60 °C

Ambient storage temperature - max

80 °C

Ambient operating temperature - min

-25 °C

Ambient operating temperature (enclosed) - max

40 °C

Ambient operating temperature (enclosed) - min

-25 °C

Ambient storage temperature - min

-40 °C

Number of main contacts (normally open contact)

6

Number of auxiliary contacts (normally closed contacts)

0

Number of auxiliary contacts (normally open contacts)

2

Number of contacts

2 NO 1 NC

Number of contacts (normally closed) as main contact

0

Equipment heat dissipation, current-dependent Pvid

1.5 W

Heat dissipation per pole, current-dependent Pvid

0.5 W

Rated operational current for specified heat dissipation (In)

12 A

Static heat dissipation, non-current-dependent Pvs

1.4 W

Rated insulation voltage (Ui)

690 V

Rated operational current (Ie) at AC-1, 380 V, 400 V

415 V

12 A

Rated operational current (Ie) at AC-3, 380 V, 400 V

Rated operational power at AC-3, 380/400 V

50 Hz

5.5 kW

Rated operational power at AC-3, 690 V

50 Hz

6.5 kW

Rated operational power at AC-4, 220/230 V

50 Hz

2 kW

Rated operational power at AC-4, 660/690 V

50 Hz

4.4 kW

Interference immunity

According to EN 60947-1

Features

Mechanical interlock

Functions

Reversing safety

Number of poles

Three-pole

Application

Contactor combinations for starting motors with two directions of rotation

Connection

Screw terminals

Degree of protection

IP20; NEMA Other

Overvoltage category

III

Pollution degree

3

Product category

Contactor combinations

Suitable for

Also motors with efficiency class IE3

Type

Full voltage reversing contactor

Utilization category

AC-4: Normal AC induction motors: starting, plugging, reversing, inching; AC-3: Normal AC induction motors: starting, switch off during running

Voltage type

AC

Frame size

45 mm

Coil voltage

230-240 Vac, 50/60 Hz

Duty factor

100 %

Rated control supply voltage (Us) at AC

50 Hz - max

230 V

Rated control supply voltage (Us) at AC

50 Hz - min

230 V

Rated control supply voltage (Us) at AC

60 Hz - max

240 V

Rated control supply voltage (Us) at AC

60 Hz - min

240 V

Power consumption

5.5 kW

Terminals

Screw terminals

Rated operation power at AC-3, 400 V

5.5 kW

Number of normally open contacts as main contact

6

Number of auxiliary contacts as normally open contact

2

Rated operation current Ie at AC-3, 400 V

12 A

Rated operation current Ie at AC-1, 400 V

12 A

Suitable for rail mounting

No

Rated control supply voltage AC 50 Hz

230 V

Rated control supply voltage AC 60 Hz

240 V

Type of electrical connection of main circuit

Screw connection

Operating voltage AC 50 Hz

24–690 V

Operating voltage AC 60 Hz

24–690 V

Voltage type for actuating

AC

Rated operation power NEMA

7.4 kW

Country of origin

Romania

HS Code

8536.49
