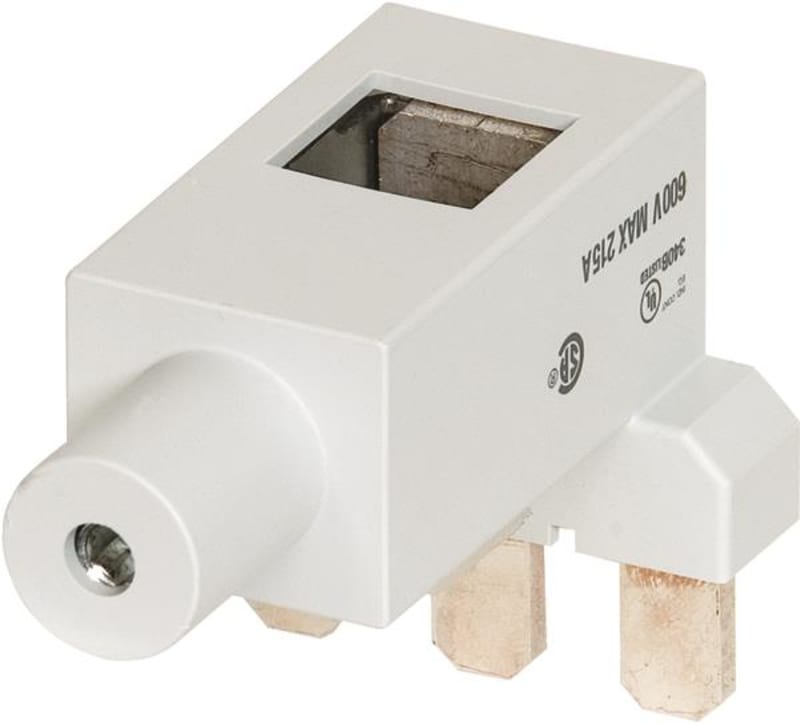

Parallellconnection DILM65-XP1

Eaton DILM65-XP1 Parallellkobling, for DILM40-65.

Manufacturer part number (MPN)

DILM65-XP1

EAN / GTIN

4015082811952

Sales unit

pcs

Eaton catalogue number

281195

Depth

77 mm

Height

53 mm

Width

47 mm

Weight

0.24 kg

Certifications

CSA File No.: 012528; UL 508; UL File No.: E29096; IEC/EN 60947-4-1; UL; UL Category Control No.: NLDX; CE; CSA Class No.: 3211-03; CSA-C22.2 No. 14-05; CSA

Catalog Notes

AC1 current carrying capacity of the open contactor increases by a factor of 2.5

Ambient operating temperature - max

60 °C

Ambient operating temperature - min

-25 °C

Conventional thermal current Ith of main contacts (1-pole, open)

180 A

Equipment heat dissipation, current-dependent Pvid

1.5 W

Heat dissipation per pole, current-dependent Pvid

0.5 W

Rated operational current for specified heat dissipation (In)

215 A

Accessory/spare part type

Connecting bridge

Product category

Accessories

Protection

Protected against accidental contact in accordance to VDE 0106 part 100

Screw size

5 mm AF, Hexagon socket-head spanner, Terminal screw

Terminal capacity

1 x (16 - 120) mm², stranded, Main cables; 1 x (16 - 120) mm², flexible with ferrule, Main cables; 16 mm², solid

Tightening torque

14 Nm, Screw terminal

Type of accessory/spare part

Connecting bridge

Accessory

Yes

Spare part

No

Country of origin

Germany

HS Code

8538.90

• EAN 4015082811952
• SAP 1000768564
• Code 81171837
