Contactor DILM12-10(12VDC)

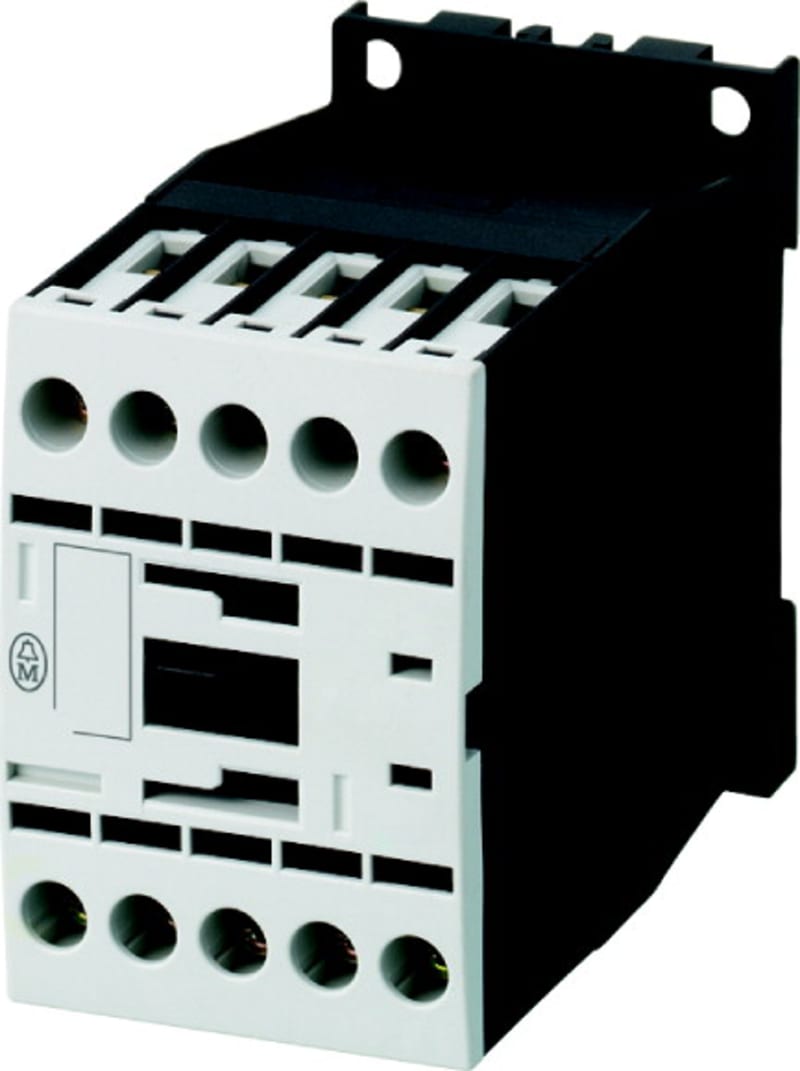

Eaton DILM12-10(12VDC) DILM12 - Contactor 12 VDC incl. 1NO.

Manufacturer part number (MPN)

DILM12-10(12VDC)

EAN / GTIN

4015082768447

HS code

8536.90

Sales unit

pcs

Eaton catalogue number

276844

Depth

75 mm

Height

68 mm

Width

45 mm

Weight

0.296 kg

Certifications

UL 508; IEC/EN 60947-4-1; CSA-C22.2 No. 14-05; UL File No.: E29096; CSA; UL; CE; CSA File No.: 012528; IEC/EN 60947; CSA Class No.: 2411-03

3211-04; VDE 0660; UL Category Control No.

NLDX

Catalog Notes

Contacts according to EN 50012

Altitude

Max. 2000 m

Ambient operating temperature - max

60 °C

Ambient storage temperature - max

80 °C

Ambient operating temperature - min

-25 °C

Ambient operating temperature (enclosed) - max

40 °C

Ambient operating temperature (enclosed) - min

-25 °C

Ambient storage temperature - min

-40 °C

Climatic proofing

Damp heat, constant, to IEC 60068-2-78; Damp heat, cyclic, to IEC 60068-2-30

Connection to SmartWire-DT

No

Number of main contacts (normally open contact)

3

Number of auxiliary contacts (normally closed contacts)

0

Number of auxiliary contacts (normally open contacts)

1

Number of contacts (normally closed contacts)

0

Number of contacts (normally open contacts)

1

Number of contacts (normally closed) as main contact

0

Conventional thermal current Ith (1-pole, enclosed)

45 A

Conventional thermal current Ith (3-pole, enclosed)

18 A

Conventional thermal current Ith at 55°C (3-pole, open)

21 A

Conventional thermal current Ith at 60°C (3-pole, open)

20 A

Conventional thermal current Ith of main contacts (1-pole, open)

50 A

Equipment heat dissipation, current-dependent Pvid

1.5 W

Heat dissipation capacity Pdiss

0 W

Heat dissipation per pole, current-dependent Pvid

0.5 W

Rated operational current for specified heat dissipation (In)

12 A

Static heat dissipation, non-current-dependent Pvs

4.5 W

Rated breaking capacity at 220/230 V

120 A

Rated breaking capacity at 380/400 V

120 A

Rated breaking capacity at 500 V

100 A

Rated breaking capacity at 660/690 V

70 A

Rated insulation voltage (Ui)

690 V

Rated making capacity up to 690 V (cos phi to IEC/EN 60947)

168 A

Rated operational current (Ie) at AC-1, 380 V, 400 V

415 V

22 A

Rated operational current (Ie) at AC-3, 220 V, 230 V

240 V

12 A

Rated operational current (Ie) at AC-3, 380 V, 400 V

415 V

12 A

Rated operational current (Ie) at AC-3

440 V

12 A

Rated operational current (Ie) at AC-3

500 V

10 A

Rated operational current (Ie) at AC-3, 660 V

690 V

7 A

Rated operational current (Ie) at AC-4, 220 V, 230 V

240 V

7 A

Rated operational current (Ie) at AC-4

440 V

7 A

Rated operational current (Ie) at AC-4

500 V

6 A

Rated operational current (Ie) at AC-4, 660 V

690 V

5 A

Rated operational current (Ie) at DC-1

110 V

20 A

Rated operational current (Ie) at DC-1

220 V

15 A

Rated operational current (Ie) at DC-1

60 V

20 A

Rated operational power at AC-3, 240 V

50 Hz

4 kW

Rated operational power at AC-3, 380/400 V

50 Hz

5.5 kW

Rated operational power at AC-3, 415 V

50 Hz

7 kW

Rated operational power at AC-3, 440 V

50 Hz

7.5 kW

Rated operational power at AC-3, 500 V

Rated operational power at AC-3, 690 V

50 Hz

6.5 kW

Rated operational power at AC-4, 220/230 V

50 Hz

2 kW

Rated operational power at AC-4, 240 V

50 Hz

2.2 kW

Rated operational power at AC-4, 415 V

50 Hz

3.4 kW

Rated operational power at AC-4, 440 V

50 Hz

3.6 kW

Rated operational power at AC-4, 500 V

50 Hz

3.5 kW

Rated operational power at AC-4, 660/690 V

50 Hz

4.4 kW

Rated operational voltage (Ue) at AC - max

690 V

Emitted interference

According to EN 60947-1

Interference immunity

According to EN 60947-1

Fitted with

Varistor suppressor circuit

Number of poles

Three-pole

Application

Contactors for Motors

Connection

Screw terminals

Degree of protection

IP20

Lifespan, mechanical

10,000,000 Operations (DC operated)

Operating frequency

9000 mechanical Operations/h (DC operated)

Overvoltage category

III

Pollution degree

3

Product category

Contactors

Protection

Finger and back-of-hand proof, Protection against direct contact when actuated from front (EN 50274)

Rated impulse withstand voltage (Uimp)

8000 V AC

Resistance per pole

4.6 mΩ

Suitable for

Also motors with efficiency class IE3

Utilization category

AC-4: Normal AC induction motors: starting, plugging, reversing, inching; AC-1: Non-inductive or slightly inductive loads, resistance furnaces; AC-3: Normal AC induction motors: starting, switch off during running

Voltage type

DC

Frame size

FS1

Arcing time

10 ms

Drop-out voltage

At least smoothed two-phase bridge rectifier or three-phase rectifier; 0.6 - 0.15 x UC, DC operated

Duty factor

100 %

Pick-up voltage

0.8 - 1.1 V DC x Uc; 0.85 - 1.1 V DC x Uc (only with auxiliary contact module with 3 or more N/C contacts)

Power consumption (pick-up) at DC

4.5 W

Power consumption (sealing) at DC

4.5 W

Rated control supply voltage (Us) at DC - max

12 V

Rated control supply voltage (Us) at DC - min

12 V

HS Code

8536.90

• EAN 4015082768447
• SAP 1000076553
