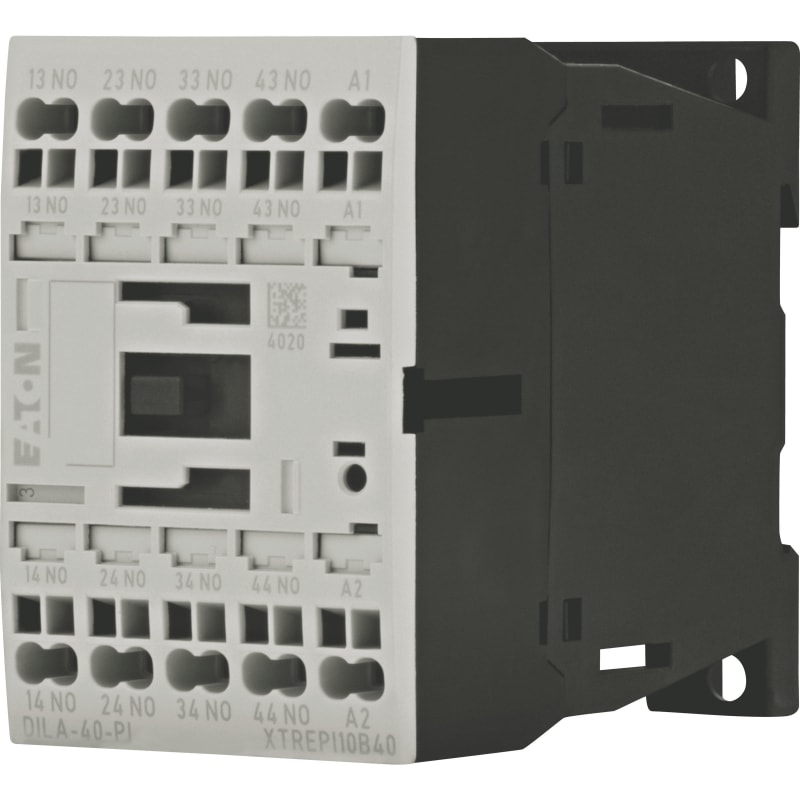

Contactor,DILA-40(24VDC)-PI

Eaton DILA-40(24VDC)-PI Contactor, 24 V DC, 4 N/O, Push in terminals, DC drift.

Manufacturer part number (MPN)

DILA-40(24VDC)-PI

EAN / GTIN

4015081972920

HS code

8536.90

Sales unit

pcs

Eaton catalogue number

199208

Depth

75 mm

Height

68 mm

Width

45 mm

Weight

0.287 kg

Certifications

IEC/EN 60947; EN 60947-5-1; VDE 0660; CSA File No.: 012528; CSA Class No.: 3211-03; UL File No.: E29184; UL 508; CSA-C22.2 No. 14-05; CE marking; UL Category Control No.: NKCR; UL; CSA

Ambient operating temperature - max

60 °C

Ambient storage temperature - max

80 °C

Ambient operating temperature - min

-25 °C

Ambient operating temperature (enclosed) - max

40 °C

Ambient operating temperature (enclosed) - min

25 °C

Climatic proofing

Damp heat, constant, to IEC 60068-2-78; Damp heat, cyclic, to IEC 60068-2-30

Connection to SmartWire-DT

In conjunction with DIL-SWD SmartWire DT contactor module; Yes

Code number

40E

Control circuit reliability

λ < 5 x 10-7 (1 failure at 2,000,000 operations for Uₑ = 24 V DC, Umin = 17 V, Imin = 5.4 mA); λ < 5 x 1/10⁷ (1 failure at 2,000,000 operations for Uₑ = 24 V DC, Umin = 17 V, Imin = 5.4 mA)

Number of auxiliary contacts (change-over contacts)

0

Number of auxiliary contacts (normally closed contacts)

0

Number of auxiliary contacts (normally open contacts)

4

Number of contacts (normally closed contacts)

0

Number of contacts (normally open contacts)

4

Equipment heat dissipation, current-dependent Pvid

0 W

Heat dissipation capacity Pdiss

0 W

Rated insulation voltage (Ui)

690 V

Rated operational current (Ie) at AC-15, 220 V, 230 V, 240 V

4 A

Rated operational current (Ie) at AC-15, 380 V, 400 V, 415 V

4 A

Rated operational current (Ie) at AC-15, 500 V

1.5 A

Rated operational voltage (Ue) at AC - max

690 V

Safe isolation

400 V AC, Between auxiliary contacts, According to EN 61140; 400 V AC, Between coil and auxiliary contacts, According to EN 61140

Short-circuit protection rating without welding

10 A gG/gL, 500 V, Max. Fuse, Contacts

Switching capacity (auxiliary contacts, general use)

15 A, 600 V AC, (UL/CSA); 1 A, 250 V DC, (UL/CSA)

Switching capacity (auxiliary contacts, pilot duty)

A600, AC operated (UL/CSA); P300, DC operated (UL/CSA)

Features

Positive operating contacts to EN 60947-5-1 appendix L, including auxiliary contact module

Fitted with

Built-in suppressor circuit; Varistor suppressor circuit; Positive operation contacts; Suppressor circuit

Application

Contactor relays

Connection

Push in terminals

Degree of protection

IP20

Lifespan, mechanical

20,000,000 Operations (DC operated)

Mounting method

DIN-rail/screw

Operating frequency

9000 Operations/h

Overvoltage category

III

Pollution degree

3

Product category

DILA relays

Protection

Finger and back-of-hand proof, Protection against direct contact when actuated from front (EN 50274)

Rated impulse withstand voltage (Uimp)

6000 V AC

Shock resistance

5 g, N/C auxiliary contact, Basic unit with auxiliary contact module, Mechanical, according to IEC/EN 60068-2-27, Half-sinusoidal shock 10 ms; 7 g, N/O auxiliary contact, Basic unit with auxiliary contact module, Mechanical, according to IEC/EN 60068-2-27, Half-sinusoidal shock 10 ms

Voltage type

DC

Duty factor

100 %

Pick-up voltage

0.8 - 1.1 V DC x Uc; 0.7 - 1.3 V DC x Uc (at 24 V: without auxiliary contact module and at ambient air temperature + 40 °C)

Rated control supply voltage (Us) at DC - max

24 V

Rated control supply voltage (Us) at DC - min

24 V

Switching time (DC operated, make contacts, closing delay) - max

31 ms

Switching time (DC operated, make contacts, opening delay) - max

12 ms

Voltage tolerance

Smoothed DC, three-phase bridge rectifiers or smoothed double-wave rectification

Screwdriver size

3.0 x 0.5 mm, Terminal screw

Stripping length (main cable)

10 mm

Terminal capacity (flexible with ferrule)

2 x (0.5 - 1.5) mm²; 1 x (0.5 - 2.5) mm²

Terminal capacity (solid)

1 x (0.5 - 2.5) mm²; 2 x (0.5 - 2.5) mm²

Terminal capacity (solid/stranded AWG)

20 - 14

Terminal capacity (flexible)

1 x (0.5 - 2.5) mm²; 2 x (0.5 - 2.5) mm²

HS Code

8536.90

• EAN 4015081972920
• SAP 1200693334
• Code 83537176
